National Standard UHF RFID Integrated Card Reader and Writer

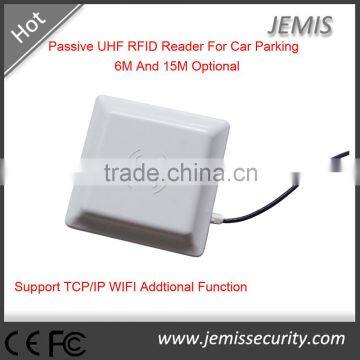

JM-0702 is a High Performance UHF integrated reader for long range operation. Compact Reader with integrated 8dBi circular polarized UHF
Far Field antenna,.Based on proprietary efficient digital signal processing algorithm,the reader is capable of up to 6m Read Range and 3m Write
Range.The reader operates in frequency range of 902MHz~928MHz design to read ISO18000-6C and ISO18000-6B protocol ID Tag.The reader can

be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.

FEATURES

1. Self-intellectual property;

2. Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

3. 902 ~928MHz frequency band(frequency customization optional);

4. FHSS or Fix Frequency transmission;

5. RF output power up to 30dbm(adjustable);

6. 12dbi antenna optional with effect distance up to 15m^*;

7. Support auto-running, interactive and trigger-activating work mode;

8. Low power dissipation with single +9 DC power supply;

9. Support RS232, RS485, Wiegand interface;

* Effective distance depends on antenna, tag and environment.

Area of Application:

Automotive and Transportation                Supply Chain and Super Mart
Parking lot Management                          School, Library
Contact-less Payment                               Logistic Management
Boarder and Access Control                     Asset Tracking
Time&Attendance Management              Anti-counterfeit

Farm and Animal Tracking                        Club and Hospital

Specification:
