Home > Products > Conveying machine > Sand Screw Conveyor
Sand Screw Conveyor
- Qingdao
- T/T Money Gram Credit Card
You May Like
Product Details
| Type | Screw Conveyor | |||
| Material | Other, Carbon steel | Material Feature | Heat Resistant | |
| Structure | Conveyor System | Place of Origin | Henan, China | |
| Brand Name | Better | Model Number | LSY163 | |
| Power(W) | 7.5kw | Certification | ISO | |
| After-sales Service Provided | No overseas service provided |
Product Description
LSY series sand screw conveyor is suitable for conveying the powder, granular, small size such as clay, coal, cement, sand, grain, pebbles, iron scraps etc, especially for concrete mixing station conveyor from the cement silo to mixer or from cement silo to batching machine. Its feature is high rotation speed, using seamless pipes and connected by flanges, easy installation and operation, light weight, good sealing performance, high transmission efficiency, compact structure etc.
sand screw conveyor parameter
Model | LSY163 | LSY180 | LSY230 |
Spirl nominal | 163mm | 180mm | 230mm |
Screw conveyor length | 2-12m | 2-13m | 2-15m |
Spindle speed | 310r/min | 310r/min | 240r/min |
Shell diameter | 194*6mm | 219*8mm | 273*8mm |
Working angle | 0-60° | 0-60° | 0-60° |
Working ability | 35t/h | 45t/h | 65t/h |
Motor model | Y132M-4 | Y160L-6 | Y160L-4 |
Power | 7.5kw | 11kw | 15kw |

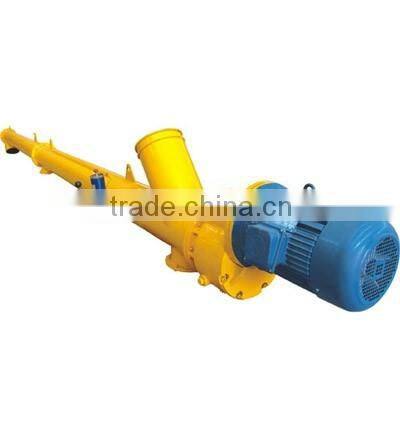

sand screw conveyor picture
