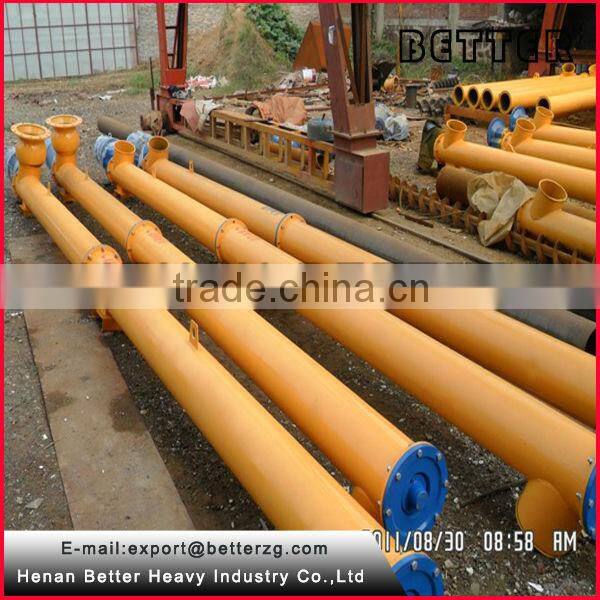

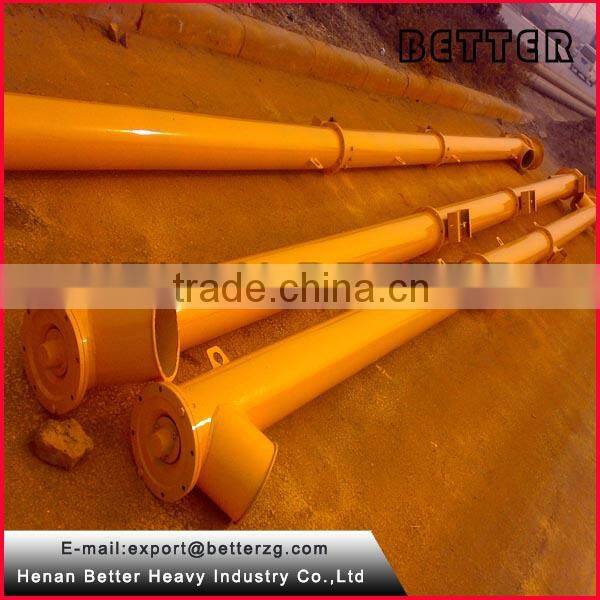

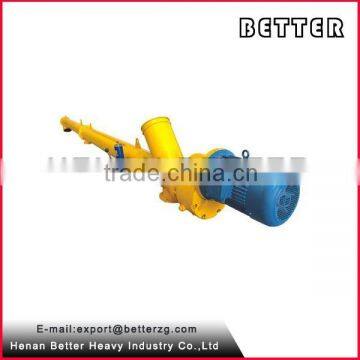

Henan Better LSY Mini Conveyor

Name: Henan Better LSY Mini Conveyor
Brand: Better
Availability: InStock

FOB Price

US$ 1 - 10,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Screw Conveyor
Material	Aluminium	Material Feature	Heat Resistant
Structure	Conveyor System	Load Capacity	80t/h
Place of Origin	Henan, China	Brand Name	Better
Model Number	LSY	Voltage	380v
Power(W)	3kw	Dimension(LWH)	8m
Certification	ISO9001	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1.high quality mini conveyor
2.use for cement conveyor
3.Gemany and Italy design
4.long working life
5.high efficience

Better's Product

Better LSY mini conveyor advantages:

1.The screw conveyor machine process layout flexibility, free mobile, fixed without foundation, and can be horizontal, inclined arrangement, can be continuous conveyor.

2.This equipment is good sealing performance, no dust leakage, bearing using the new material, with the role of self-lubricating wear-resistant, and therefore in the long-term use without refueling

3.LSY series screw conveyor (auger) is with the advent of concrete mixing station produced.

4. LS-Y-type screw conveyor is based on the absorption of imported machines from Germany and Italy on the design and manufacture

Better LSY mini conveyor parameter:

Model	LSY196	LSY219	LSY273	LSY325
Metric diameter of screw(mm)	163	180	230	325
Length of screw conveyor(m)	2.5-6	4.5-12	6-9	6-9
Rotary speed of main axle	100	209	209	174
External case diameter(mm)	194	219	273	325
Woking angle	0-60	0-60	0-60	0-60
Conveying capacity(t/h)	25	25	50	75
Model of motor	Y132M-4	Y160L-4	Y160L-4	Y160L-3
Power of motor	3-7.5kw	4-11kw	7.5-11kw	11-18.5kw

LSY series screw conveyor (cement conveyor) is a concrete mixing plant equipment transport cement, fly ash necessary equipment, while other areas such as: chemical, metallurgical, power plants and other systems will be eligible for a wider range of applications. One developed the first domestic manufacturer LS-Y-type screw conveyor. Basis of absorbing international advanced technology to design, develop. With 10 years of production experience, strong technical force, complete production equipment to ensure excellent quality.

IF ANY QUESTIONS,BETTER CALL BETTER!!!

HENAN BETTER

Henan Better Heavy Industry Co.,Ltd engaged in construction machinery for more than 10 years. The company has more than 200 employees, consist of the 40 years’ experience superior engineering as core of leadership and focus on R&D, production’s team work.Our products sell well all over the country and exported to the Outer Mongolia, Russian, Philippine,Macedonia,Tanzania, Cyprus etc and won overseas customer’s trust and good reputation.

Better Services

1.Pre-sale service:

We will give you suggestive productive technical processing in the prophase plan and manufacturer equipment based on your special demand.

2.Sale service:

If needed, our advanced technicians will be sent your jobsite to guild operation and installation. finish your job together.

3.After-sale service:

In order to keep our cooperating relationship on, we will send technicians to visit to you, making sure the products works normally.

4.We provide one-year warranty to make products works normally. we also offer lifelong service and wearable parts for you.(In addition to artificial damage)

FAQ

1.Where do your customers come from?

Our clients includes those Fortune 500 companies like China Water Agency, China Sinohydro Corporation, Henan Construction Engineering Co, China South-to-north Water Project and lots of cities and towns housing construction companies.

2.What about your International Market?

We have established overseas project in more than 19 countries and regions, just like Outer Mongolia, Russian, Philippine,Macedonia,Tanzania, Cyprus etc and won overseas customer’s trust and good reputation.

3.What is the payment term?

T/T L/C Paypal Western&Union cash

4.How to transport and install this production line equipment?

Containers or as your order.Use crane to load into the container,wire cable fastened inside the container,cork wood to forbid collision.

5.What are your main products?

(1)Concrete mixer plant,concrete mixer machine,JZC/JDC/JZM portable concrete mixer.

(2)Dry mortar mixer plant,dry mortar mixer machine,dry mortar mixer auxiliary equipment.

(3)Conrete batch plant,cement silo,sand dryer,sieving machine,bar straighting machine,control computer etc.

Transportation

Containers or as your order

1.Use crane to load into the container

2.Wire cable fastened inside the container

3.Cork wood to forbid collision
