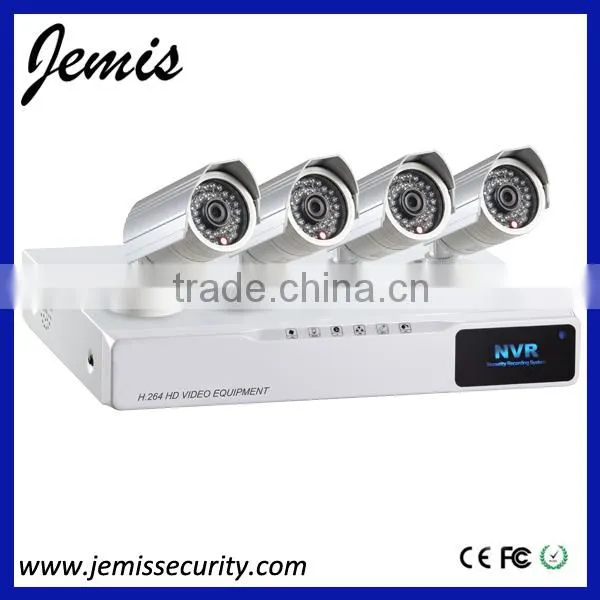

H.264 WIFI 4ch Realtime CMOS IP Camera NVR Kits (JM-4P-W)

Specifications

1.4CH Realtime NVR;
2.4piece CMOS IP Camera;
3.3.6mm Fixed lens;
4.Night Vision: 20M(36pcs leds).

H.264 WIFI 4ch Realtime CMOS IP Camera NVR Kits (JM-4P-W)

IP Camera:

Hi 3518C+ OV9712 ;

Dual stream encoding / H.264 compression mode ;

1/4"-inch OV9712 CMOS, 3.6mm fixed lens

Night vision :20m(36pcs leds) 1MP:1280*720

NVR :

Hi 3520A Support 4CH 720P/2CH 1080P realtime viewing and recording;

Support 4CH 720P/1CH 1080P playback;

Support 1CH BNC/VGA/HDMI output;

Support 1CH audio/alarm output;

USB*2; support 1 SATA HDD,max capacity 2T



IPS-Ki-K4 Specification
Video Compression	H.264
Video/Audio Channels	Type-port/Channel					Channel
Video Input	RJ45					1
Video Output	VGA					1
Audio Input	BNC					1
Audio Output	BNC					1
Alarm	N/A
PTZ	Yes
Remote Viewing Specifications
Network Interface	Rj45,10M/100M
Network Protocol	TCP/UDP/DHCP/DDNS/PPPOE/UPNP
Internet Viewing	Operating System				Browser			Software
	PC				IE 7/8/9/10			CMS View
	MAC				N/A			CMS View
# of Users	3 simultaneously
Mobile Phone Compatibility	Mobile Platform					Model#
	iPhone/iPad					iPhone OS 4.3 or above
	Android/Pad					Android Ver 2.3 or above
	Blackberry					Not at this time
	Symbian					Not at this time
	Windows					Not at this time
MAC/PC Compatibility	Platform			Browser			Software
	MAC			N/A			CMS View
	PC			IE7/8/9/10			CMS View
Control Management Software	MAC/PC						CMS View
Tablet Viewing	Yes
Camera Specification
Image Sensor	1/4 CMOS
Resolution	1280*720
Number of LEDs	36
Length of Night Vision	20M
Lens Type	3.6MM
Weatherproof Rating	IP63
Length of Cable	810MM
S/N Ration	>50DB
Minimum IIIumination	0.5LUX
Effective Pixels	1280*720
Power Supply	DC 12V
Operating Temperature	-10°-60°
Dimensions	Φ69*189MM(D*L)
Display Specifications
Display Frame Rate	30fps
Display Resolution	Type-Resolution					Resolution
	VGA					1280*720,640*480
Display Mode	Quad,Single Channels,Auto-switch and Hidden
Recording & Playback	Channel		Resolution			Recording				Playback
Recording Frame Rate	1 CH maximum	720P				30			30
		D1				30			30
	4 CH maximum	720P				30			30
		D1				30			30
Recording Resolution	720P:1280*720
	D1:640*480
Record Modes	Motion Activated, Continuous and Time Schedule
Playback Options	By Event and Date
Playback Mode	Multi-Channel(1/4)
System Information
Support SDD	1*2TB
Backup	USB2.0
Compatible OS for Software	Windows XP,Linux
Power Supply	DC 12V/2A
NVR Dimensions(L*W*H)	315*274*45MM(L*W*H)
Operation Temperature	40°F----110°F
Other Function
Mouse Control	Yes
Remote Control	Yes
Multi-tasking	Yes
Languages Supported	Chinese,English
