Home > Security & Protection > Surveillance, Control & Protection > Monitoring System & Software > H.264 4ch Realtime NVR Kits For IP Camera(JM-4P)
US$ 300 - 320
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JEMIS
Model Number:
JM-4P
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4ch Realtime IP NVR Kits(JM-4P)US$ 300 - 320MOQ: 10 Pieces -
H.264/MJPEG Network Infrared 720P Wireless NVR Kit With 20M Night Vision POE, WIFI(Optional)NegotiableMOQ: 5 Pieces
-
H.264/MJPEG Network Infrared 720P NVR Camera Kit With 20M Night Vision POE, WIFI(Optional)NegotiableMOQ: 5 Pieces
-
Night Vision Network 720P Infrared IP NVR Kit 4CH With 20M Night Vision POE, WIFI(Optional)NegotiableMOQ: 5 Pieces
-
H.264/MJPEG Compression Mode Infrared Network 4CH IP Camera NVR Kit With China SupplierNegotiableMOQ: 5 Pieces
Place of Origin
Guangdong, China
Brand Name
JEMIS
Model Number
JM-4P
Specifications
1.4CH Realtime NVR;2.4piece CMOS IP Camera;
3.3.6mm Fixed lens;
4.Night Vision: 20M(36pcs leds).
H.264 4ch Realtime NVR Kits For IP Camera(JM-4P)
Product Description
IP Camera:
Hi 3518C+ OV9712 ;
Dual stream encoding / H.264 compression mode ;
1/4"-inch OV9712 CMOS, 3.6mm fixed lens
Night vision :20m(36pcs leds) 1MP:1280*720

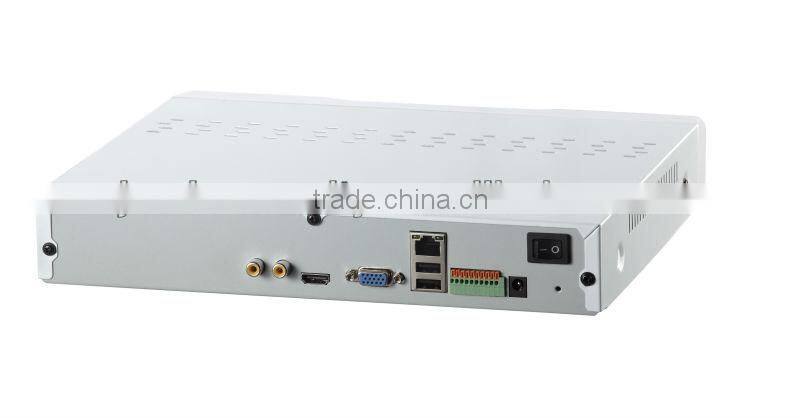

NVR :
Hi 3520A Support 4CH 720P/2CH 1080P realtime viewing and recording;
Support 4CH 720P/1CH 1080P playback;
Support 1CH BNC/VGA/HDMI output;
Support 1CH audio/alarm output;
USB*2; support 1 SATA HDD,max capacity 2T
| IPS-Ki-K4 Specification | ||||||||||
| Video Compression | H.264 | |||||||||
| Video/Audio Channels | Type-port/Channel | Channel | ||||||||
| Video Input | RJ45 | 1 | ||||||||
| Video Output | VGA | 1 | ||||||||
| Audio Input | BNC | 1 | ||||||||
| Audio Output | BNC | 1 | ||||||||
| Alarm | N/A | |||||||||
| PTZ | Yes | |||||||||
| Remote Viewing Specifications | ||||||||||
| Network Interface | Rj45,10M/100M | |||||||||
| Network Protocol | TCP/UDP/DHCP/DDNS/PPPOE/UPNP | |||||||||

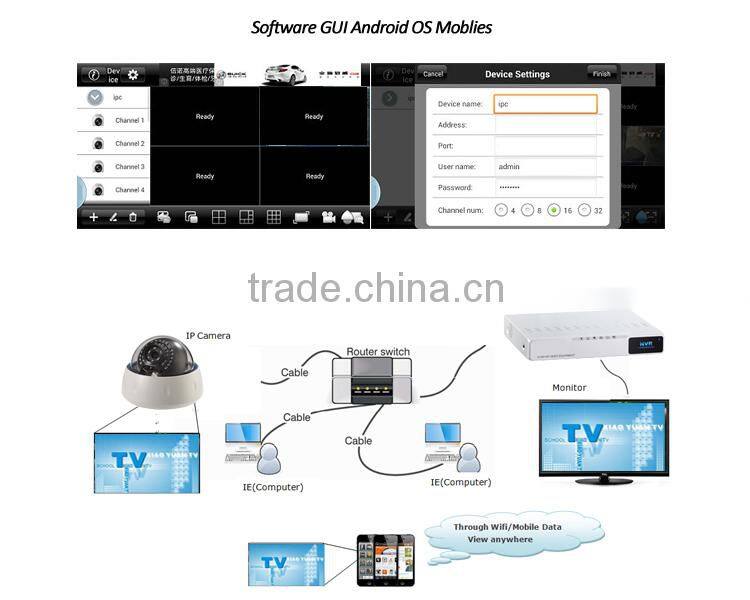

| Internet Viewing | Operating System | Browser | Software | |||||||
| PC | IE 7/8/9/10 | CMS View | ||||||||
| MAC | N/A | CMS View | ||||||||
| # of Users | 3 simultaneously | |||||||||
| Mobile Phone Compatibility | Mobile Platform | Model# | ||||||||
| iPhone/iPad | iPhone OS 4.3 or above | |||||||||
| Android/Pad | Android Ver 2.3 or above | |||||||||
| Blackberry | Not at this time | |||||||||
| Symbian | Not at this time | |||||||||
| Windows | Not at this time | |||||||||
| MAC/PC Compatibility | Platform | Browser | Software | |||||||
| MAC | N/A | CMS View | ||||||||
| PC | IE7/8/9/10 | CMS View | ||||||||
| Control Management Software | MAC/PC | CMS View | ||||||||
| Tablet Viewing | Yes | |||||||||
| Camera Specification | ||||||||||
| Image Sensor | 1/4 CMOS | |||||||||
| Resolution | 1280*720 | |||||||||
| Number of LEDs | 36 | |||||||||
| Length of Night Vision | 20M | |||||||||
| Lens Type | 3.6MM | |||||||||
| Weatherproof Rating | IP63 | |||||||||
| Length of Cable | 810MM | |||||||||
| S/N Ration | >50DB | |||||||||
| Minimum IIIumination | 0.5LUX | |||||||||
| Effective Pixels | 1280*720 | |||||||||
| Power Supply | DC 12V | |||||||||
| Operating Temperature | -10°-60° | |||||||||
| Dimensions | Φ69*189MM(D*L) | |||||||||
| Display Specifications | ||||||||||
| Display Frame Rate | 30fps | |||||||||
| Display Resolution | Type-Resolution | Resolution | ||||||||
| VGA | 1280*720,640*480 | |||||||||
| Display Mode | Quad,Single Channels,Auto-switch and Hidden | |||||||||
| Recording & Playback | Channel | Resolution | Recording | Playback | ||||||
| Recording Frame Rate | 1 CH maximum | 720P | 30 | 30 | ||||||
| D1 | 30 | 30 | ||||||||
| 4 CH maximum | 720P | 30 | 30 | |||||||
| D1 | 30 | 30 | ||||||||
| Recording Resolution | 720P:1280*720 | |||||||||
| D1:640*480 | ||||||||||
| Record Modes | Motion Activated, Continuous and Time Schedule | |||||||||
| Playback Options | By Event and Date | |||||||||
| Playback Mode | Multi-Channel(1/4) | |||||||||
| System Information | ||||||||||
| Support SDD | 1*2TB | |||||||||
| Backup | USB2.0 | |||||||||
| Compatible OS for Software | Windows XP,Linux | |||||||||
| Power Supply | DC 12V/2A | |||||||||
| NVR Dimensions(L*W*H) | 315*274*45MM(L*W*H) | |||||||||
| Operation Temperature | 40°F----110°F | |||||||||
| Other Function | ||||||||||
| Mouse Control | Yes | |||||||||
| Remote Control | Yes | |||||||||
| Multi-tasking | Yes | |||||||||
| Languages Supported | Chinese,English | |||||||||
Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.
