DY1200 Clamp-on Ground Resistance Tester

Name: DY1200 Clamp-on Ground Resistance Tester
Brand: DUOYI
SKU: 130765069
Availability: InStock

US$ 400 - 500 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

DUOYI

Model Number:

DY1200

Shenzhen Graigar Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name DUOYI

Model Number DY1200

Display Type Digital Only

Specifications

DY1200 Clamp-on Ground Resistance Tester

55*32mm jaw size for larger ground rods
Autoranging ground resistance measurements from 0.01Ohm to 1000Ohm with 0.01Ohm resolution
AC Leakage current range of 10mA to 30.00A with 50µA resolution
Configurable alarm value for resistance and current to support your measurement
Ergonomic mold, full rubber coating for slip proof
Simplifies ground resistance measurements on multiple point ground systems
Verification resistor confirm accuracy of meter
Datalogging with 99 data points

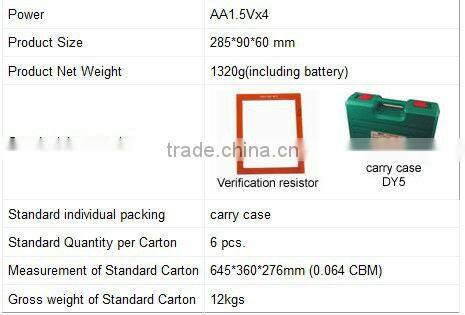

Complete with heavy duty case and verification resistor

Clamp-on Ground Resistance tester

Earth Ground Resistance	Range	Resolution	Precision
	0.01Ω ~ 0.99Ω	0.01Ω	±1%+0.01Ω
	1.0Ω ~ 49.9Ω	0.1Ω	±1.5%+0.1Ω
	50.0Ω ~ 99.5Ω	0.5Ω	±2%+0.5Ω
	100Ω ~ 199Ω	1Ω	±3%+1Ω
	200Ω ~ 395Ω	5Ω	±6%+5Ω
	400Ω ~ 590Ω	10Ω	±10%+10Ω
	600Ω ~ 1000Ω	20Ω	±20%+20Ω
Min. Resolution	0.01Ω
Configurable alarm value of resistance	0~199Ω
Leakage current	Range	Resolution	Precision
	0 ~ 80mA	50µA	±2.5%+1mA
	80mA ~ 650mA	0.5mA	±2.5%+2mA
	650mA ~ 4A	5mA	±2.5%+10mA
	4A ~ 30A	10mA	±2.5%+20mA

Min. Resolution	50µA
Measurement of leakage current	46 ~ 65 Hz, RMS
Configurable alarm value of current	0~499mA
Memory	99 sets
Conductor Size	32 * 55 mm
Working Temperature	-10°C ~ 55°C
Working Humidity	10%~80%
LCD Size	28.5 x 47 mm
