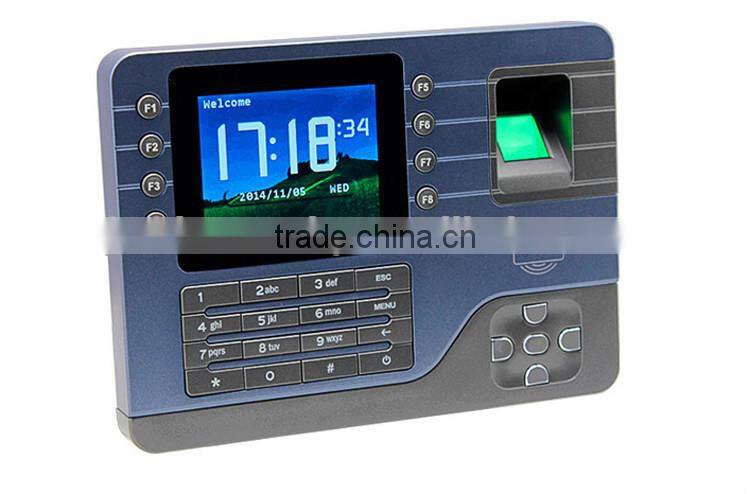

Popular 3.2 inch TFT network TCP/IP biometric fingerprint time attendance system
Introduction
It’s with Westernstyle and big store capacity, metallic coating function keys, and back case is with metal paint process.
Its hardware structure adopts structured design of industrial grade. It is with ourselves fingerprint arithmetic which is
the most advanced one in the world, automatically analyze the tiny difference of the latest fingerprints vs. the previous
fingerprints and update accordingly to ensure the high accuracy and the optimum speed of fingerprint recognition. High
recognition ability for injured and peeled fingers, the identification time is less than 0.8 second. With ID card (optional
for IC card) function, multi validation methods by card, fingerprint and password combination. It could set up message
reminders for meeting, birthday ect, self-define the display & main menu. Standalone to operate the device, U flash
drive could realize all kind of setting for the device directly. TCP/IP communication, network connection is simple and
convenient. Support Push Technology, operateaccess control networking and data collection & sharing freely, it’s
suitable for high-end office environment.
Features:
--With the most advanced fingerprint arithmetic in the world, automatically analyze the tiny difference of the latest
fingerprints vs. the previous fingerprints and update accordingly to ensure the high accuracy and the optimum speed
of fingerprint recognition.
--High recognition ability for injured and peeled fingers, the identification time is less than 0.8 second.
--Built-in ID card sensor (optional for IC card), validate freely by Card, fingerprint and password combination.
--3.2 inch TFT color screen
Support U disk to download or upload attendance records and fingerprint data ect. User could enroll the fingerprint
in one device, and share the enrollment information with other devices through the USB flash memory.
--TCP/IP communication, network connection is simple and convenient, support Push Technology, operate access
control networking and data collection & sharing freely
--Supports 11 & 18 digits for user ID registration, user also could enroll mobile number for ID numbers.
--Authentication modes are 1:1 and 1:N, user can register ten fingers, max fingerprint capacity is 3,000 enrollment
and 100,000 records. Warning function for full records and inquiry log functions.
Could set up message reminders for meeting, birthday ect and self-define the display & main menu.
Support multi development language(VB, C++, C#, Delphi ect) SDK, and ODM/OEM software development
Support English, Germany, Spanish ect different languages.
Model | JM-AC091 |
LCD Screen | 3.2 inch TFT Color Screen |
Fingerprint Sensor Resolution | 500DPI (Optical sensor) |
Hardware Platform | REALANDR ZDC2911 |
Algorithm Version | REALANDR RSFv5.1 |
CPU | ARM926EJ CPU, Running Frequency: 200MHZ |

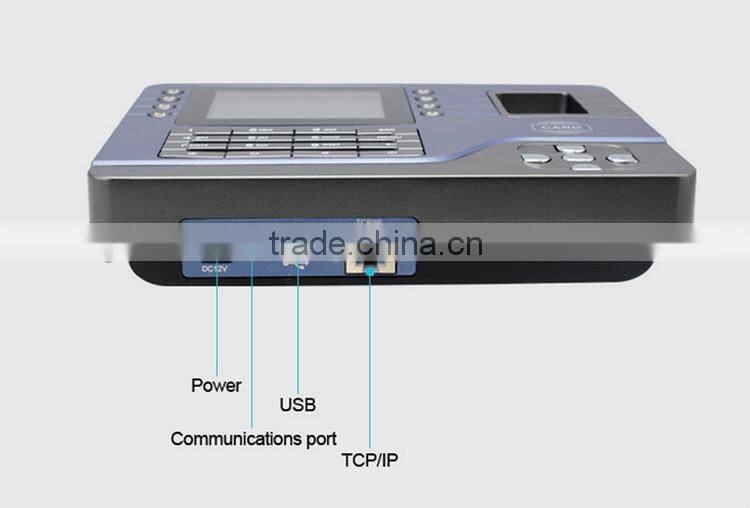

Communication | TCP/IP, USB Memory Disk, USB cable |
User Capacity | 3000 |
Records Capacity | 100000 |
Software OS | XP/Win2003/Vista/Win7/Win8 (32bit / 64bit) |
Identification Time | < 1 S |
Authentication Method | Fingerprint/ RFID Card (125Khz, EM4100) /Password |
Language | Chinese / English / Spanish/Arabic/ German (could customize others) |
Bell | Built-in timing bell |
Operation Mode | Off-line/Online |
Power | DC 12V/0.5A |
FRR | <1% |
FAR | <0.00001% |
Operating Mode | Off-line/On-line |
Authentication Mode | 1:1, 1:N |
Operating environment | Operating Temp: 0°C-50°C, Humidity:80% |
Certificates | CE, Type Inspection Report of Chinese Police Product |
Dimension(L*W*H)mm | Terminal – 190*140*37 Package –325*105*258mmmm |
Weight | Terminal – 0.453 Kg, Package- 0.98 Kg |

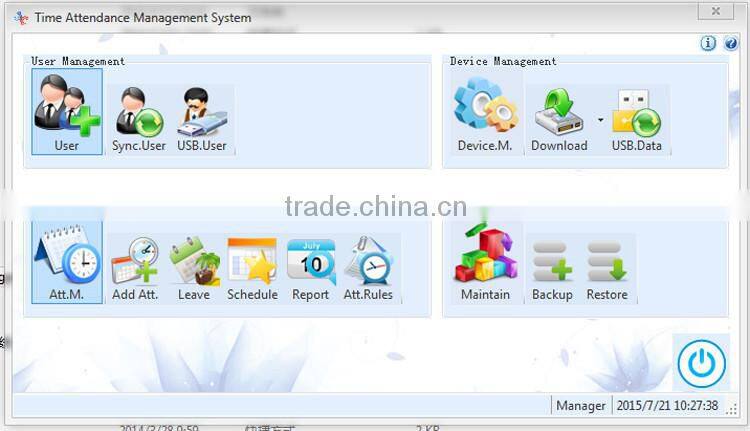

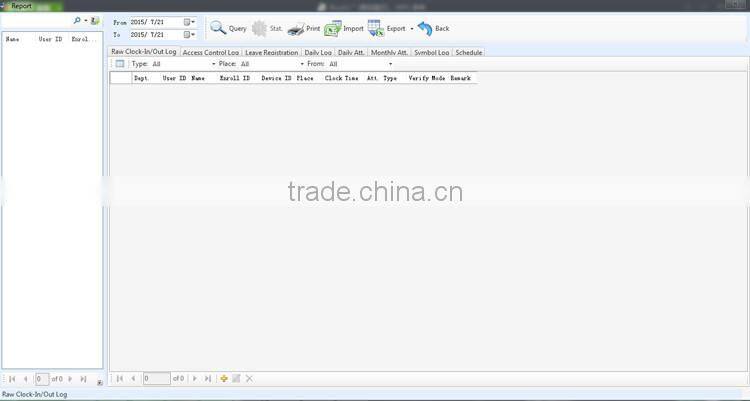

Software Interface:
