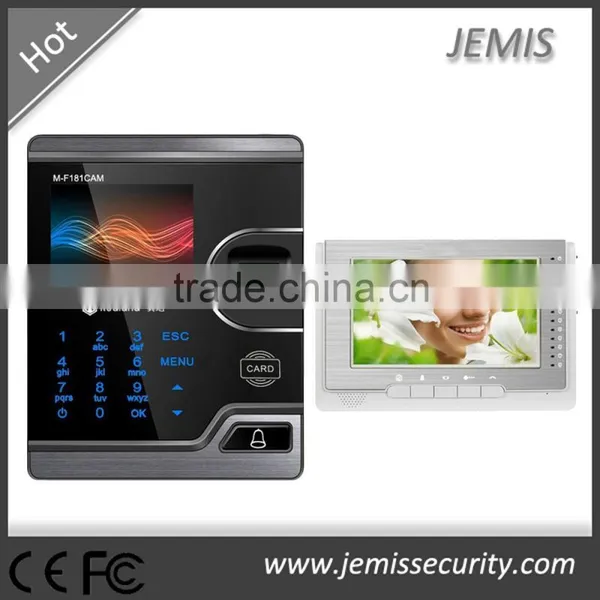

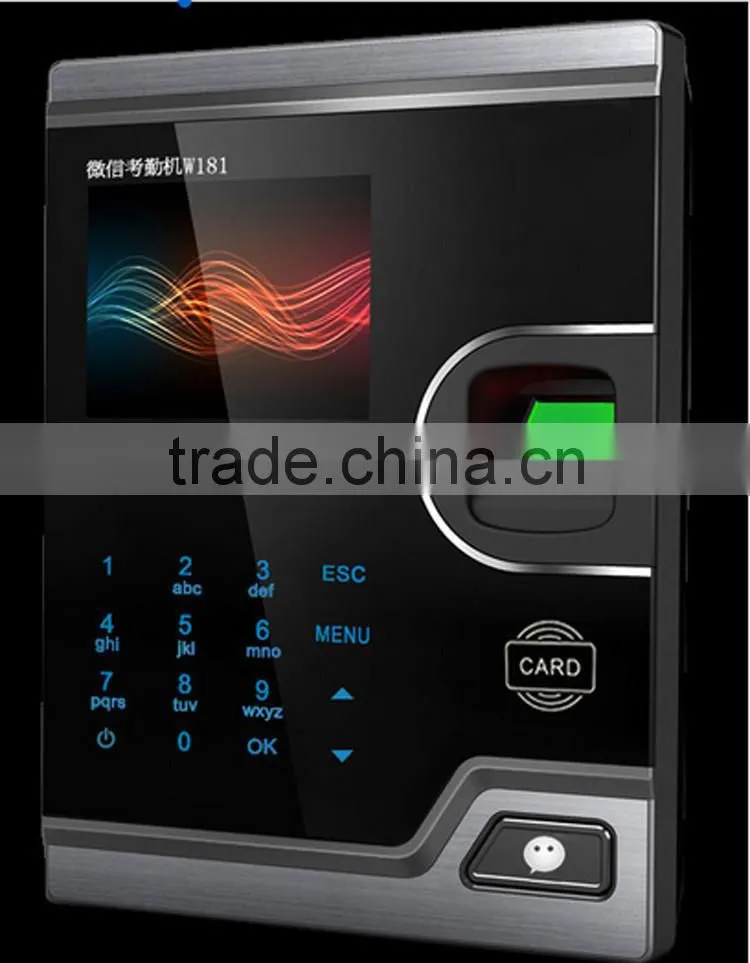

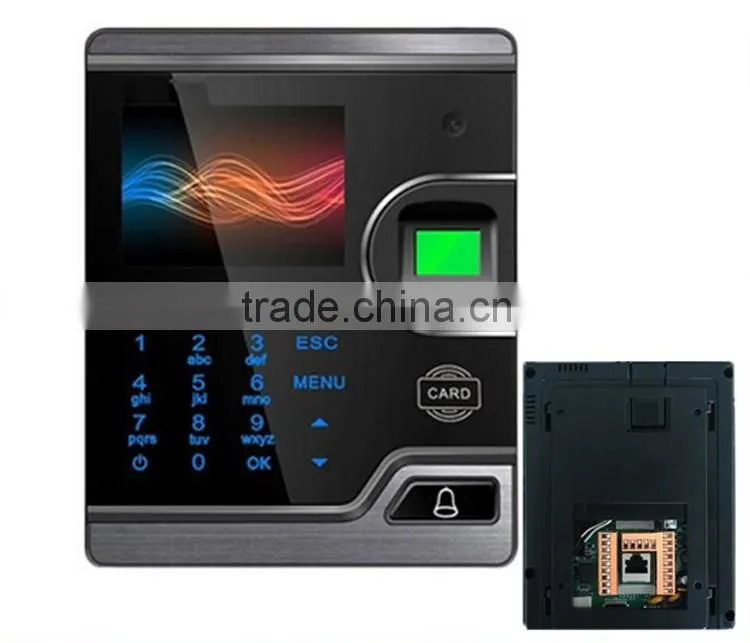

HD Camera 7'' indoor Video Intercom, TCP/IP, RS485, WANs control, biometric fingerprint video intercom access control
--It is with the leading-edge fingerprint arithmetic in the world, automatically analyze the tiny different of
the latest fingerprints vs the previous fingerprints and update according to ensure the high accuracy and
optimum speed of fingerprint recognition.
--Fast validating speed, it is less than 0.8 second
--Anti0static circuit to ensure the security, very suitable to strong static environment and thunder and
lightning weather
--No need connect PC, directly setup user's accessing right and accessing period, simple&clear operation
to enhance the users' efficiency

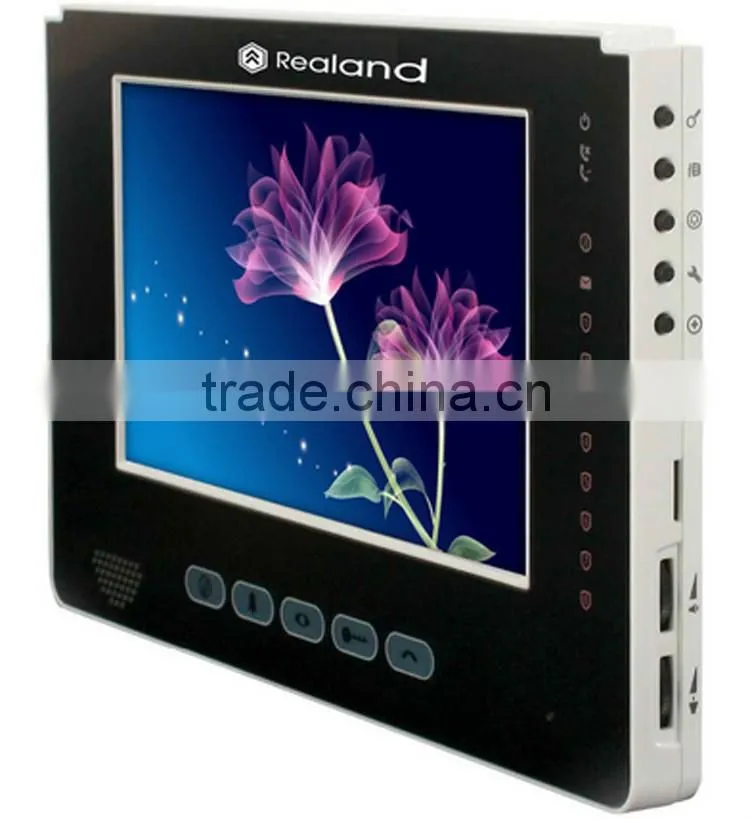

--With HD video camera and 7 inch TFT indoor monitor, clear display, user could enjoy the technical progress
on fingerprint video intercom
--Support off-site user management operation(user registration, delete, door opening and so on) through
PC, mobile, tablet
--Touch key technology, it is water-proof, dust-proof and more durable
--Standard version with ID module, IC module and ID card module is optional
Model |
JM-F181CAM(Fingerprint video intercom access control) |
Color |
Black |
LCD Screen |
2.8 inch TFT Color Screen (7” indoor video intercom) |
Fingerprint Sensor Resolution |
500DPI (Optical sensor) |
Authentication Angle |
360 0C |
Hardware Framework |
Industrialstructure design |
FRR |
<0.001% |
FAR |
<0.0001% |
Identification Time |
< 0.8 S |
Authentication Mode |
1:1, 1:N |
Operating Mode |
Off-line/On-line |
Communication |
TCP/IP, RS485, USB Memory Disk |
Authentication Method |
Fingerprint/ RFID Card (125Khz)(could customize IC card)/Password |
User Capacity |
3,000 (Fingerprint/Card) |
Records Capacity |
100,000 |
Professional Access Function |
Open door by multilevel verification, anti-pass back |
Lock output |
1 group |
Exit Button |
1 group |
Language |
Chinese / English / Spanish/Portuguese/ German (could customize others) |
Bell |
Built-in timing bell(can connect to external timing bell) |
Wiegand |
Wiegand26/34, input could be 4 groups, output is 1 group |
Alarm function |
Tamper-proof, door opening delay, anti-pass back and relay alarm |
DPI of indoor intercom |
600*800 |
Docking station |
One AC device connect 3 indoor intercoms |
Power |
DC 12V/2A |
Operating environment |
Operating Temp: 0℃-45℃, Humidity: 20%-80% |
Certificates |
CE, Type Inspection Report of Chinese Police Product |
Dimension(L*W*H)mm |
Terminal - 160*130*38mm Package – 270*164*66mm |
Weight |
Terminal – 0.445Kg Package – 0.623Kg |
