3.5'' TFT Touch screen TCP/IP, RS485, Wiegand26/34 in/out biometric fingerprint time attendance machine
1. Brief Introduction

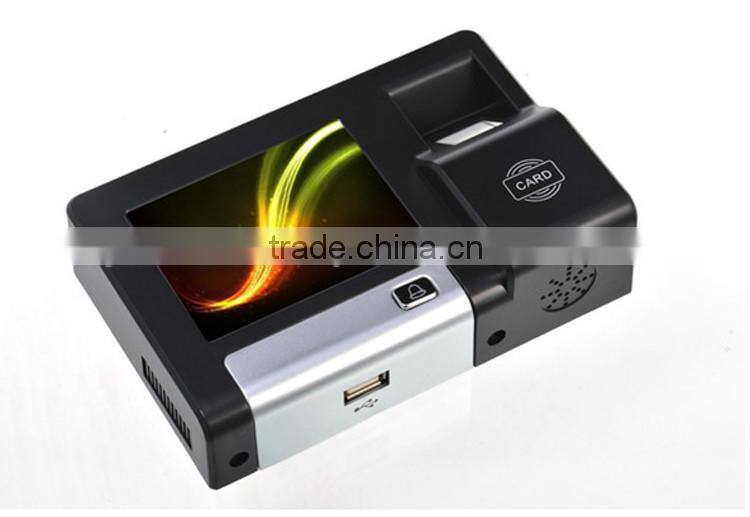

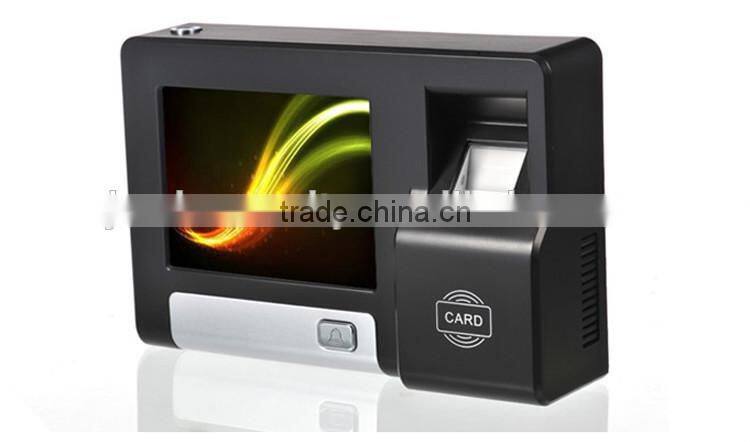

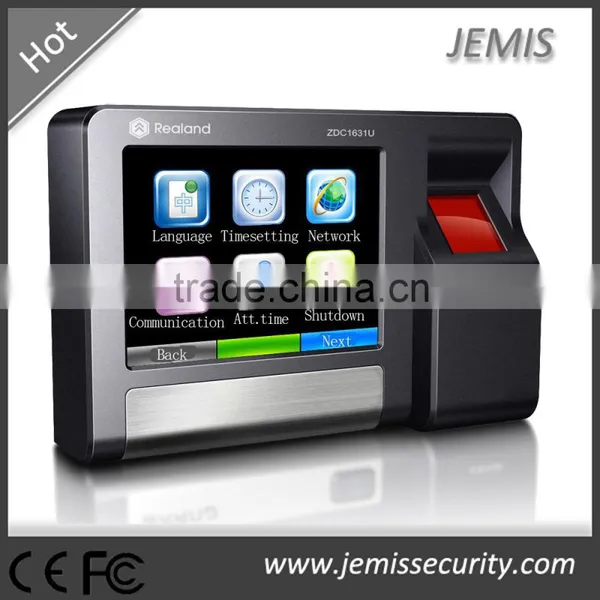

JM-AC660T is a built-in Linux system and intelligent fingerprint time attendance device. It’s touch screen and with
super capacity, and also with the most advanced fingerprint arithmetic in the world, and adopts structured design
& electronic components for industrial grade, it is 3.5 inch 64K TFT color screen. To store 5,000 fingerprint enrollments
and 100,000 records, can download or upload data by U flash memory, TCP/IP communication, message and meeting
notification functions, very suitable for medium to large companies.
Features:
1)With the most advanced fingerprint arithmetic in the world, automatically analyze the tiny difference of the latest
fingerprints vs. the previous fingerprints and update accordingly to ensure the high accuracy and the optimum speed
of fingerprint recognition. High recognition ability for injured and peeled fingers, the identification time is less than
1 second.
2)Built-in ID card sensor (optional for IC card), validate freely by Card, fingerprint and password combination, access
control is more flexible and secure.
3)3.5 inch 64K TFT color touch screen
4)Support U disk to download or upload attendance records and fingerprint data ect. User could enroll the fingerprint
in one device, and share the enrollment information with other devices through the USB flash memory.
5)TCP/IP communication, network connection is simple and convenient, support Push Technology, data collection &
sharing freely.
6)Authentication modes are 1:1 and 1:N, user can register three fingers, max fingerprint capacity to store 5,000 enrollment and 100,000 records. With full record warning and log inquiry function.
Model |
JM-AC660T |
LCD Screen |
3.5inch TFT (320*240) Color Touch screen |
Fingerprint Sensor Resolution |
500DPI |
Operating System |
Linux |
Rotational Angle |
Total Rotational Angle |
FRR |
≤0.1% |
FAR |
≤0.0001% |
Identification Time |
≤1 S |
Query Record |
Available |
Real Time Fingerprint Picture Display |
Available |
Operating Mode |
Off-line/On-line |
Authentication Mode |
1:1,1:N |
Authentication Method |
Fingerprint, Password, RFID Card (125Khz) |
User Capacity |
5,000 |
Records Capacity |
100,000 events |
Proximity Card |
Available |
Communication |
USB,TCP/IP |
DHCP |
Available |
USB flash drive upload/download |
Available |
Language |
Chinese, English, Korean |
Voice prompt |
Available |
capacity notification |
Alarm when log capacity is full |
Bell |
Built-in timing bell |
Power |
DC 12V/1A |
Operating environment |
Operating Temp: 0℃-50℃, Humidity:80% |
Size of the Terminal |
144(L)*96(W)*41(H)mm |

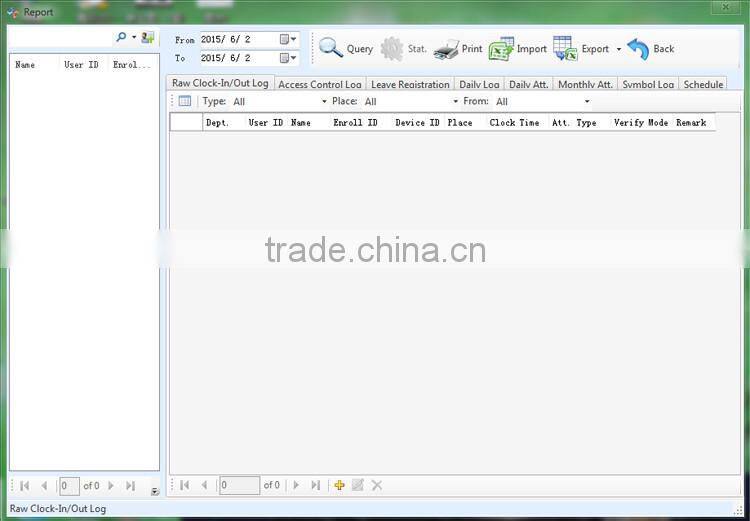

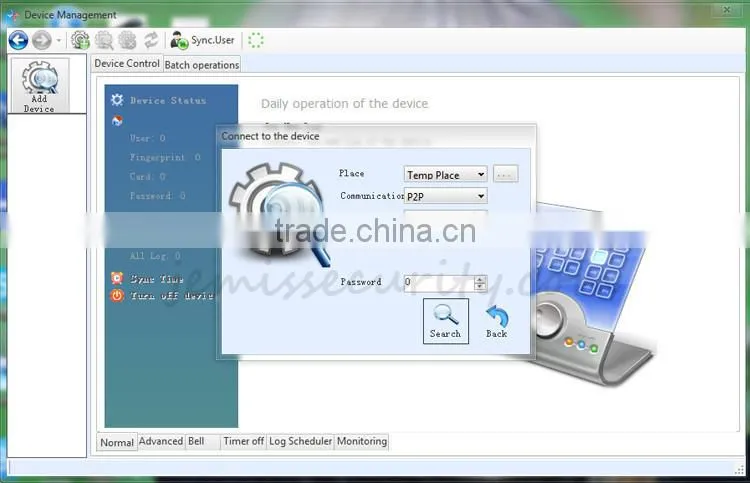

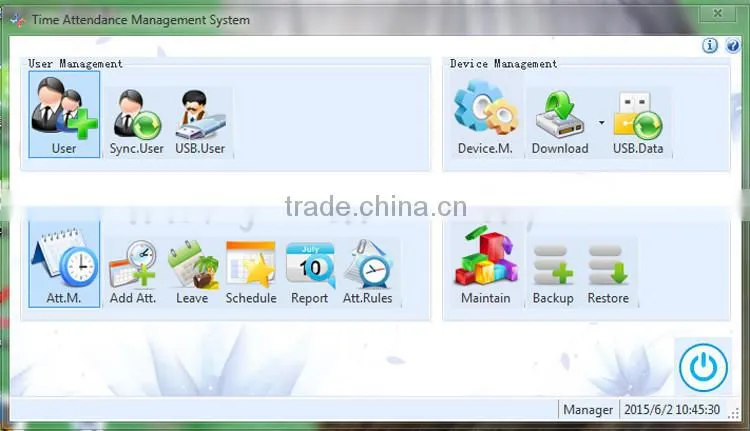

Software Interface:
