Hot sale wood block making machine wholesaler

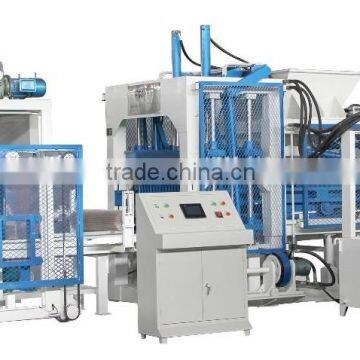

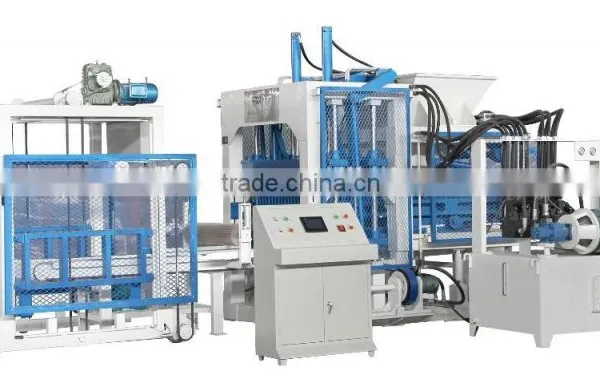

Technical Features of QT10-15 Concrete Block Machine :
1. Recycle material feeding system: Economize in material for different or same density products.
2. Reliability design of the machine frame is made of super- strength steel and by special welding technology, the imported elements are applied widely, so that the stability and reliability of the machine in long term running are insured.
3. Mould frame are made of 55# Manganese steel, and tamper head is made of 16# manganese steel. After carburizing, the hardness can reach 60 degrees, lifespan can use over 100000 times. Standard brick mould can double-side use, lifespan can use over 120000 times.
4. Hydraulic parts and seals parts on hydraulic pressure system are from Japan or Taiwan, which protects pressure discharging or leakage.
5. Multi use; Strong performance; The many kind of products with difference form and size can be made when use the difference mold, such as wall block, honeycomb type block, road block and slope block.
Parameter of QT10-15 block making machine
| Brick machine | QT10-15 |
| Vibration force | 98 kn |
| Vibration frequency | 2800-4500r/min |
| amplitude | 15 mm |
| Noise | 65 db (A) |
| Vibration time | 6r/sec |
| Dimensions | 7150*2240*3000mm |
| Capacity | 44.58 kw |
| Weight | 11T |
| Pressure | 10 t |
| Pallet size | 1170*880*40mm |
| Operationer | 5 |
| Space needed | ≥5000m2 |
| Standard brick | 240*115*53 mm |
| Productivity | 13125/h |
How about the advantage of Better QT10-15 Automatic Block Making Machine?
The special loading and supply unit, the multi-line whipping forks are fixed at inside of material feed box. The whipping forks works and feed the material to mold box forcedly during the material feed box moves to up of mold box.
Recycle material feeding system: Economize in material for different or same density products.
Reliability design of the the machine frame is made of super- strength steel and by special welding technology, the imported elements are applied widely, so that the stability and reliability of the machine in long term running are insured.
Hydraulic parts and seals parts on hydraulic pressure system are from Japan or Taiwan, which protects pressure discharging or leakage.
Multi use; Strong performance; The many kind of products with difference form and size can be made when use the difference mold, such as wall block, honeycomb type block, road block and slope block
Why Choose QT10-15 Automatic Block Making Machine From Better Machinery?
QT10-15 block making machine is produced by Henan Better Machinery Co., Ltd, which has specialized in block making machine more than 20 years.
This Construction Concrete Hollow Block Making Machine has high-efficiency and super-strong vibration system, to realize vertically synchronous vibration, frequency conversion and braking.
The machine frame is made of super- strength steel and by special welding technology, the imported elements are applied widely.
The whole process uses a PLC control and dialogue system of human-machine interface, easy to analyze the chance signal.
BT1-10 Manual concrete block making machine https://youtu.be/w1y3XcEDYss
QT4-15 block making machine https://youtu.be/HUVA2YJ0Au4

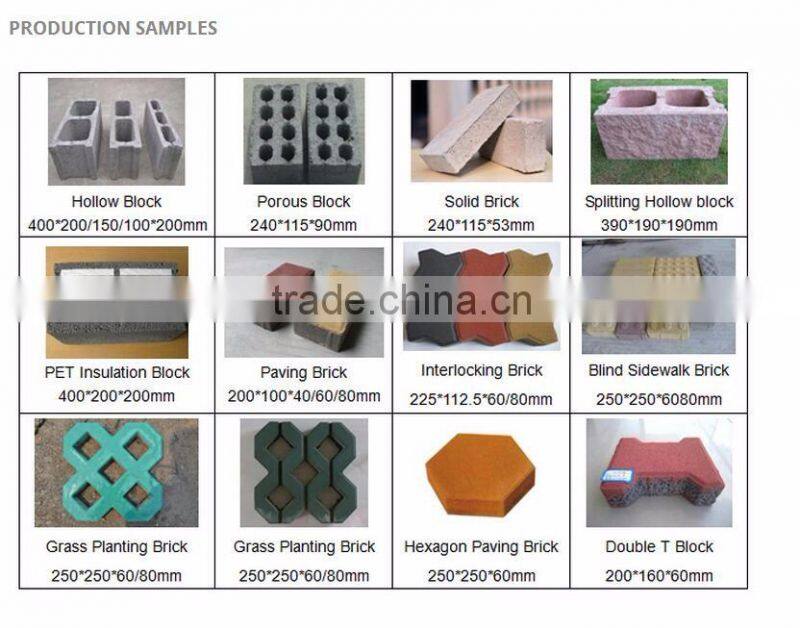

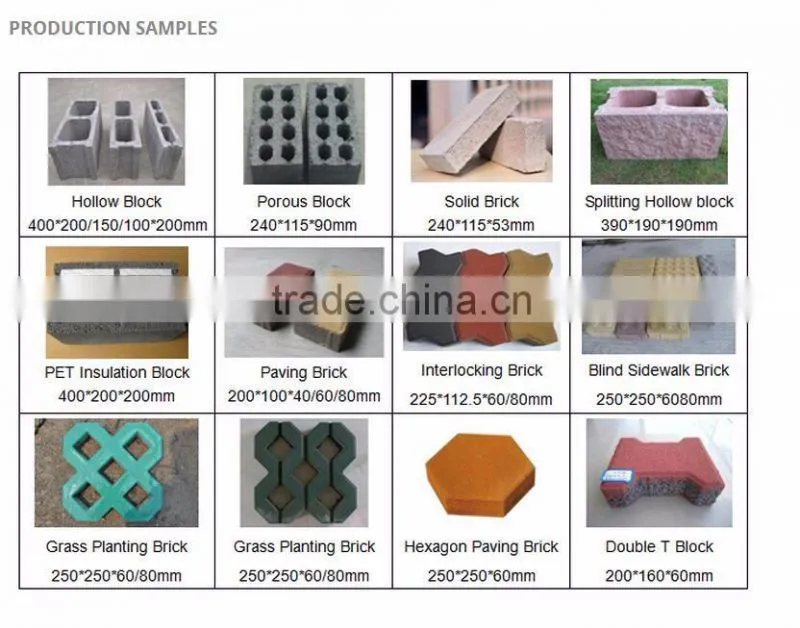

Samples of bricks

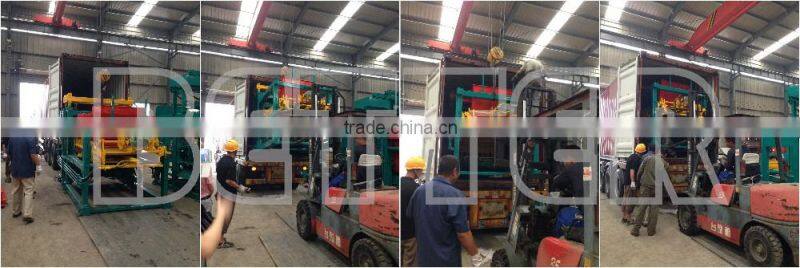

Block making machine packaging and delivery
Containers or as your order
1. Use crane to load into the container
2. Wire cable fastened inside the container
3. Cork wood to forbid collision
4. 20"/40” will be needed
Better service
1. pre-sale service:
Michelle will give you suggestions on productive technical processing in the prophase plan and manufacturer equipment based on your special demand.
2. Sale service:
If needed, our advanced technicians will be sent to your site, guide installation and operation, training your technicians until you site is finished and well checked running.
3. After-sale service:
In order to keep our cooperation relationship, we will send technicians to visit you, making sure the products works normally.
4. We provide one-year warranty to make products works normally. We also offer lifelong services and wearable parts for you. (In addition to artificial damage)

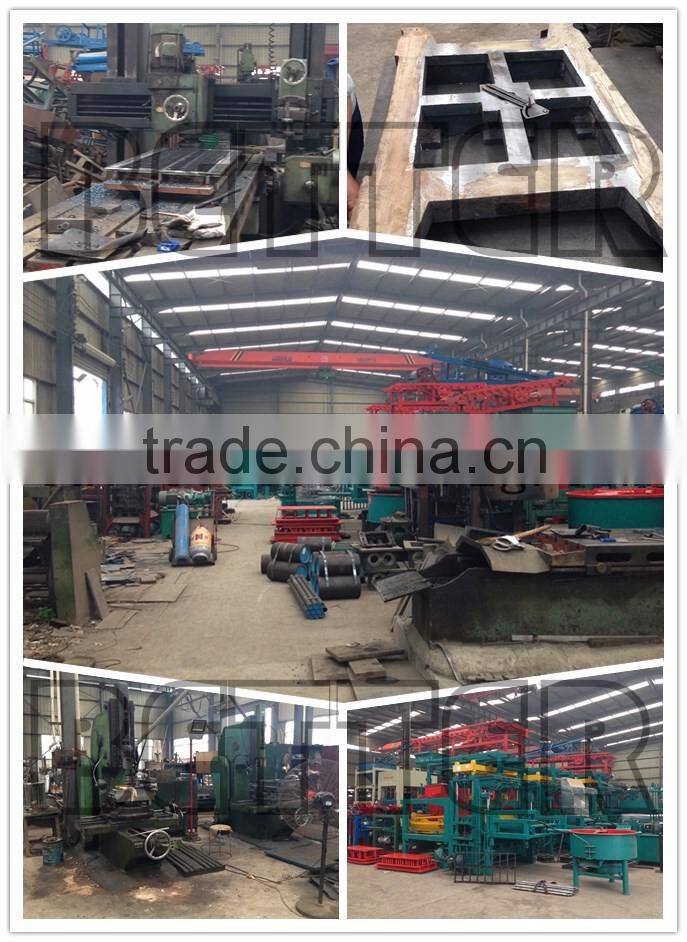

Henan Better Heavy Industry Co., Ltd was established in 1998, with long history, strong technical force, well-equipped and advance technology.
Our core competences are QT series block making machinery, HBT series concrete pump, HZS series concrete batching plant, YHZS series mobile concrete mixing plant, 2HZS series concrete mixing plant, PLD batching machine, JS series concrete mixer, JZC series concrete mixer, Cement silo, LSY series screw conveyor, electric control system.
Company purpose: Customer is God, quality is life, strives for the survival by the quality, strives for the development, to the prestige, service for efficiency.
Exported country: Outer Mongolia, Russian, Philippine, Macedonia, Tanzania, Cyprus, Thailand, Nigeria, Bangladesh, Kazakhstan, Romania, Nepal, Saudi Arabia, Algeria, Senegal etc.
Our customer
Honor
Our certification
1. How about the quality of machines?
Our block machines adopt advanced technology. Moreover, we carry out strict supervision during production and make sure every finished product with high quality.
2. About the delivery time.
Generally, it will be about 20-25 days days after your deposit, which also will be on basis of your order.
3. As for the warranty.
We provide 12 months for warranty.
4. Which kind of payment is available for us?
T/T, L/C and Western Union are common for us.
5. How about the service?
Provide overseas installation, debugging and training the relating work .
6. What is the port of discharging?
All price are based on FOB, QINGDAO, China.
7. What is the payment terms?
Payment: 30% as the down payment by T/T, 70% before delivery.
8. How long is the warranty?
Warranty: All machines enjoy one year’s warranty, if you have any problems please feel free to contact us. We will try our best to make it.
9. What other product that you manufacture?
Please see below chart, click the product name to view.
| NO. | Product Name | Type |
| 1 | Concrete Batching/Mixing Plant | Fixed and Mobile |
| 2 | Concrete Mixer | Twin Shaft, Single Shaft, Rotating Drum Type |
| 3 | Dry-mix Mortar Production Line | Full-auto |
| 4 | Concrete Batching Machine | Accumulative Weighing Type, Separator Weighing Type |
| 5 | Cement Silos | Fixed and mobile, |
| 6 | Screw Conveyors | With universal joint |
| 7 | Concrete Mixer Truck | From 3m3 to 16m3 |
| 8 | Concrete Pump | Electric type and diesel engine powered |
| 9 | Brick Making Machine | Manual, Electric, |
