Paper Roll Die Cutting Machine With Waste Removal Feature
US$ 10,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Commodity
Packaging Type:
Case
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
120 Automatic Paper Angle Machine for L TypeUS$ 20,000 - 40,000MOQ: 1 Set -
Digital Label Die Cutting Machine for Any Shape LabelsUS$ 10,000 - 20,000MOQ: 1 Set
-
Automatic Roll to Roll Digital Label PrinterUS$ 12,000 - 15,000MOQ: 1 Set
-
Small Label Cutting Machine With Waste Removal FeatureUS$ 10,000 - 20,000MOQ: 1 Set
-
Roll to Roll Digital Label Printer Machinery for SaleUS$ 12,800 - 15,000MOQ: 1 Set
Condition
New
Application
Commodity
Packaging Type
Case
Packaging Material
Wood
Automatic Grade
Automatic
Driven Type
Electric
Voltage
220V 50HZ
Power
250w
Place of Origin
Shanghai, China
Brand Name
SPIC paper roll die cutting machine
Model Number
paper roll die cutting machine, paper roll die cutting machine
Weight
110/80KGS
Dimension(L*W*H)
114X79X69CM
Certification
CE ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

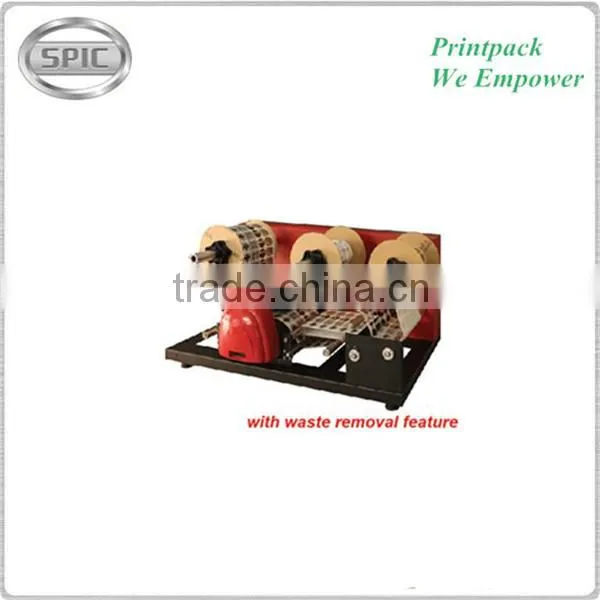

Automatic paper roll die cutting machine with waste removal feature
- Suitable for prototyping or small production
- Contour cutting is performed automatically
- Perfect for low-cost, on-demand, short run labels, specialty labels of any shape, and helps reduce inventory.
- Max. cutting straight-line speed of 960mm/min Max. cutting curve-line speed of 600mm/min
- Max. media of 16”
- Max. cutting width of 12”
- Max. cutting length of 12” for one time
- Motor power: 25watt
- Max. down force: 750g (3g/step)
- CPU: 64 BIT dsp 32m Flash
- Encoder signal: physical 1016 line/round, logical 4064 line/round
- Repeating precision: 0.082mm
- Noise: 35 dB OR LESS
- Ambient temperature: 5 - 35 degrees
- HPGL commands
- With feeding system and rewinding system
- Servo control system, fast and quiet
- Direct USB, easy and reliable
- SD card memory: 4G, no need computer to run machine
- Warranty: 12 months package: wooden box,114x79x69cm 110/80KGS
Picture from customer :
Note: Machinde sizes can be customzied according to customers.
Certifications
Packaging & Shipping
Company Information
Shanghai Printpack dedicate to provide "value+" service to those who in need of quality and resonable priced equipment for printing and packaging industry.
Our team of seasoned professional consultants are willing to offer range of products in print & pack machinery of hi performanced, as well as optimizing supply chain management for overseas customer sourcing from China.
We are willing to play as an important partner for those who got inspired by China's growth.
