120 Automatic paper angle machine for L type
- 100 Set / Sets per Month
- any port of China
- T/T Credit Card
- CE certificated hydraulic press/Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
- 20 years manufacturer, automatic hay and straw baling machine
- more than 20 years factroy supply CE certificated used clothes and textile baling machine
- more than 20 years factory supply Hard plastic/ Fiber/Cotton/Woolen/Clothes/Textile Baler machine press
- more than 20 years factory supply plastic baler machine
- more than 20 years factory supply Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine

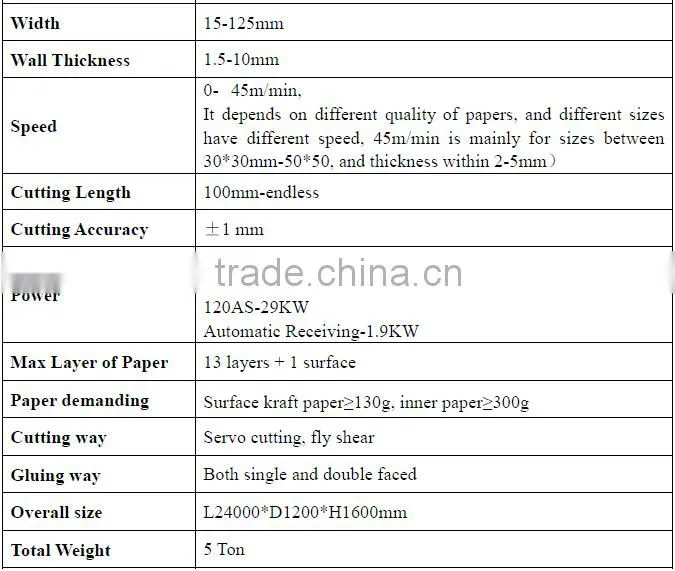

Product Details
Condition: | New | Application: | Commodity | Packaging Type: | Film |
Packaging Material: | Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380V 50Hz | Power: | 24.5KW | Place of Origin: | Shanghai, China |
Brand Name: | SPIC paper angle machine | Model Number: | 120 paper angle machine, small label cutting machine | Weight: | 5Ton |
Dimension(L*W*H): | 24X1.2X1.6M | Certification: | CE ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

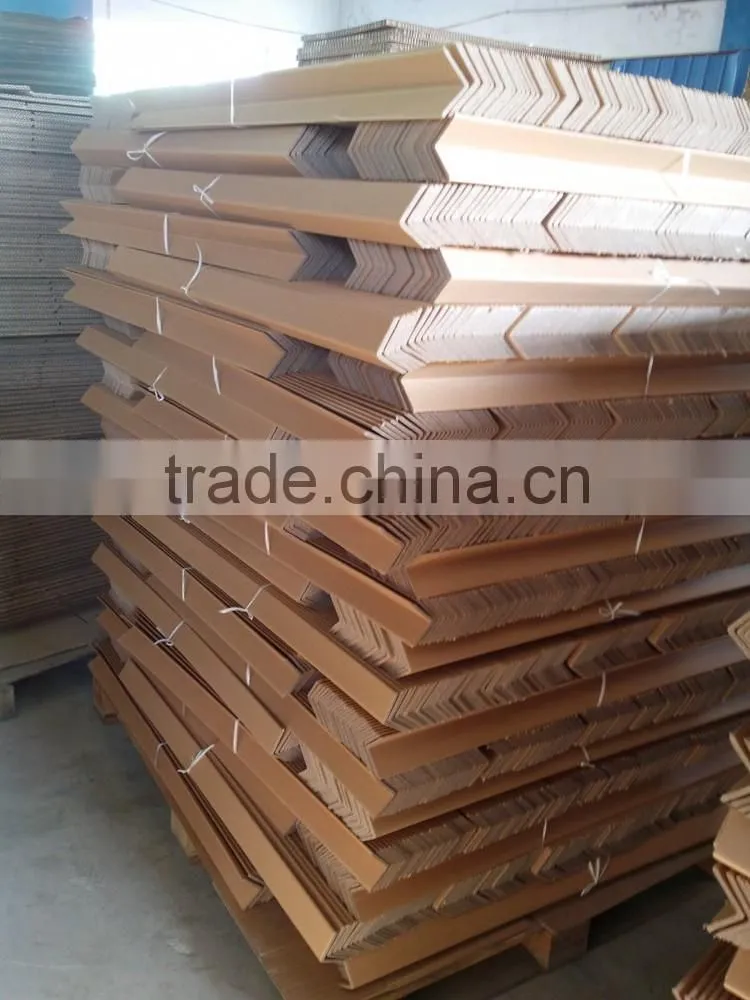

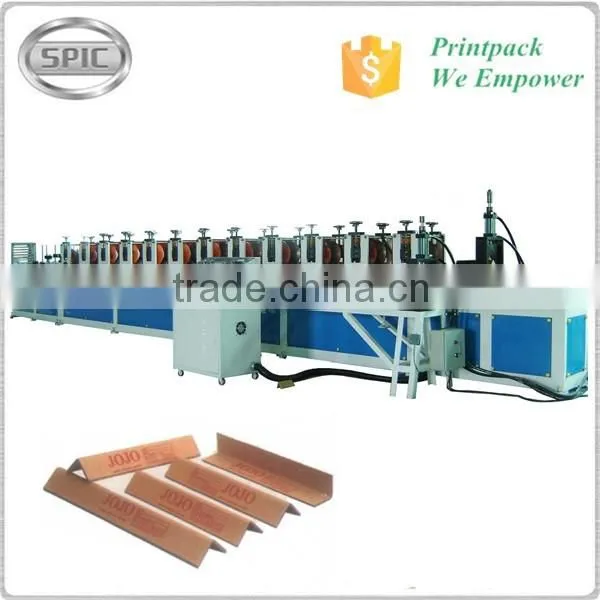

Automatic paper angle machine for L type
Description of machine:
1. Whole metal frame, #45 STEEL, thickness at 16mm/20mm/28mm for
different parts, and 5mm thickness square pipe for paper roller stand, which
guarantee the stability and security of whole production line.
2. All driven metal parts are treated with quenching and tempering, and
hardening the surface
3. Hard Chrome Plating and fine grinding of the forming rollers
4. Servo cutting , fly shear system, synchronous belt driven
5. Safety way of Electronic hoist for lifting inner paper rollers and pneumatic
lifting for surface paper roller, to reduce labor work
6. DELTA servo control system and PLC touch screen
7. Automatic alarming system to remind you the broken part, and promise a
safety working environment
8. Counting function for one duty and accumulative working
9. Both single face and double faced gluing station, you can choose heating or
not according to the separated switch, and each heating rod with a single
switch; Self-control of the gluing quantity;
10. Four groups of forming rollers with diameter at 330mm, the bigger, the
heavier pressing strength, and each forming group has a single motor. The
speed is faster and faster.
11. Brand of main parts:
Pneumatic parts: AIRTAC
PLC: DALTA
Straight Line guide: TAIWAN brand
Electronic parts: PEOPLE/ZHENGTAI/OMRON
Bearing: HARBIN
Note: Machinde sizes can be customzied according to customers.
1. Unwinding Paper Rollers Stand
13 layers of inner paper
1 layer of surface kraft paper
Max load capacity of electronic hoist: 200kg/roller
Max diameter of each roller:1300mm
Inner diameter of each roller:76mm
2. Gluing Station
Each heating rod has a separated switch both in the control box and in
the forming section
Self-control of the gluing quantity
Both single faced and double faced gluing for choice
Recycling gluing system
Gluing pool:1600*550*100mm
Gluing Tube:600*500*560mm
Metal blade instead of Squeegee, which promises an even gluing
3. Preforming Section
Meters make adjustment of different sizes easier, especially who don’t
have experience
Different forming pieces for different sizes and thicknesses
4. Forming Section
4 groups of big rollers with diameter at 330mm, while the traditional
machines using 240mm rollers
Single motors promise the forming groups faster and faster to give the
whole production line a faster speed and stronger pulling strength
Pneumatic cylinder to adjust the rollers up and down, easy operation
5. Notching on Line
It’s an option, not standard machine
We present a free notching mold with machine
High efficiency
Simple operation and easy changing of notching mold
6. Cutting Section
Servo cutting/ Easy changing of the blade
Cutting cycle: 35-40 cycles /minute
Min length: 100mm
Accessories: 5 pieces of blade; 5 pieces of cutting base
7. Automatic Receiving and Stacking (option)
You can choose standard packing table or automatic receiving and stacking
Delivery convey belt, simple adjustment of the holding space
Automatic receiving and you can setting the stacking quantity according to
different sizes and thicknesses
Stacking and packing table
8. Painting color
Our regular color is blue for main body and Gray for electronic parts
Customization is available
We Promise: All your machines will be packed in steady seaworthy package.
Shanghai Printpack dedicate to provide "value+" service to those who in need of quality and resonable priced equipment for printing and packaging industry.
Our team of seasoned professional consultants are willing to offer range of products in print & pack machinery of hi performanced, as well as optimizing supply chain management for overseas customer sourcing from China.
We are willing to play as an important partner for those who got inspired by China's growth.
