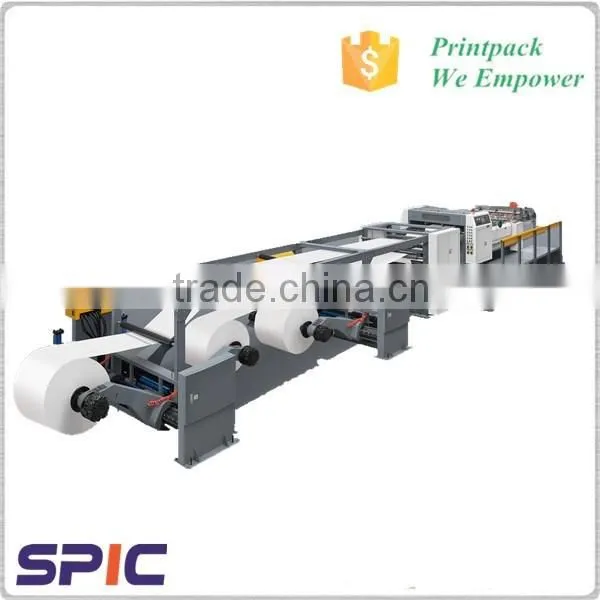

High Precision Automatic Jumbo paper roll cutting machine
Description:
Servo Precision High Speed Sheet Cutter apply the advanced technique of Germany.
The machine computer control system apply AC Servo motor and AC transducer.
The conveyor belt apply NITTA from Japan.
The pneumatic vibrator apply FINDEVA from Switzerland.
The electrical system adopts SCHNEIDER & OMRON, it leads to the speed of cutting paper much more fast and stable.
Germany precise bearing and cutting knife assure the high cutting precision.
The controller of soft-touch computer screen is simple and convenient to operate.
The anti-curve rack assures the paper flat.
This machine is the paper processing machine which is very popular in the paper making and printing industry. It can improve the efficiency and benefit of your work.
Parameters:
| Model | MZ-1100/1400/1700/1900A |

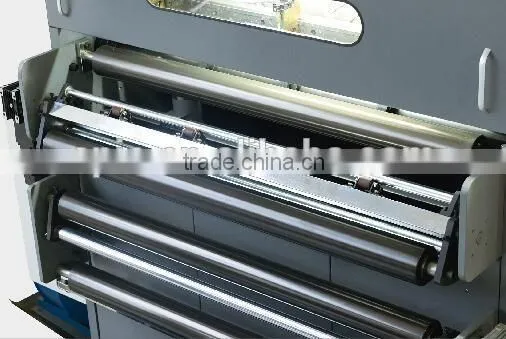

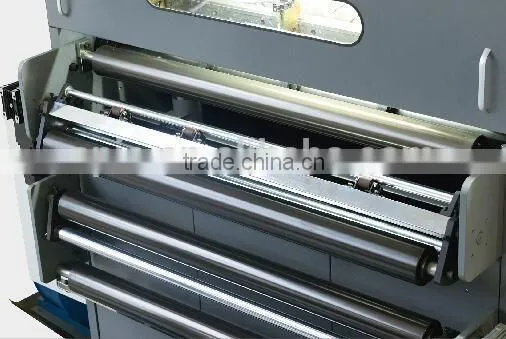

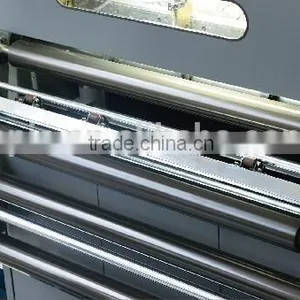

| Cutthing method | Up knife cut reciprocally and down knife is fixed |
| Paper thickness | 60-550gsm |
| Max.scroll diameter |
1500mm(MZ-1100) 1800mm (MZ-1400/1700/1900) |
| Cutting Length range |
450-1450mm(MZ-1100) 450-1650mm (MZ-1400/1700/1900) |
| Cutting presicion | ±0.5mm / cutthing length>1000m, ±0.1% |
| Cutting speed | 300cuts/min |
| Paper piling height | 300m/min |
| Cutter meter speed |
1300(MZ-1100) 1500MM (MZ-1400/1700/1900) |
| Gross weight | 9000/11000/13000/15000KG |

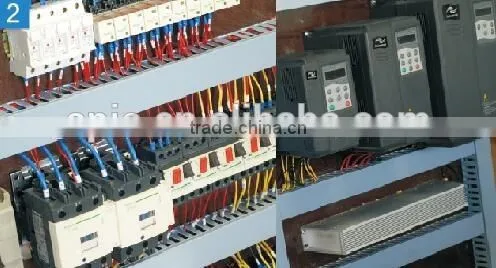

1. Paper Feeding Unit 2. Electric appliance Unit

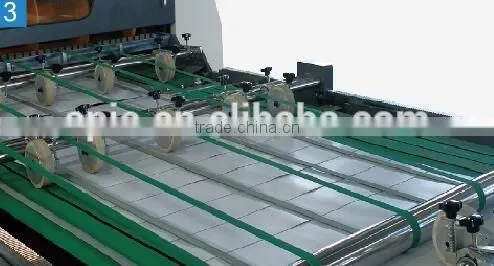

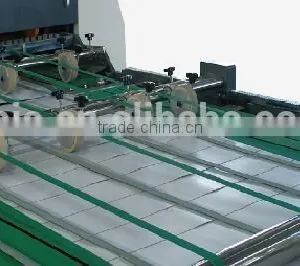

3. Overlapping Unit 4.Automatic Anti-curve equipment

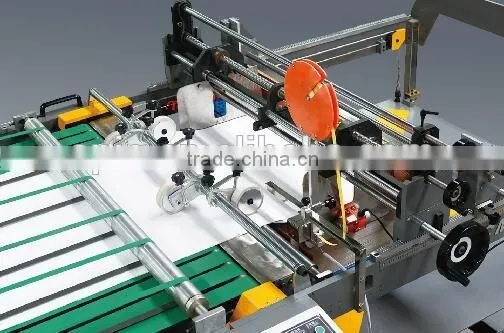

5.Edge position controller system 6.Automatic stacker

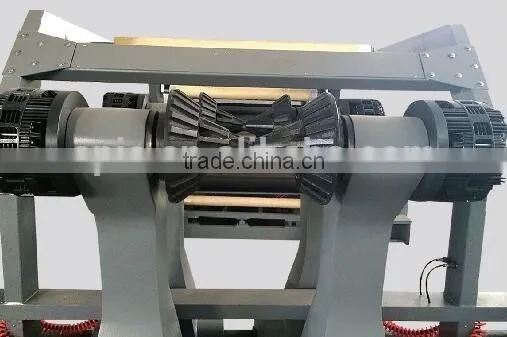

7. Photoelectric tracking system 8.Paper Rack stand and brake device
* The above information and specifications are subjects to change without prior notification.
* SPIC reserves all the rights for final explanations.
We Promise: All your machines will be packed in steady seaworthy package.
Shanghai Printpack dedicate to provide "value+" service to those who in need of quality and resonable priced equipment for printing and packaging industry.
Our team of seasoned professional consultants are willing to offer range of products in print & pack machinery of hi performanced, as well as optimizing supply chain management for overseas customer sourcing from China.
We are willing to play as an important partner for those who got inspired by China's growth.
