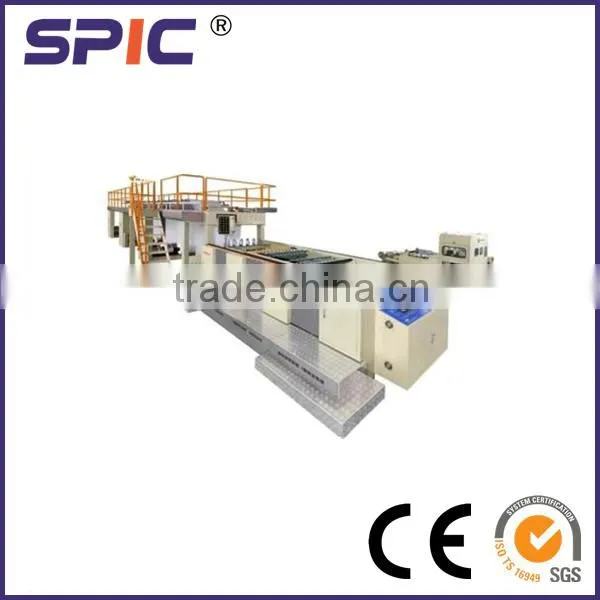

CJ-M Roll feeding paper cutting machine a4 size
As technics of our machine, we hereby describe the related functions and work flow for paper products: unwinding→ cutting → conveying → collecting → Packaging.
Main Parameters:
Paper Width |
: |
Gross width 1060mm, net width 1050mm |
Cutting numbers |
: |
5 cutting-A4 210mm (width) |
Paper roll’s diameter |
: |
Max.1500mm. Min.600mm |
Paper core’s diameter |
: |
3”(76.2mm)or 6”(152.4mm) or according to the clients’ demand |
Packing Paper grade |
: |
High-grade copy paper; High-grade office paper; High grade Free Wood paper etc. |
Paper weight |
: |
60-100g/m2 |
Sheet length |
: |
297mm ( specially design for A4 paper, the cutting length is 297mm) |
Ream amount |
: |
500 sheets Max. Height: 45-55mm |
Production speed |
: |
Max 0-200m/min(depends on different paper quality) |
Max. Numbers of cutting |
: |
673/min |
Output of the ream |
: |
34reams/min |
Load of cutting |
: |
500g/m2 (5×100g/m2) |
Cutting accuracy |
: |
±0.2mm |
Cutting condition |
: |
No variation of the speed, no break, cut all the paper at one time and need the eligible paper. |
Main power supply |
: |
3*380V /50HZ |
Voltage |
: |
220V AC /24V DC |
Power |
: |
34KW |
Air consumption |
: |
300NL/min |
Air pressure |
: |
6 bar |
Edge cutting |
: |
2×10mm |
Safety standard |
: |
Design according the safety standard of China |
DETAILS:
1. Unwind Stand (3 Sets= 5Rolls)
include 3 sets of railway and trolley
1) Machine Type |
Each machine table can take 2 sets of shaftless paper rack. |
2) Diameter of the paper roll |
Max. 1500mm |
3) Width of the paper roll |
Max. 1060mm |
4) Paper rack’s material |
Steel |
5) Clutch device |
Pneumatic Braker and control |
6) Clip arm’s adjustment |
Manual adjust by oil pressure |
7) Paper core demanding |
3”(76.2mm)or 6”(152.4mm) or according to the client’s need |
2. Automatic tension control system
1) When the paper through inductor, that automatic feedback to the
PLC control system to increase brake load, increase or reduce the
tension that control the paper tension automatically.
3 High precision cutting knife system
|
1) Upper and lower knives are rotary make the cutting accuracy is very precision. |
|
2) Anti-curve device Include one set of square bar and steel wheel. When the curve paper through paper edge unit that can adjust the paper square and let it flat. |
|
3) 6 sets slitting knives Upper slitting knife take by air pressure and spring. Lower knife connect with bear drive(the diameter is 180mm ) and move with spring. The upper and lower round knife is made by SKH.The lower slitting knife (diameter is 200mm) and drive with in-phase belts. The lower slitting knife is 6 groups, each group have two knife edge. |
4. Transporting System
1) Transporting by level and overlapping device |
|
2) High speed transporting belt and press wheel. Upper and lower transport belt corresponding pressure paper, automatic tension and close system. |
3) Static removal device(Include static removal bar and Negative ion generator) |
5. Paper collecting system
1) Automatic device for paper stack up and down
2) Jogging device and clap paper tidy. Control by air vat, when design
sheet, the cylinder up and down by cut paper bar. After transport paper
to belt, transport to the pack table cross.
6. Accessories
Upper knife |
: |
2 sets 1310mm Material: compounding of tungsten steel |
Lower knife |
: |
2 sets 1310mm Material: compounding of tungsten steel |
Upper slitting knife |
: |
6sets 180mm Material: SKH |
Lower slitting knife |
: |
6 sets 200mm Material: SKH |
Note: Machinde sizes can be customzied according to customers
* The above information and specifications are subjects to change without prior notification.
* SPIC reserves all the rights for final explanations.
