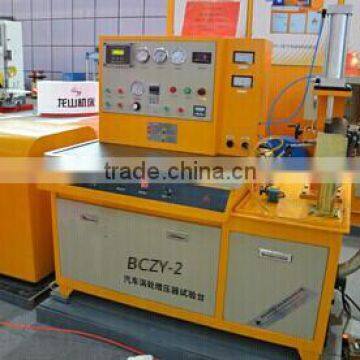

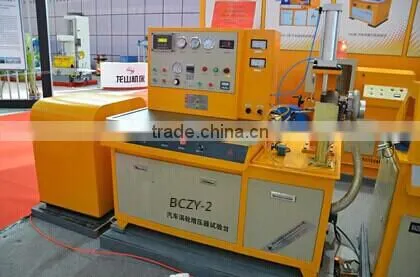

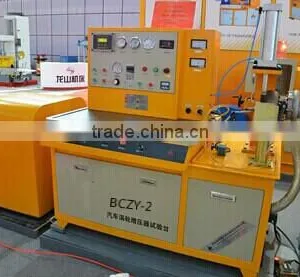

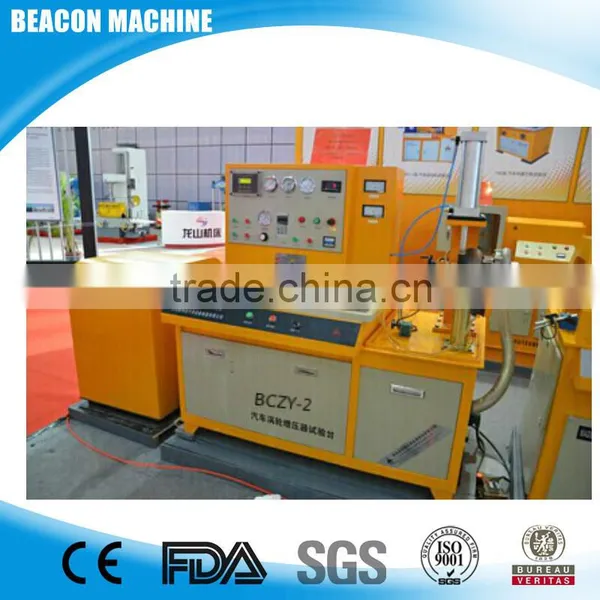

High Quality Test Bench BCZY-2 Automobile Turbocharger Test Bench

Name: High Quality Test Bench BCZY-2 Automobile Turbocharger Test Bench
Brand: Beacon
SKU: 130705017
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Beacon

Model Number:

BCZY-2

Power:

Other, Electronic, AC380V 50HZ

Taian Beacon Machine Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao or any port of China

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Beacon

Model Number BCZY-2

Power Other, Electronic, AC380V 50HZ

Usage Auto Testing Machine

high quality test bench BCZY-2 automobile turbocharger test bench

Product Description

1.Function Introduction

This test bench is applicable for testing performance of turbocharger on various models vehicles and can carry out dynamic test of boost pressure,

air flow and lubrication of turbocharger.

It can carry out contrast test of inlet & outlet air pressure difference of various turbochargers and read the values

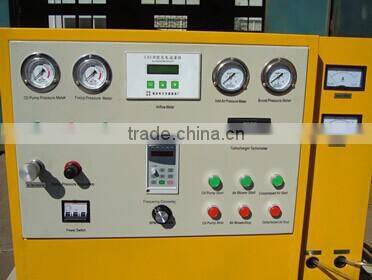

It adopts the advanced touch screen, control the test by touching the screen and read the test data immediately.

Soft keyboard inside, it can number, store and keep file for reference of the tested turbocharger,

and print the test result and wave form curve with a printer.

It achieves comprehensive dynamic test and data record of turbocharger.

2. Technical Parameter

Power	AC AC380V 50HZ (made to Measure)
Power of airflow generator	5.5KW (made to order)
Frequency converter power	7.5KW
RPM of airflow generator	0--20000r/min
Maximum air pressure of airflow generator	5KPa
Maximum flow rate of airflow generator	1500m³/h
Power of oil pump motor	750W
Rated pressure of oil pump	0.3MPa
Maximum displacement of oil pump	15L/min

----Photos

>>>we also have other model number test bench for injector and pump ,pls point the model name and then check details

diesel fuel injection pump test bench	common rail injection pump test bench	tester and heui
12PSB	CRS708c(can add EUI/EUP&Cambox) CRS709c(can add EUI/EUP&Cambox	CR1000 (200USD with piezo function)
BC3000	BC-CR708(most competitive price)	CRS3 (can add piezo testing function )
BC2001	CRS200	VP44 pump tester
BC2001PLC	CRS300(can add VP37 VP44 EUIEUP)	VP37 pump tester
BCS619	eps200	EUI EUP&Cambox
BCS815	BCS200	V3V4V5 pump tester
	BCS300	s60h
BCS205 TEST EBNCH	PQ1000(only 1300USD per set)	Heui hydraulic test bench
