Specifications
5 Gallon water bottle blow molding machine is easy to operate, low cost, highly efficient, working very stably.
5 Gallon water bottle blow molding machine detailed description:
Item |
HGA.C-1C(5 Gallon) |
|
Molding |
Clamping Stroke |
670mm |
|
Stretching Stroke |
650mm |
|
Bottom Stroke |
50mm |
|
Preform Distance |
305mm |
|
Cavities |
1 |
Container |
Max. Container Volume |
18.9ltr |
|
Neck Diameter Range |
55mm |
|
Max. Container Diameter |
270mm |
|
Max. Container Height |
500mm |
|
Preform Holder |
40 |
|
Theoretical Output |
110bph |
Electrical System |
Max. Heating Power |
65kw |
|
Heating Power |
30kw |
Air System |
Operating Pressure |
7-8kg/cm2 |

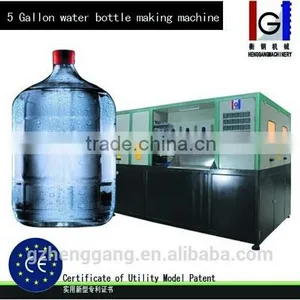

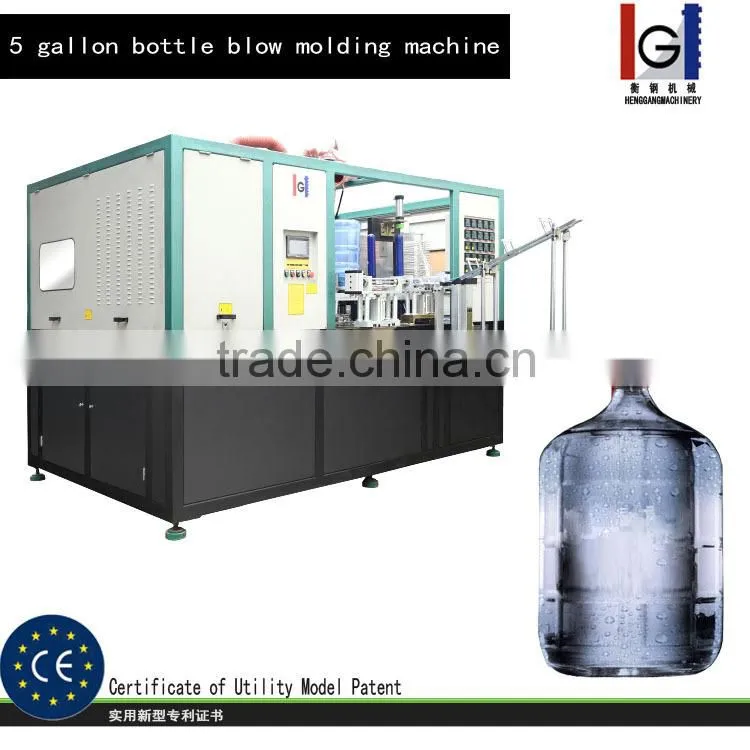

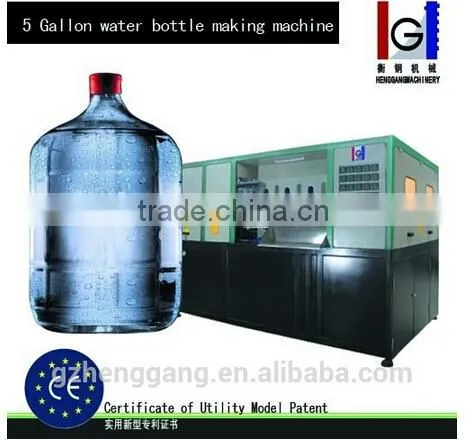

Machine photo of 5 Gallon water bottle blow molding machine
Factory overview:
We have two work shops to produce the 5 Gallon water bottle blow molding machine. One is to process the metallic components. We have CNC, drilling, grinding machines etc.. We can be sure about the perfect matching between different parts:
Technical support:
Besides the good quality of 5 Gallon water bottle blow molding machine, a good bottle design is very important for the client. We establish a experienced engineering team, to offer professional technical support to our clients.
Sample drawings made by CAD and UG software
Actual molds on site shooting:
Imported Electrical components:
The major electrical components of 5 Gallon water bottle blow molding machine are using imported famous brand. The high quality electrical components strenthen the stability of our Plastic pet cans blowing machines
After-sales service:
We will send engineers abroad once you decide to choose our 5 Gallon water bottle blow molding machine
Certifications
Our 5 Gallon water bottle blow molding machine has acquired the CE and other domestic patents
