Detailed Product Description of Food jar stretch blow molding machine:
Double Cavity,450bph for 5000ml, could blow all kinds of shapes, different volumes of beverage bottle, candy-jars, edible oil bottle, sauces bottle, detergent bottle, cosmetic bottle, medicine bottle, health products and other shapes of containers using PET as material.
Features of Food jar stretch blow molding machine:
1.Using hydro-pneumatic linkage mold clamping mechanism which runs stably with high speed and great clamping force.
2.The control system adopts man-machine interface with Mitsubishi PLC which is of high sensitivity and accuracy.
3.Using coated infrared heating lamps which enable fast and stable heating.
4.Using centralized noise-reducing air recycling system which minimize the noise as much as possible.
5.Using slide core in stepping unit which is easy to operate and saves energy.
Parameters of Food jar stretch blow molding machine:
Item |
HGA.C-1C |
|
Container |
Max. Container Volume |
5000 ml |
Neck Diameter Range |
140 mm |
|
Max. ContainerDiameter |
180 mm |
|
Max. Container Height |
280 mm |
|
Theoretical Output |
450 bph |
|
Molding |
Clamping stroke |
300 mm |
Stretching stroke |
350 mm |
|
Bottom Stoke |
50 mm |
|
Preform distance |
250 mm |
|
Preform Holder |
37 pcs |
|
Cavities |
1 No. |
|
|
Electrical System |
Max. Heating Power |
24 kw |
Heating Power |
7 kw |
|
Air System |
Operating Pressure |
7 kg/c m2 |
Low Air Consumption |
1600 ltr/min |
|
Blowing Pressure |
35 kg/c m2 |
|
High Air consumption |
1000 ltr/min |
|
Cooling Water |
Operating Pressure |
5-6 kg/c m2 |
Temperature |
8-12°C |
|
Flow rate |
30 ltr/min |
|
Machine |
Size(L×W×H) |
3400×1900×1850mm |
Weight |
2800 kg |
|

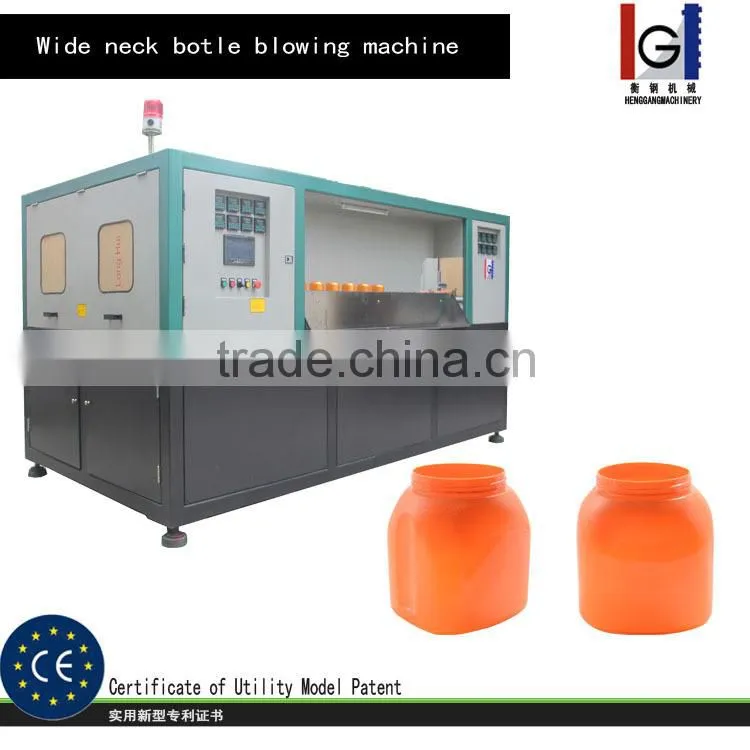

Machine Picture of Food jar stretch blow molding machine:

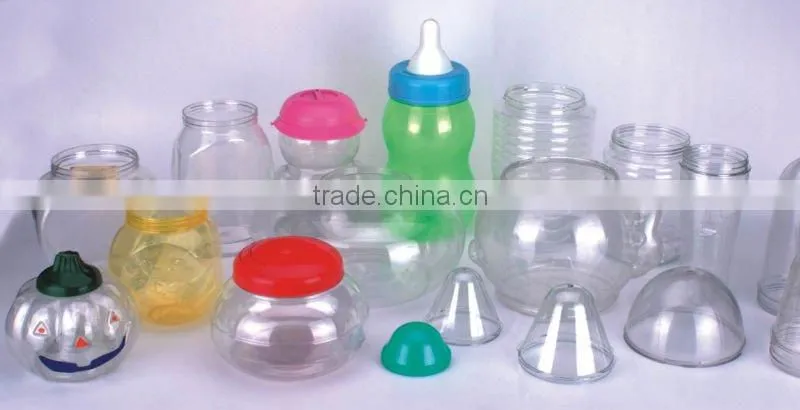

Product made by Food jar stretch blow molding machine:

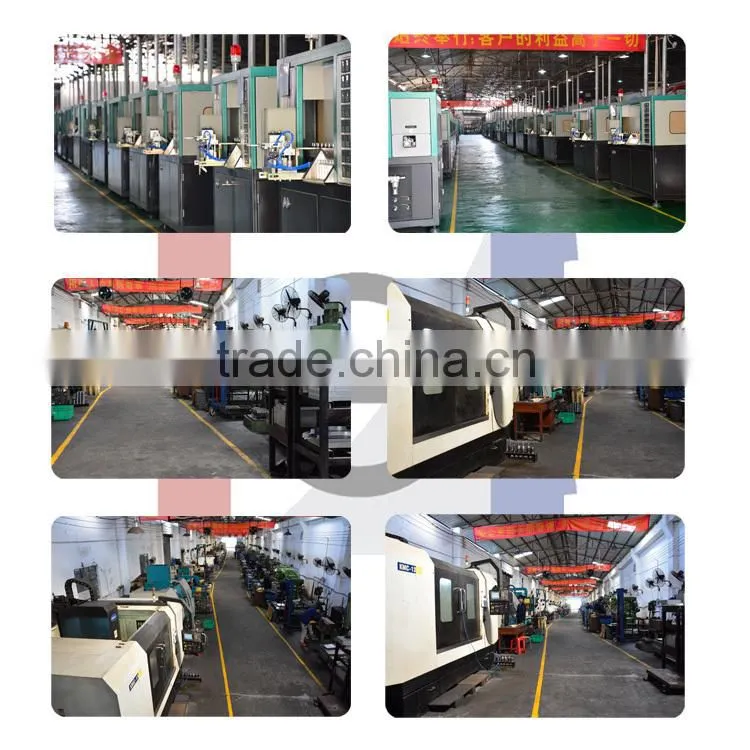

Factory overview:
We have two work shops to produce the Food jar stretch blow molding machine. One is to process the metallic components. We have CNC, drilling, grinding machines etc.. We can be sure about the perfect matching between different parts:
Technical support:
Besides the good quality of Food jar stretch blow molding machine, a good bottle design is very important for the client. We establish a experienced engineering team, to offer professional technical support to our clients.

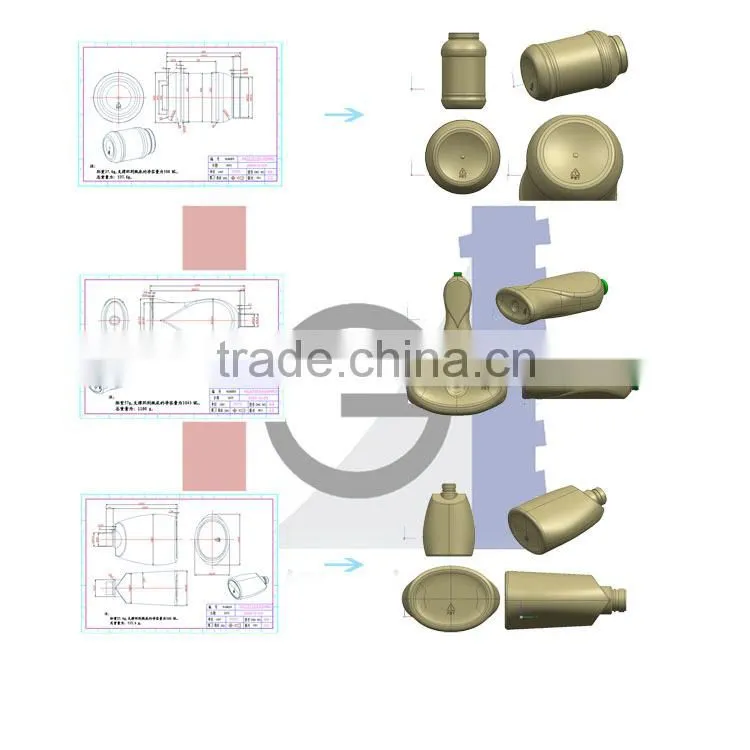

Sample drawings made by CAD and UG software

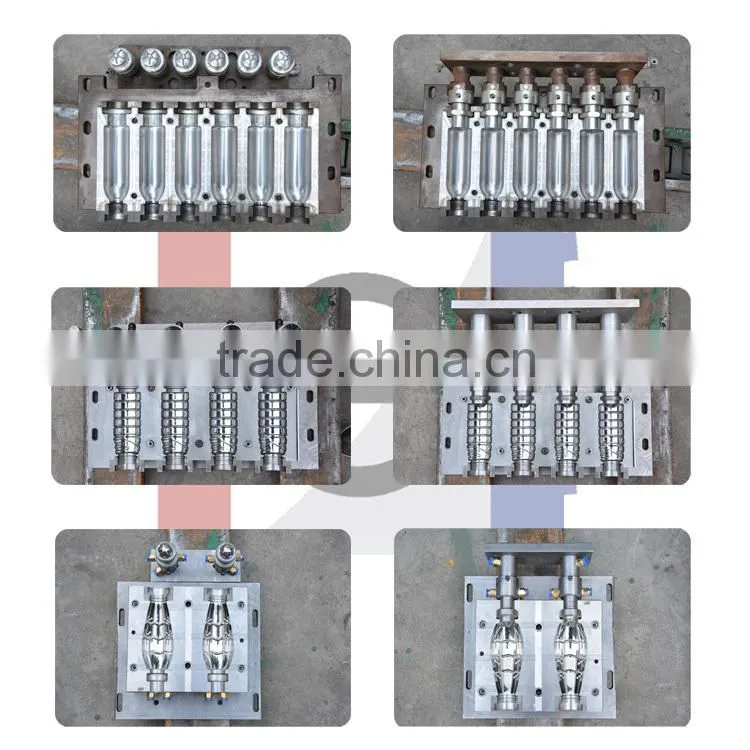

Actual molds on site shooting:
Imported Electrical components:
The major electrical components of Food jar stretch blow molding machine are using imported famous brand. The high quality electrical components strenthen the stability of our Plastic pet cans blowing machines

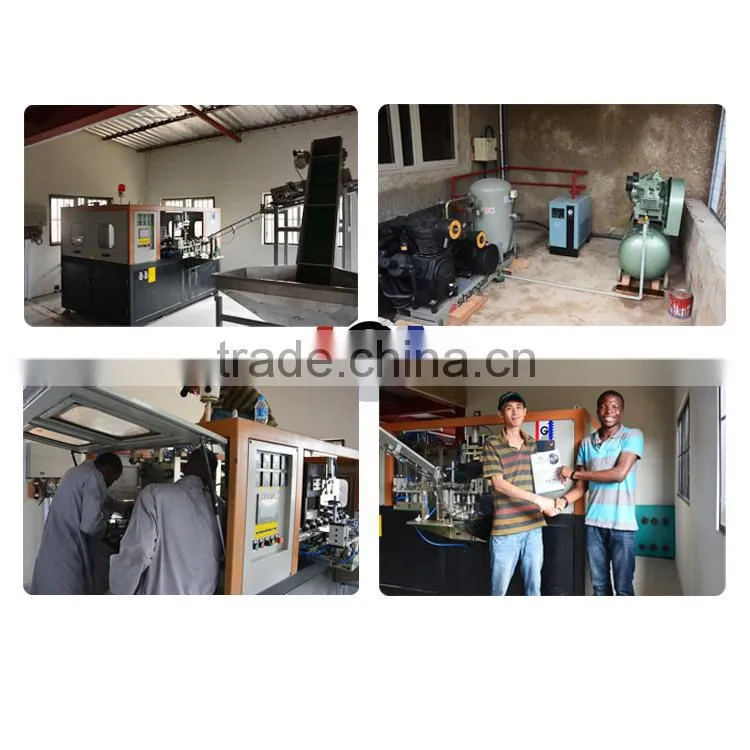

After-sales service:
We will send engineers abroad once you decide to choose our Food jar stretch blow molding machine
Certifications
Our Food jar stretch blow molding machine has acquired the CE and other domestic patents
