The details of single-cavity semi automatic pet blowing machine:
HGS series semi automatic blow molding machine is a two-steps PET blow molding machine, which adopts PLC control, direct pressure piston type pneumatic-hydraulic locking mold, high pressure blow. It can be used together with digital infrared heaters, suitable to blow different kinds of bottle. Model HGS-200B is especially designed for hot-filling bottle; it can blow tea and beverage bottle which can stand temperatures up to 88°C-95°C to meet the needs of pasteurization for hot filling beverage.
Suumary of the machine
Preform material:PET
Advantages of HGS-250A oil bottle semi automatic pet blowing machine:
- Direct pressure piston type pneumatic-hydraulic locking mold system makes a steady mold locking.
- Imported high pressure blowing valve together with Mitsubishi programmable controller makes its operation flexible and precise.
- The journey between open and close mold is long enough to ensure a strong interchangeability with simple assembly and disassembly
- The use of the centralized silencer used in high and low pressure exhaust helps to lower the noise effectively.
- Major electrical and pneumatic components come from the reliable and famous brands in Europe, America and Japan to ensure that the machine is of high quality, good stability and long lifespan.
- It can be used together with infrared heating device and is suitable to blow 0.3-2L bottle for mineral water and tea beverage, 0.1-0.7L bottle for cosmetics, and 0.3-5L bottle for oil bottle and jar.
The techincal parameters of semi automatic blow molding machine:
Contents |
HGS-250A |
Voltage (V/HZ) |
220/50 |
Pillar Space (mm) |
370×395 |
Running Pressure (Mpa) |
0.8 |
Mold Size (mm) |
170-260 |
Blowing pressure (Mpa) |
3.0 |
Open Mould Stroke (mm) |
250 |
Stretching Stoke (mm) |
350 |
Sealing Stroke (mm) |
50 |
Theoretical output (bph) |
500-980 |
Weight (Kg) |
490 |
Size (mm) |
1400×560×1550 |
Major technical parameter of Digital Infrared heating Machine:
Contents |
HGJ-B |
Picture |
|
Power supply |
3 Phase 4 wire 380V/50HZ |
Efficiency |
500-1200P/H |
Power |
5-8KW |
Mould Wall |
2.5-4.2mm |
Weight (Kg) |
400 |
Size |
1880×720×1200 |
The picture of semi automatic blow moulding machine:

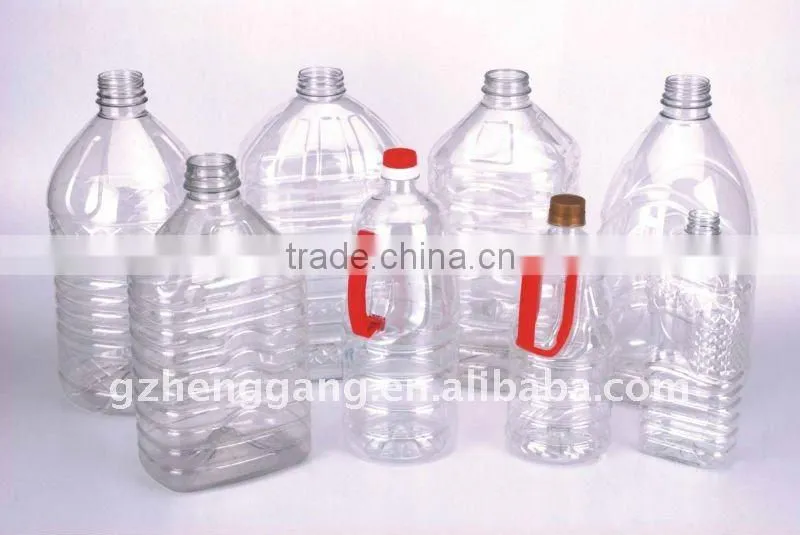

Product picture:

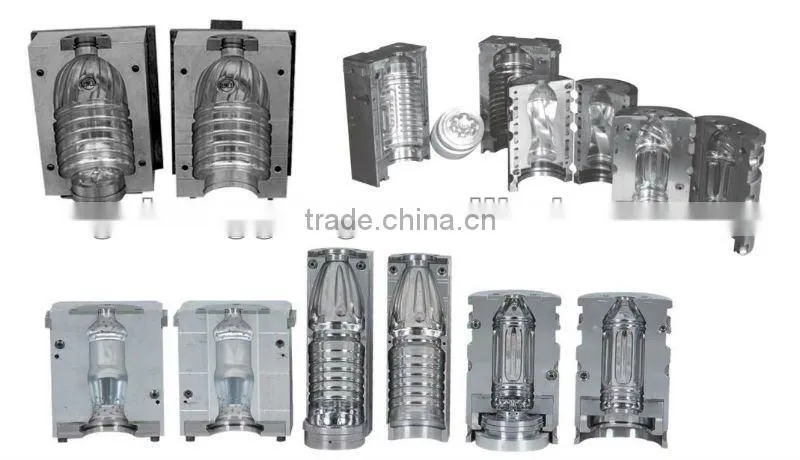

Blow mould:
