Detailed Product Description of Plastic beverage bottle blow moulding machine:
6 Cavity,2600bph for 1500ml, could blow all kinds of shapes, different volumes of hot filling PET bottles.
Preform material:PET
Output:2600BPH(1500ml)
Features of Plastic beverage bottle blow moulding machine:
1.Using hydro-pneumatic linkage mold clamping mechanism which runs stably with high speed and great clamping force.
2.The control system adopts man-machine interface with Mitsubishi PLC which is of high sensitivity and accuracy.
3.Using coated infrared heating lamps which enable fast and stable heating.
4.Using centralized noise-reducing air recycling system which minimize the noise as much as possible.
5.Using slide core in stepping unit which is easy to operate and saves energy.

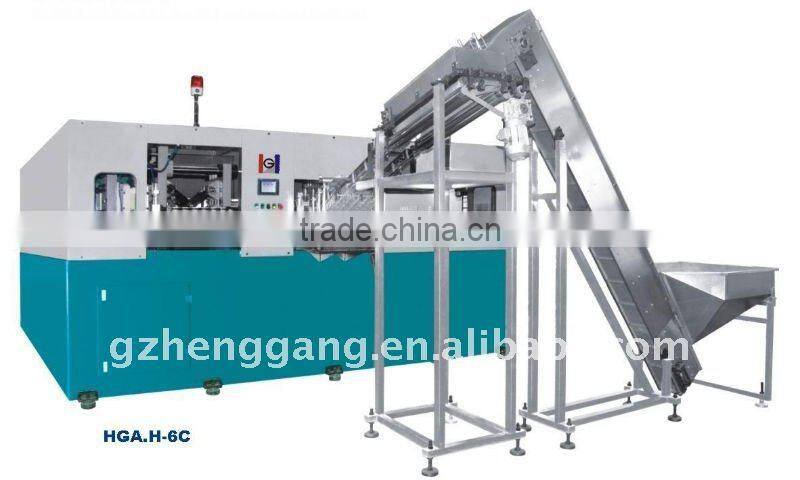

Machine Picture of Plastic beverage bottle blow moulding machine:
Product made by Plastic beverage bottle blow moulding machine:
Parameters of Plastic beverage bottle blow moulding machine:
Item |
HGA.H-6C |
|
Container |
Max. Container Volume |
1500 ml |
Neck Diameter Range |
18-38mm |
|
Max. ContainerDiameter |
98 mm |
|
Max. Container Height |
320 mm |
|
Theoretical Output |
2600 bph |
|
Molding |
Clamping stroke |
120 mm |
Stretching stroke |
400 mm |
|
Bottom Stoke |
60 mm |
|
Preform distance |
114 mm |
|
Preform Holder |
96 pcs |
|
Cavities |
6No. |
|
|
Electrical System |
Max. Heating Power |
60 kw |
Heating Power |
35 kw |
|
Air System |
Operating Pressure |
8 kg/c m2 |
Low Air Consumption |
2000 ltr/min |
|
Blowing Pressure |
30 kg/c m2 |
|
High Air consumption |
24000 ltr/min |
|
Cooling Water |
Operating Pressure |
7 kg/c m2 |
Temperature |
10-12°C |
|
Flow rate |
40 ltr/min |
|
Machine |
Size(L×W×H) |
5350×2100×2500mm |
Weight |
6500 kg |
|
Our Plastic beverage bottle blow moulding machine has already accquired the CE certificate:
Other domestic patents of our Plastic beverage bottle blow moulding machine:
