Blow Moulding Machine for Chemical Bottles
- Guangzhou
- Money Gram
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PET | Blow Moulding Type | Stretch Blow Moulding | |
| Automatic | Yes | Place of Origin | Guangdong, China | |
| Brand Name | HENGGANG | Model Number | HGA.C-2C(1000ml) | |
| Voltage | 380V | Power(W) | 32KW | |
| Dimension(L*W*H) | 2520x1750x1750mm | Weight | 2600kg | |
| Certification | ce | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Detailed Product Description of Blow moulding machine for chemical bottles:
Suitable to blow all kinds of chemical pharmaceutical bottles.
Features of Blow moulding machine for chemical bottles:
1.Using hydro-pneumatic linkage mold clamping mechanism which runs stably with high speed and great clamping force.
2.The control system adopts man-machine interface with Mitsubishi PLC which is of high sensitivity and accuracy.
3.Using coated infrared heating lamps which enable fast and stable heating.
4.Using centralized noise-reducing air recycling system which minimize the noise as much as possible.
5.Using slide core in stepping unit which is easy to operate and saves energy.
Parameters of Blow moulding machine for chemical bottles:
Item | HGA.C-6C | |
Container | Max. Container Volume | 1000 ml |
Neck Diameter Range | 50 mm | |
Max. ContainerDiameter | 110 mm | |
Max. Container Height | 330 mm | |
Theoretical Output | 1800 bph | |
Molding | Clamping stroke | 150 mm |
Stretching stroke | 400 mm | |
Bottom Stoke | 50 mm | |
Preform distance | 130 mm | |
Preform Holder | 89 pcs | |
Cavities | 2 No. | |
Electrical System | Max. Heating Power | 32 kw |
Heating Power | 10 kw | |
Air System | Operating Pressure | 7 kg/c m2 |
Low Air Consumption | 1000 ltr/min | |
Blowing Pressure | 35 kg/c m2 | |
High Air consumption | 1000 ltr/min | |
Cooling Water | Operating Pressure | 5-6 kg/c m2 |
Temperature | 8-12°C | |
Flow rate | 30 ltr/min | |
Machine | Size(L×W×H) | 2520×1750×1750mm |
Weight | 2600 kg | |

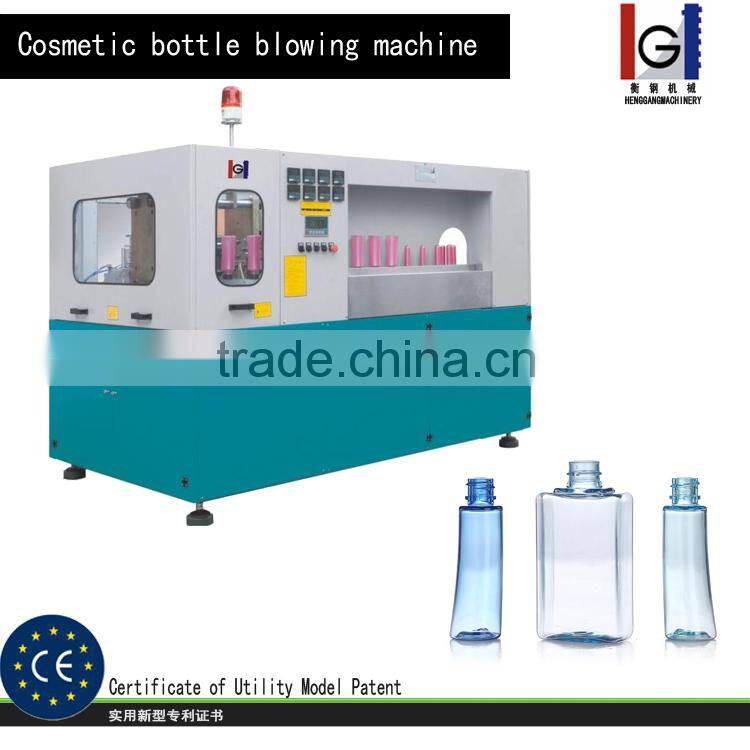

Machine photo of Blow moulding machine for chemical bottles
Factory overview:
We have two work shops to produce the Blow moulding machine for chemical bottles. One is to process the metallic components. We have CNC, drilling, grinding machines etc.. We can be sure about the perfect matching between different parts:
Technical support:
Besides the good quality of Blow moulding machine for chemical bottles, a good bottle design is very important for the client. We establish a experienced engineering team, to offer professional technical support to our clients.
Sample drawings made by CAD and UG software
Actual molds on site shooting:
Imported Electrical components:
The major electrical components of Blow moulding machine for chemical bottles are using imported famous brand. The high quality electrical components strenthen the stability of our Plastic pet cans blowing machines
After-sales service:
We will send engineers abroad once you decide to choose our Blow moulding machine for chemical bottles
Certifications
Our Blow moulding machine for chemical bottles has acquired the CE and other domestic patents
