Detailed Product Description of PET cosmetic bottle blow molding machinery:
Double Cavity,1800bph for 900ml, could blow all kinds of shapes, different volumes of beverage bottle, candy-jars, edible oil bottle, sauces bottle, detergent bottle, cosmetic bottle, medicine bottle, health products and other shapes of containers using PET as material.
Preform material:PET
Output:1800BPH(900ml)
Features of PET cosmetic bottle blow molding machinery:
1.Using hydro-pneumatic linkage mold clamping mechanism which runs stably with high speed and great clamping force.
2.The control system adopts man-machine interface with Mitsubishi PLC which is of high sensitivity and accuracy.
3.Using coated infrared heating lamps which enable fast and stable heating.
4.Using centralized noise-reducing air recycling system which minimize the noise as much as possible.
5.Using slide core in stepping unit which is easy to operate and saves energy.
Parameters of PET cosmetic bottle blow molding machinery:
Item |
HGA.C-2C |
|
Container |
Max. Container Volume |
900 ml |
Neck Diameter Range |
50 mm |
|
Max. ContainerDiameter |
100 mm |
|
Max. Container Height |
280 mm |
|
Theoretical Output |
1800 bph |
|
Molding |
Clamping stroke |
150 mm |
Stretching stroke |
400 mm |
|
Bottom Stoke |
50 mm |
|
Preform distance |
130 mm |
|
Preform Holder |
89 pcs |
|
Cavities |
2 No. |
|
|
Electrical System |
Max. Heating Power |
32 kw |
Heating Power |
7 kw |
|
Air System |
Operating Pressure |
7 kg/c m2 |
Low Air Consumption |
1300 ltr/min |
|
Blowing Pressure |
35 kg/c m2 |
|
High Air consumption |
1300 ltr/min |
|
Cooling Water |
Operating Pressure |
5-6 kg/c m2 |
Temperature |
8-12°C |
|
Flow rate |
30 ltr/min |
|
Machine |
Size(L×W×H) |
2520×1750×1750mm |
Weight |
2000 kg |
|

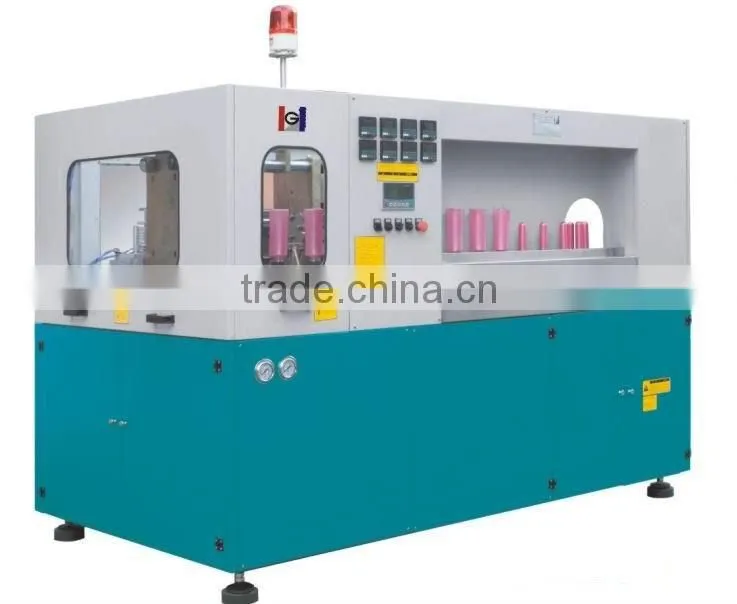

Machine Picture of PET cosmetic bottle blow molding machinery:

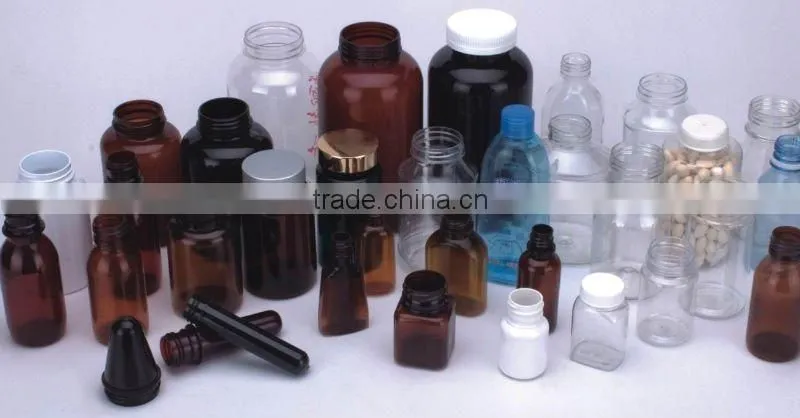

Product Picture of PET cosmetic bottle blow molding machinery:
All the cavity molds(moulds)of PET cosmetic bottle blow molding machinery are manufactured by ourselves. We have our own CNC processing machine and experienced engineer, who has been making cavity molds at least 5 years. Besides the cavity molds, other hardware parts are also produced by ourselves. Thus we have strong confidence in the stability of our machine because all parts can jointed and worked as a integrated unit.
The most frequently used material for molds are Aluminum, S136(stainless iron):
Our PET cosmetic bottle blow molding machinery has already accquired the CE certificate:
Other domestic patents of our auto PET cosmetic bottle blow molding machinery:
