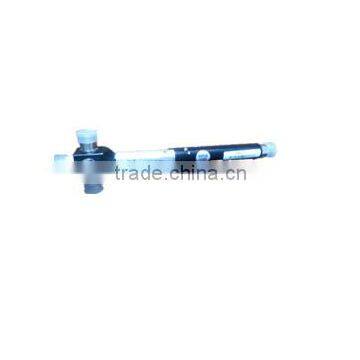

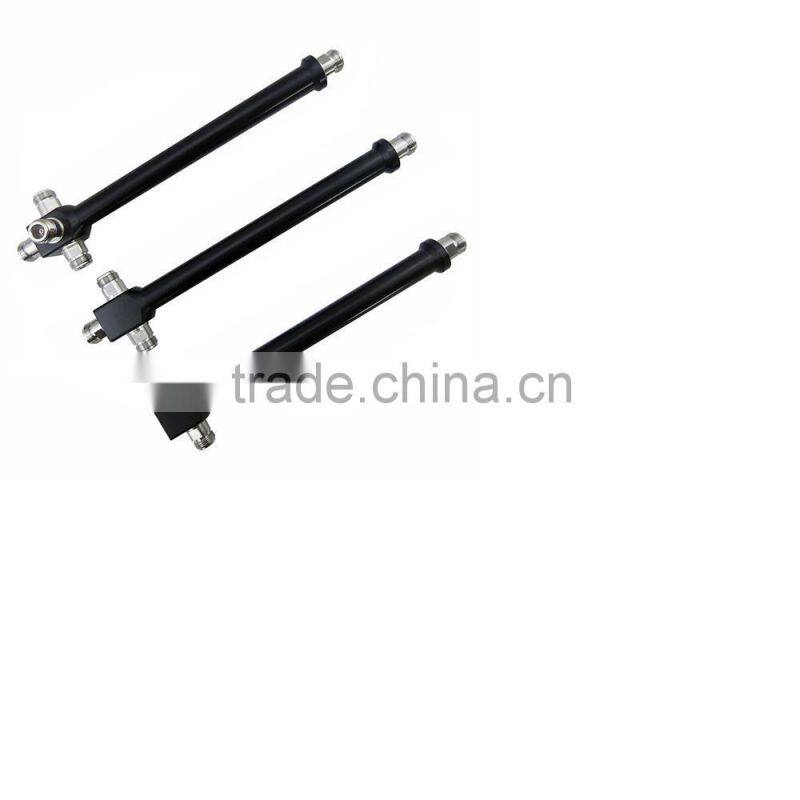

Cavity 800-2500Mhz 300W 4 way Power Splitter
Product number: XL-l-4
Electrical Specifications
Frequency Range 800~2500MHz
VSWR ≤1.3
Operation Model 4 way
Insertion Loss ≤6.4dB
Amplitude Imbalance ≤0.55dB
Maximum Input Power 300W
Normal Impedance 50Ω
IM.3rd Order <-150dBc(2×43dBm)
Connector N-F
Operating Temperature -40℃~ +60℃
Operating Humidity 5%~95%
Mechanical specifications
Dimensions(L ×W× H ) 250mm×61mm×25mm
Weight 350g
