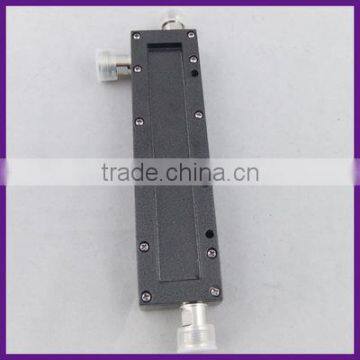

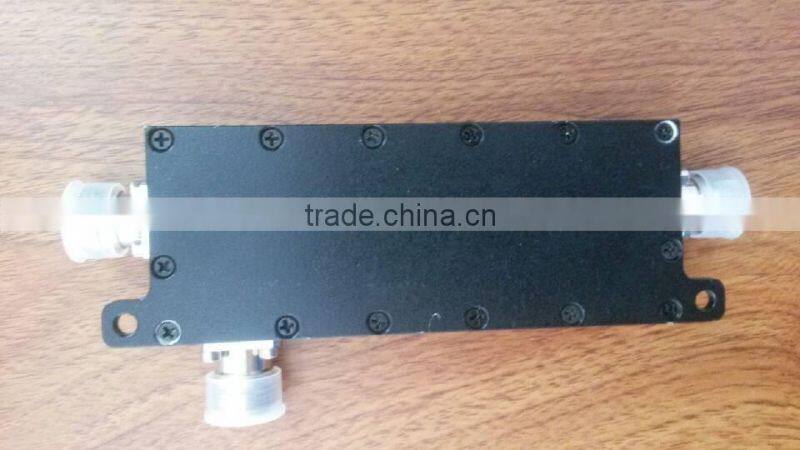

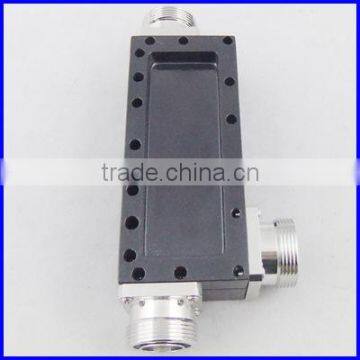

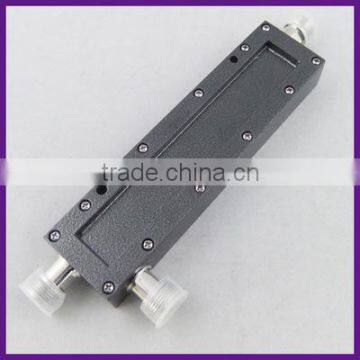

800-2700MHz RF Directional Coupler
Specifications

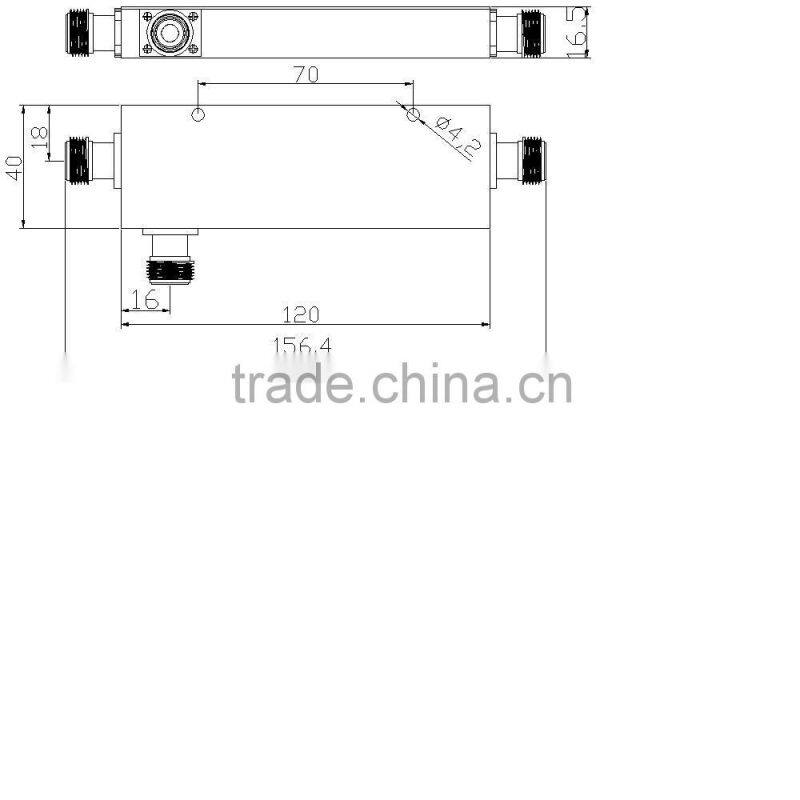

Product Number | XL-DC-0827-5 | XL-DC-0827-6 | XL-DC-0827-7 | |
Frequency Range | 800~2700MHz | 800~2700MHz | 800~2700MHz | |
VSWR | <1.3 | <1.3 | <1.3 | |
Coupling | 5±0.5dB | 6±0.5dB | 7±0.5dB | |
Insertion Loss | 2.0dB | 1.6dB | 1.3dB | |
Isolation | 25dB | 25dB | 25dB | |
Im.3rd Order | -150dBc(2*43dBm) | -150dBc(2*43dBm) | -150dBc(2*43dBm) | |
Maximum Input Power | 300W | 300W | 300W | |
Normal Impedance | 50 | 50 | 50 | |
Connector | N-F | N-F | N-F | |
Operating Temperature | -50℃~+70℃ | -50℃~+70℃ | -50℃~+70℃ | |
Operating Humidity | 5%~95% | 5%~95% | 5%~95% | |
Dimensions(L×W×H) | 156mm×58mm×17mm | 156mm×58mm×17mm | 156mm×58mm×17mm | |
Weight | 285g | 285g | 285g | |
Product N umber | XL-DC-0827-10 | XL-DC-0827-15 | XL-DC-0827-20 | |
Frequency Range | 800~2700MHz | 800~2700MHz | 800~2700MHz | |
VSWR | <1.3 | <1.3 | <1.3 | |
Coupling | 10±0.8dB | 15±1dB | 10±1dB | |
Insertion Loss | 0.8dB | 0.4dB | 0.25dB | |
Isolation | 25dB | 25dB | 25dB | |
Im.3rd Order | -150dBc(2*43dBm) | -150dBc(2*43dBm) | -150dBc(2*43dBm) | |
Maximum Input Power | 300W | 300W | 300W | |
Normal Impedance | 50 | 50 | 50 | |
Connector | N-F | N-F | N-F | |
Operating Temperature | -50℃~+70℃ | -50℃~+70℃ | -50℃~+70℃ | |
Operating Humidity | 5%~95% | 5%~95% | 5%~95% | |
Dimensions(L×W×H) | 156mm×58mm×17mm | 156mm×58mm×17mm | 156mm×58mm×17mm | |
Weight | 285g | 285g | 285g | |
