2000-20000kVA New Outdoor Oil- immersed Power Transformer
- 2500 Set / Sets per Month
- Qingdao
- T/T Credit Card
Product Details
Place of Origin: | Shandong, China | Brand Name: | Juneng | Model Number: | SZ11 |
Usage: | Power | Phase: | Three | Coil Structure: | Toroidal |
Coil Number: | Other, two-winding |
Product Description

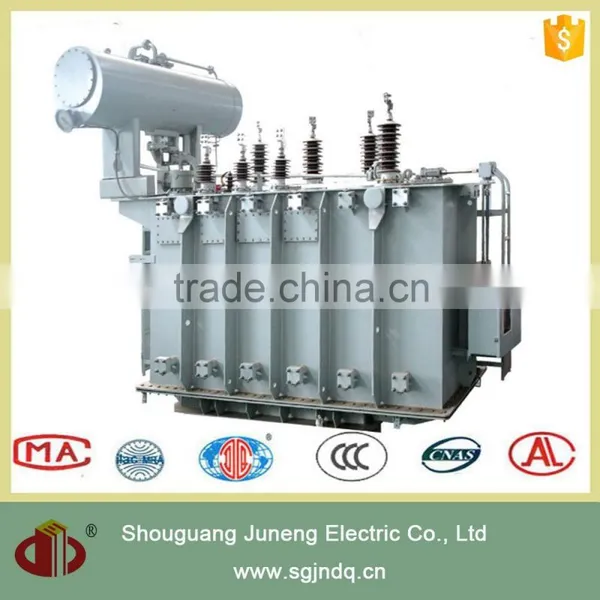

2000-20000kVA New Outdoor Oil- immersed Power Transformer
1.SZ11 transformer is a new three-phase oil-immersed transformer with a capacity of 630-3150 KVA and frequency 50 Hz for the power transmission and distribution line of industrial enterprises and rural areas.
2.The iron core is made up of cold-rolled silicon-steel plate in high-quality. High voltage winding group is made up of high-quality oxygen-free copper liner lines and it adopts multilayered drum type structure.
3.Long service time and reliable quality: the box cover and edge is connected by bolt or welded tightly for preventing the meet of oil and air.
4. Compact design, new material and technology, noise reducing
5.Good-looking appearance, advanced technical-economic index to reach the high level of developed countries.
6.It includes OLTC (on-load tap changer) and no-load tap changer with large voltage regulating range. Please remark when ordering.
Standard
GB1094 power transformer
JB/T 3837 compiling method for product model
GB/T6451-2008 three phase oil immersed power transformer technical parameter and requirement
Main technical parameter
rated capacity kVA | no-load loss W | load loss W | impedance voltage % | L*W*H | guage |
2000 | 2304 | 19238 | 6.5 | 2545*1880*2600 | 1070*1070 |
2500 | 2720 | 20644 | 6.5 | 2610*2050*2670 | 1070*1070 |
3150 | 3232 | 24710 | 7 | 2700*2090*2690 | 1475*1475 |
4000 | 3872 | 29156 | 7 | 2770*2300*2800 | 1475*1475 |
5000 | 4640 | 34200 | 7 | 2865*2425*2870 | 1475*1475 |
6300 | 5632 | 36765 | 7.5 | 3090*2285*3150 | 1475*1475 |
8000 | 7872 | 40613 | 7.5 | 3230*3050*3280 | 1475*1475 |
10000 | 9280 | 48051 | 7.5 | 3380*3150*3370 | 1475*1475 |
12500 | 1094 | 56858 | 8 | 3550*3190*3430 | 1475*1475 |
16000 | 1317 | 70319 | 8 | 3910*3350*3580 | 1475*1475 |
20000 | 1557 | 82783 | 8 | 3850*3400*3620 | 1475*1475 |
NOTE: the above parameter is only for reference. our company reserves the right to change data.
1.payment terms: T/T with 30% deposit or L/C
2.packing detail: Main body in nude and the accessories packing in seaworthy standard wooden case or acc to the requirement of customers.
3.delivery time: usually within 30 days after the deposit
4.delivery by sea, by train, by air and by express delivery
terms: FOB CIF EXW
- Quality Assurance--From the very beginning, JUNENG ensures quality in every step to achieve the best quality.
- Experience Sharing--With over 10 years’ experience in power industry, JUNENG brings you an optimized solution.
- Quick Response--In response to your needs without delay, JUNENG knows the value of your time.
Shouguang Juneng Electric Co., Ltd is located in Shouguang City Shandong Province, China.
Main Products:
high.low voltaeg switchgear assemblies, switchgear cabinet, intelligent prefabricated substation, 35kv and below oil immersed and dry type transformer, amorphous alloy transformer, special transformer, power lighting distribution box, ring main unit, cable branch box,vacuum circuit breaker etc.
Main Market:
As long-term suppliers of state grid, provincial power grid as Anhui, Tianjin, Shanxi, Shananxi etc and CNPC
CNOOC, the products of Juneng have been sold nationwide and exported to Africa, Southeast Asia and some other foreign countries and regions

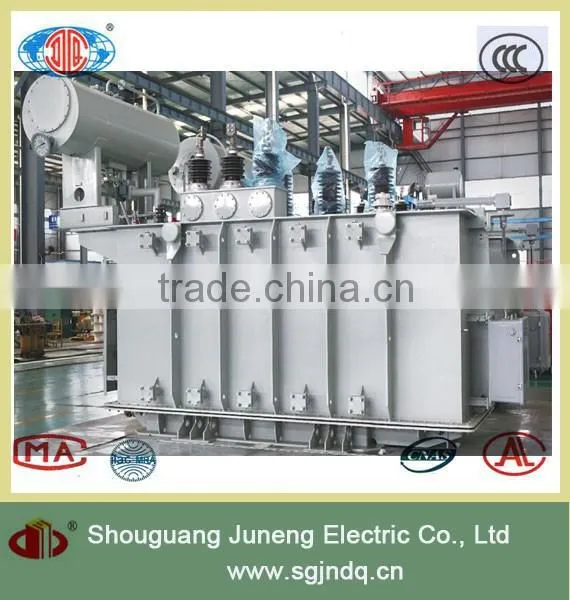

Main transformer display
Workshop & Equipment
certificate
1. What's the payment terms?
T/T, L/C or customized.
2. What's the delivery time?
Usually within 30 working days after receipt of the deposit.
3. what kind of certificates can you offer?
ISO9001 ISO14001 OHASA18001 IEC60439 CCC type test report .
we will check and inspect each item before devilery.
4. How to contact you?
Pls refer to the following,
Contact Us
- Shouguang Juneng Electric Co., Ltd.
- Contact nameYang Yang
- Phone86-536-5189705
- AddressNo. 1757, South Bohai Road, Shouguang
