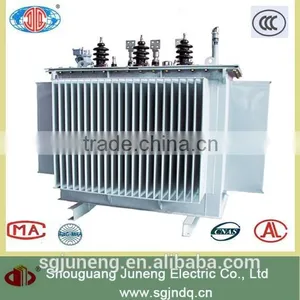

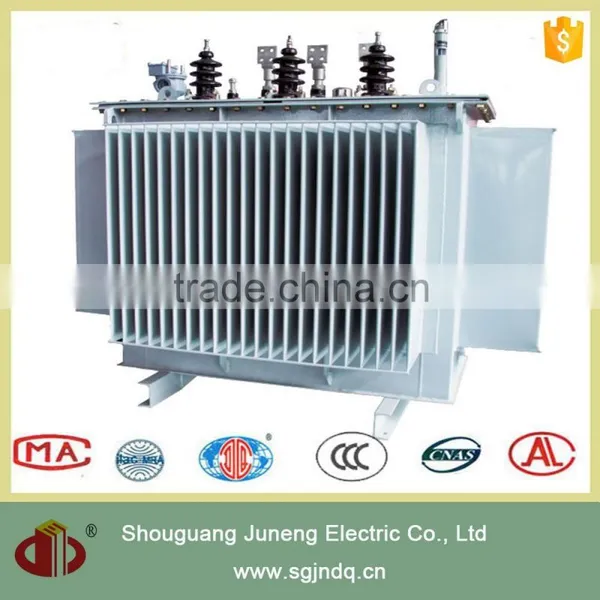

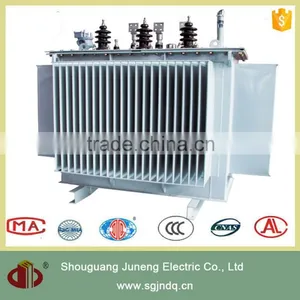

11kv 800kva Three-phase Distribution Transformer manufacturer China
1)100% manufacturer
2)OEM of ABB,"Gold Partner" with Schneider
3)Over 20 years product exprirence
4)Advanced production equipments from Germany, Finland, Japan
11kv 800kva Three-phase Distribution Transformer manufacturer China
11kv 800kva Three-phase Distribution Transformer manufacturer China
Standard:
1) GB1094 power transformer
2) GB/T 3837 Model establishment method
3)GB/T6451-2008oil-immersed three-phases transformer power technical parameters and requirements
4) IEC60076
Product introduct
l Rated voltage during 6-35kV
l Capacity range 30-20000kVA
l Frequency: 50HZ /60HZ
l Vector group: Dyn11, Yyn0, or others
l Cooling: ONAN/ ONAF
l Parts: Oil draining valve;Oil level indicator
Application:
The product has been widely used outdoor , such as power transmission and transformation system for agriculture, village, communities, mining, petrochemical enterprise, light industry area and etc.
6kv 10kv S13 series distribution transformer with off-circuit tap changer
11kv 800kva Three-phase Distribution Transformer manufacturer China
| rated capacity | no-load loss | load loss | impedance voltage% | gauge |
| 30 | 80 | 630/600 | 4 | 400*450 |
| 50 | 100 | 910/870 | 4 | 400*450 |
| 63 | 110 | 1090/1040 | 4 | 400*450 |
| 80 | 130 | 1310/1250 | 4 | 400*450 |
| 100 | 150 | 1580/1500 | 4 | 400*450 |
| 125 | 170 | 1890/1800 | 4 | 400*450 |
| 160 | 200 | 2310/2200 | 4 | 400*450 |
| 200 | 240 | 2730/2600 | 4 | 400*450 |
| 250 | 290 | 3200/3050 | 4 | 550*550 |
| 315 | 340 | 3830/3650 | 4 | 550*550 |
| 400 | 410 | 4520/4300 | 4 | 550*550 |
| 500 | 480 | 5410/5150 | 4 | 660*660 |
| 630 | 570 | 6200 | 4.5 | 660*660 |
| 800 | 700 | 7500 | 4.5 | 660*660 |
| 1000 | 830 | 10300 | 4.5 | 820*820 |
| 1250 | 970 | 12000 | 4.5 | 820*820 |
| 1600 | 1170 | 14500 | 4.5 | 820*820 |
NOTE: 1.the above parameter is only for reference. our company reserves the right to change data.
2. the load loss values above slash in the table apply to Dyn11 or Yzn11 while the values below slash are subject to Yyn0.
1

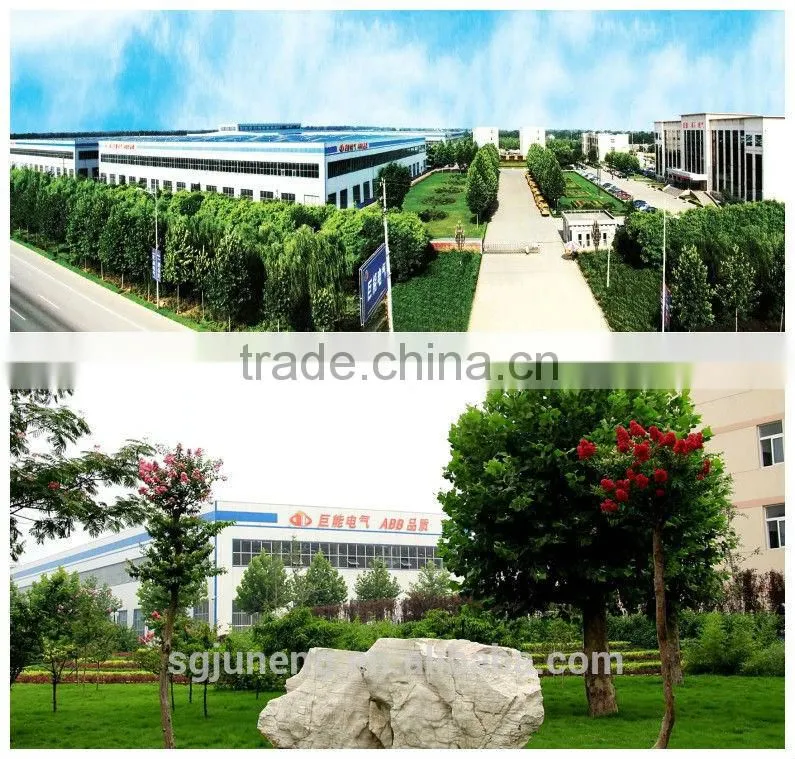

Juneng Electrical is specialized in the production of a series of electrical products, such as 35 kV and below oil immersed and dye-type transformer, amorphous alloy transformer, special transformer, switch cabinet and pre-installed intelligent substation.
Juneng Electrical is one of the OEM company for ABB company And Gold Partner" strategic cooperation agreement with Schneider.

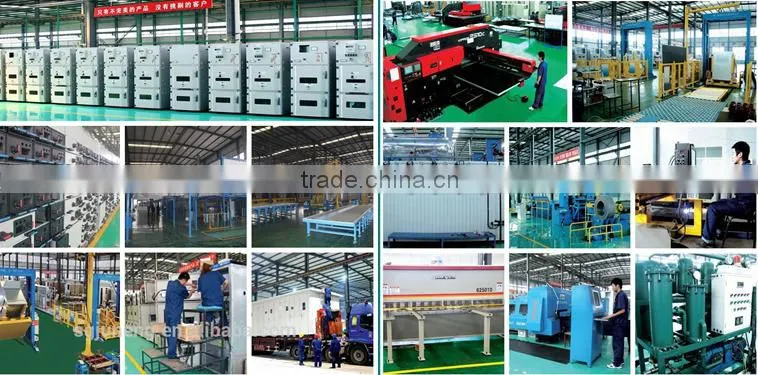

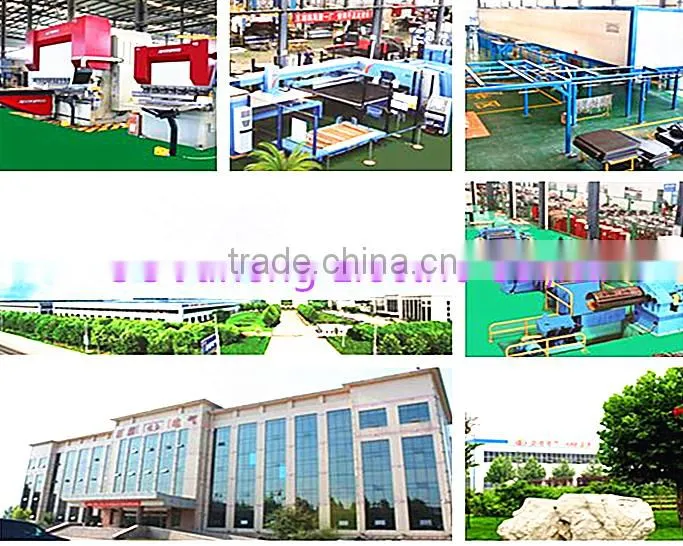

1kv Juneng Electrical has imported many advanced production equipments (CNC machining equipment and large transformerrockover table for instance) from Germany, Finland, Japan and other countries
800kva Three-phase Distribution Transformer manufacturer China
1. Main body in nude and the accessories packing in seaworthy standard wooden case or acc to the requirement of customers.
2. Port of loading: Qingdao Port
11kv 800kva Three-phase Distribution Transformer manufacturer China
1.PAYMENT TERMS
1)Payment: 30% deposit in advance, balanced 70% to be paid before dispatch. L/C
2)Delivery time: usually within 30 days after the deposit acc to order quantity.
2.WHAT WE CAN DO BETTER
- Quality Assurance--From the very beginning, JUNENG ensures quality in every step to achieve the best quality.
- Experience Sharing--With over 10 years’ experience in power industry, JUNENG brings you an optimized solution.
- Quick Response--In response to your needs without delay, JUNENG knows the value of your time.
3.MAIN PRODUCTS

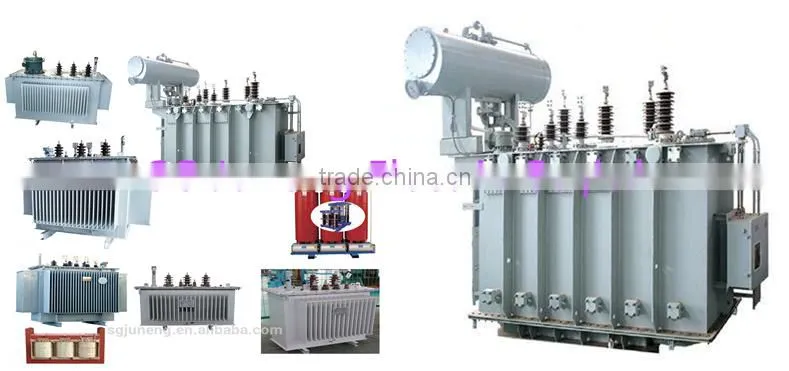

Power transformer
- Three phase oil immersed transformer
- Dry type transformer
- OEM
v 800kva Three-phase Distribution Transformer manufacturer China
Our company has passed the ISO9001 International Quality System Certification, 14000 Environmental Management
System Certification, 18000 Occupational Health and Safety Management System Certification and 3C Mandatory Product
Certification from China QualityCertificationCenter.In 2013, Juneng Electrical signed a "Gold Partner" strategic cooperation
agreement with Schneider; In 2014, our company established a "Low Voltage Longterm Close Cooperative Partnership"
with ABB, is authorized to produce ABB MDmaxST cabinet, and became a low voltage union plant of ABB Co., Ltd(China)
11kv 800kva Three-phase Distribution Transformer manufacturer China
Any inquiry or question, pls contact me
