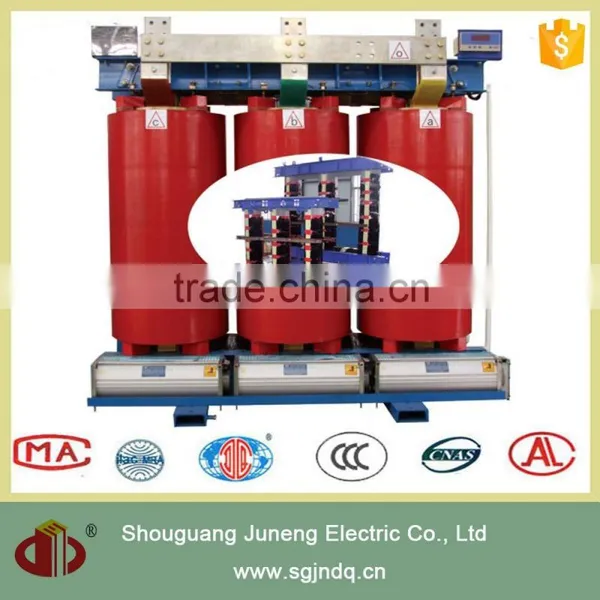

Epoxy Resin Casting Type Power Dry Transformer

 General:

The dry-type transformer is casted with epoxy resin which are made of high quality material by means of a strict process with advanced production and testing devices. The product features high reliability and long service life. In accordance with different operation equipment, it can be equipped with different protection casing or without casing.

1.SCB10 is a three-phase,oil immersed,expoxy resin casting and dry type transformer with a capacity of 30-3150 KVA and frequency 50 HZ..

2.it applies to high building,commercial center,airport,tunnel,chemical plant,nuclear power plant, shipping, petrochemical industries and other special environmental occassions.

3.low off-load loss, off-load current and noise.

4.capable of safety, pollution-free and fire-proof.

4.high mechannical intensity and short-circuit resisitance.

5.the material of iron core is cold-rolled silicon steel sheet.

6.the coil of LV winding is foil winding while  the coil of HV winding is multiplayer structure.

7.Standard

 7.1 IEC60076-11 : 2004 dry-type power transformers

 7.2 GB1094.1-1996 powers transformers

 7.3 GB1094.11-2007  dry-type power transformers

 7.4 GB/T10228-2008  dry-type power transformers technical parameters and requirements

 7.5 JB/T10088-2004  6kv-500kv  power transformer sound level grade

Technical Parameter

  6kV 10kV SCB10 type dry distribution transformer with off-circuit tap changer no-load loss and load loss

Main Transformer  Display

Workshop & Equipment

certificate
