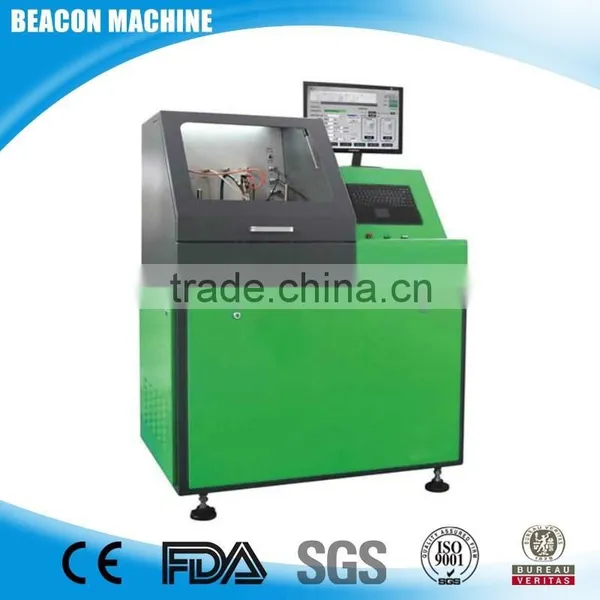

Help CenterCR-BC816D Bosch Common Rail Diesel Injector Test Bench by Manufacturer
Related Products
-
Best Selling Bosch EPS200 Common Rail Diesel Fuel Injector Auto Electrical Test Bench Add Printer New ProductsNegotiableMOQ: 1 Set -
Best Selling Items CRI-BC816E Used Common Rail Diesel Injector Calibration MachineNegotiableMOQ: 1 Set
-
the Popular Bosch EPS200 Diesel Common Rail Test Bench for Diesel Fuel Injection PumpsNegotiableMOQ: 1 Set
-
The Popular Bosch BCS205 Used Common Rail Diesel Injector Starter Test Bench for SaleNegotiableMOQ: 1 Set
-
2015 CRS-2000 High Pressure Common Rail Diesel Injector Test Bench With CE&ISO From Beacon ManufacturerNegotiableMOQ: 1 Set
| 1. Rated output power | 5.5KW |
| 2. Test rang of rail pressure | 0-1800bar |
| 3.Oil pump rotation speed | 0-3500rpm |
| 4.Test precision of rail pressure | ±2Mpa |
| 5.Test temperature of test oil | 40±2°C |
| 6. Filter precision of test oil | less than 5μ |
| 7. Capacity of tank | 28L |
| 8. Dimension | 1200X900X1650MM |
| 9. Aggregate weight | 350KG |
| 10. Electricity |
380V, 50Hz, 3 phase 220V,60Hz, 3 phase
|
Function
1.Application: Bosch,Delphi,Denso,Siemens solenoid valve common rail injector.
2.High pressure cleaning to remove the impurities.
3.Measure the injected & return fuel quantity under full-loaded, idling, pre-injection and emission status.
4.Sealing performance test :check whether nozzle, nozzle cap and solenoid valve leaks oil
5.Check whether the injector orifice is obstructed through atomization test.
6.User can add and edit the data by themselves.
7.Save and print the testing results & customer information.
Characteristics

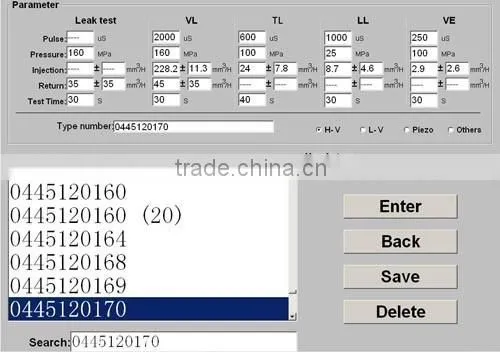

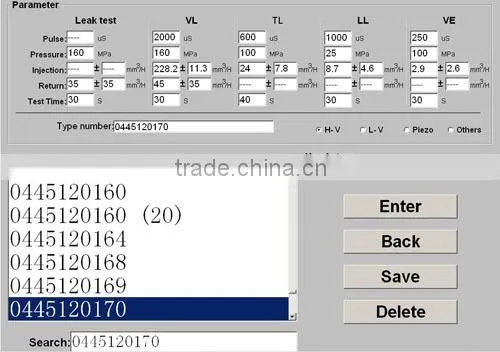

1. Computer control, 19” LCD operation..
2. Germany flow sensor.
3.Bosch common rail system (external connection DRV to Bosch rail with DRV) is used.
4. Rail pressure is controlled accurately by DRV.
5. Original Bosch CP1 pump and common rail system are equipped.
6.Stainless steel fuel tank with industrial air-conditioner inside .
7.Frequency converter is used to change the rotation speed.
8. High test precision, simple operation, low noise, and saving energy.
>> details photos

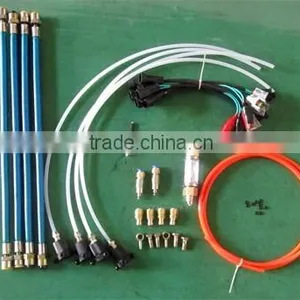

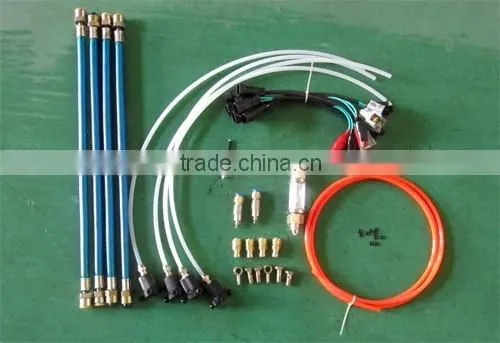

Accessories
Taian Beacon Machine Manufacturing Co., Ltd. is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China ,
our products already sold to more than 100 countries . Our products including common rail injector test bench ,common rail injector tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,PT cummins pump and injector tester ,
common rail tools and spare part .
Welcome you to visit our factory and cooperate in the future!!!
--Welcome to contact with us !!!
