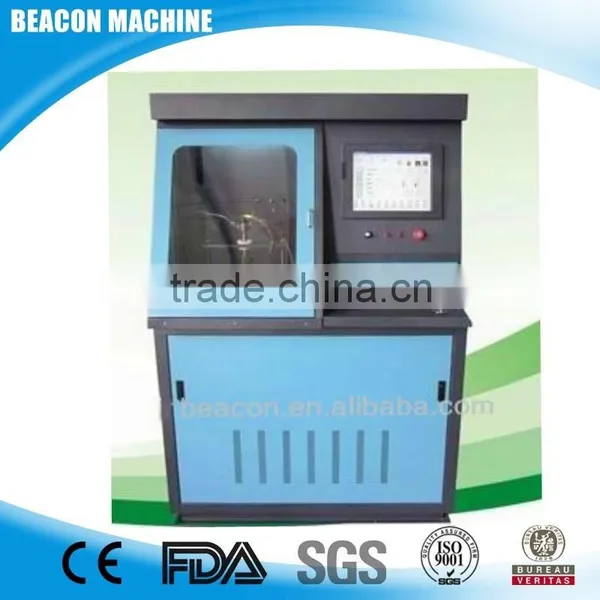

2015 CRS-2000 high pressure common rail diesel injector test bench with CE&ISO from beacon manufacturer
>>> FEATURES
1. Industrial computer control,embedded WINOWS-XP OPERATING SYSTEM
2. Touch Screen Operation,easy to operate
3. Equipped with original imported flow sensor , it has high precision and high reliability
4. Industrial computer real-time control and display, WINDOWS OPERATING SYSTEM.
5. Oil quantity sensor test, 15 inch LCD display data
6. Adopted original BOSCH common rail pump to provide 0~1600 bar rail pressure.
7. Rail pressure can be tested in real time, closed-loop control, Stable pressure, overvoltage protection
8. Adjustable pulse width and frequency of injector’s driving signal
9. Injection times can be set free
10. Preset about 500 kinds of injector data, easy to search and compare
11. Short-circuit protection
12. Adopted super frequency converter to control rotation speed and insure the testing accuracy
13. Wide operation space, protective plexiglass cover to make sure your safe
>>>FUNCTION
1.This system support lots of common rail injector brand, such as BOSCH, DENSO, DELPHI, SIMENS and so on
2. Check the sealing of CRI(common rail injector)
3. Test oil quantity of CRI during pre-infection quantity
4. Test oil quantity of CRI under full load
5. Test oil quantity of CRI under idle speed
6 Test oil quantity of CRI under correction
7.Test oil-returning quantity of CRI
8. Check the uniformity of CRI
9. Provide open database, you can upgrade, modify the data.
10.After finish test , data form documents, you can save or print it.
>>>TECHNICAL PARAMETERS
| CRS-2000 high presure common rail test bench | |
| Material | steel |
| Drivng motor | asynchronous three-phase voltage:400V Frequency:50HZ |
| or voltage:220V Frequency:60HZ Power:4KW | |
| Wheel flow meter | Resolution:1cm3/min Range 1-600cm3/min |
| Other sensor | oil temperature:20-90°C injector supply pressure:0-1600bar |
| Cooling | Air cooled exchanger |
| Injection pump | BOSCH common rail system |
| oil tank volume | 20L |
| Temperature range | 1-100°C |
| Heating resistor | 1000W |
| size | 122*77*170cm |
| weight | 300Kg |
1.CBM:122*77*170cm Net Weight:300KG.
2.Payment Terms: T/T( 30% deposit, balance before delivery)
L/C, Western Union
3.Packing:wooden cases ,seaworthy packing
4.Delivery Time: 10-15 days after deposit received
Taian Beacon Machine Manufacturing Co., Ltd. is the leading manufacture in diesel injection pump test bench and
turbocharger balancing machine in China ,our products already sold to more than 100 countries .
Our products including common rail injector test bench ,common rail injector tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,
PT cummins pump and injector tester ,common rail tools and spare part .
Welcome you to visit our factory and cooperate in the future.
----Welcome your inquiry and contact with us
