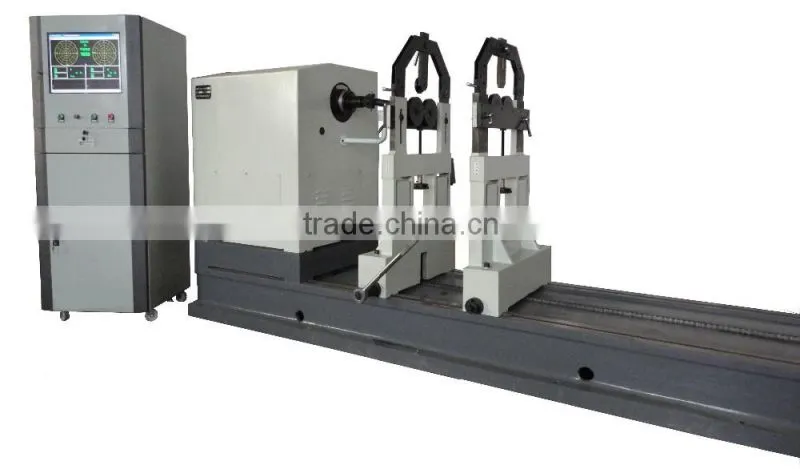

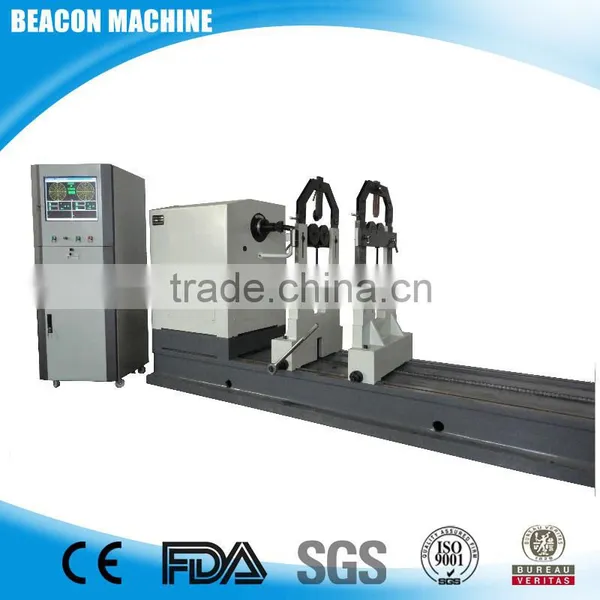

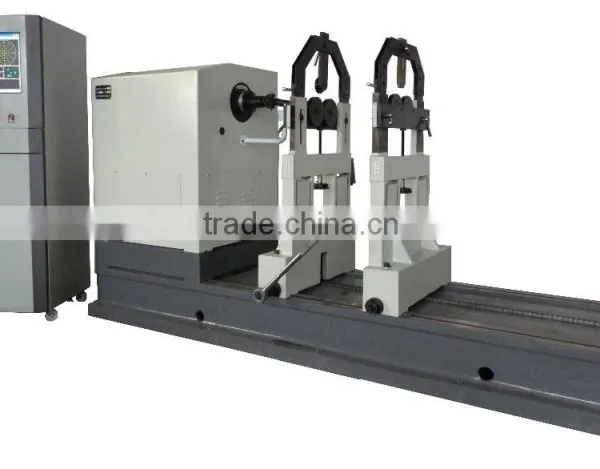

Hot product YFW-1000A fan horizontal rotor dynamic balancing machine
>>>PRODUCTION DESCRIPTION
1.industrial control computer ,19-inch LCD color screen display
2.Windows in the English system double selection
3.equipped with GB-2000 Universal Computer balance measurement system
4.automatic programmable amplifier module
5.any artifacts scaling function, the compensation of any angle fixture and workpiece information storage
6.qualified quantity display, measurement period adjustment
7.signal automatic zoom and manual zoom adjustment, signal self-test, automatic diagnosis
8.vector graphics, waveforms and unbalance, also shows
9.residual unbalance kg (kg), g (grams), mg (milligrams) and unbalanced torque g cm (Crimea),g mm (g mm) Optional display
>>>OPTIONAL FUNCTIONS
1.the automatic tracking function equilibrium angle
2.the automatic parking function
3.the vector angle decomposition function
>>>FUNCTIONS
This series is a hard bearing horizontal balancing machines, with roller bearing, universal
coupling drive, ordinary type of two speed motor drive, "A" type of variable frequency
motor plus inverter speed,industrial control computer data processing, color screen real-time display unbalance value, phase angle and real-time speed, overall casting bed are used,
good stability.
Widely used in electric motors, blowers, diesel engines, agricultural machinery, textile
machinery and other industries, can be conducted in single, double and multiple correct
balance measurement surface for the shaft, disk and center of gravity overhanging rotor.
With high efficiency, precision, intuitive display, reliable quality, easy maintenance features, software and standards with ordinary piece rotor two calibration function, to overcome the
other hard bearing balancing machine measuring system difficult for users to calibrate the
equipment on their own shortcomings, and there are coupling compensation and other
measuring methods and functions for selection, enabling parameter input, preview, test
results storage, printing, operating prompts.
>>>TECHNICAL PARAMETER
| Model | YFW-1000A |
Max.mass of workpiece(kg) |
20-1000 |
Max.diameter of workpiece(mm) |
1800mm |
Balancing speed min(r/min) |
300-1500rpm |
Min.achievable residual unbalance(g.cm/kg) |
≤0.5 |
Drive Power |
7.5kw |
Speed Mode |
Frequency conversion |
Welcome you to visit to our factory ,and show you how to operate for free
One year warranty for parts , Lifetime technical support
If you become our old customers , will give you lowest price
Q1: What is your Trade Terms?
A: FOB CFR CIF EXW DDP and DDU
Q2: What is your payment terms?
A: T/T,Western Union ,PayPay,Escrow and L/C
Q3: What is your delivery time?
A: Test bench is 7-10 working days,tester, diagnostic tool and injectors,we have stock.
Q4: Why should I choose your product?
A: We can provide you the best quality and the most competitive price ,and we have our own engineer,if you have any requirements you can contact us directly~
