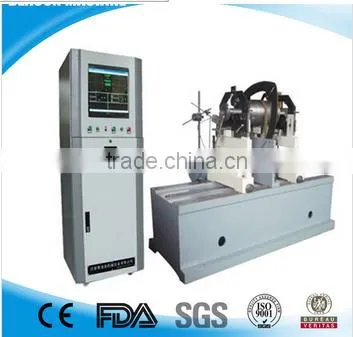

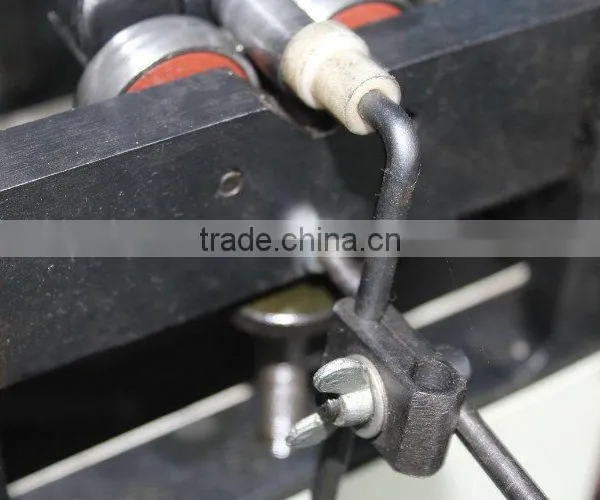

schenck mechanical balancing YYQ-160A drive shaft dynamic rotor balance machine

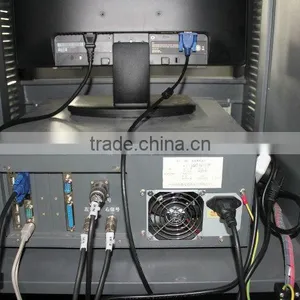

Industrial control computer 19 "LCD color screens
WidowsChinese and English system double choice
With AM-2000 general microcomputer balance measuring system
Automatic program-controlled amplifier module
Any workpiece scaling function, arbitrary Angle clamp compensating and workpiece information storage
Qualified quantity showed that adjustment function measurement cycle
Signal amplifier amplification and manual adjustment, signal self-check, automatic diagnosis
Vector graphics, waveform and out of balance, shows at the same time
Surplus balabcing g and unbalanced torque, the g cm, g mm can choose to display
Optional function
1. Angle tracking function
2. automatic stopping after complete measurement
3. the model YYQ-160A and below this model,Automatic positioning function after parking
4.vector angle decomposition function
MODEL |
Max. mass of workpiece (kg) |
Max.diameter of workpiece (mm) |
Distance between two bearing suppo (mm) |
Max.rotor Diameter (mm) |
Balanncing speed min (r/mm) |
min.achievableresidual un balance(g.mm/kg): |
unbvalance reduction ratio(%): |
Drive power (kw) |
RYQ-3 |
0.01-3 |
φ350 |
30-450 |
φ3-22 |
400-10000 |
≤0.5 |
≥90 |
0.09 |
RYQ-10 |
0.1-10 |
φ500 |
30-600 |
φ5-60 |
400-10000 |
≤0.5 |
≥90 |
0.18 |
YYQ-5 |
0.1-5 |
φ400 |
50-600 |
φ3-40 |
400-5000 |
≤0.5 |
≥90 |
0.09 |
YYQ-16 |
0.3-16 |
φ500 |
60-600 |
φ5-40 |
400-5000 |
≤0.5 |
≥90 |
0.18 |
YYQ-50(A) |
1-50 |
φ900 |
60-800 |
φ8-70 |
300-5000 (ANeutralspeed regulating) |
≤0.5 |
≥90 |
0.75(A:0.75) |
YYQ-100(A) |
2-100 |
φ900 |
80-1000 |
φ10-140 |
300-5000 (ANeutral speed regulating |
≤0.5 |
≥90 |
0.85/1.1(A:1.5) |
YYQ-160(A) |
2-160 |
φ950 |
100-1400 |
φ10-180 |
300-2500 (ANeutral speed regulating |
≤0.5 |
≥90 |
0.85/1.1(A:1.5) |
YYQ-300A |
5-300 |
φ1200
|
150-1500 |
φ20-180
|
300-2500 Neutral speed regulating |
≤0.5 |
≥90 |
4.0 |
YYQ-500A |
10-500 |
φ1500
|
150-1500 |
φ20-240
|
180-2500 Neutral speed regulating |
≤0.5 |
≥90 |
4.0 |
YYQ-1000A |
10-1000 |
φ1500
|
150-2600 |
φ20-240 |
180-2500 Neutral speed regulating |
≤0.5 |
≥90 |
5.5 |
YYQ-1600A |
30-1600 |
φ1800 |
150-2600 |
φ20-240 |
180-2500 Neutral speed regulating |
≤0.5 |
≥90 |
7.5 |
YYQ-3000A |
100-3000 |
φ2000
|
150-2600 |
φ15-300
|
180-2500 Neutral speed regulating |
≤0.5 |
≥90 |
11 |

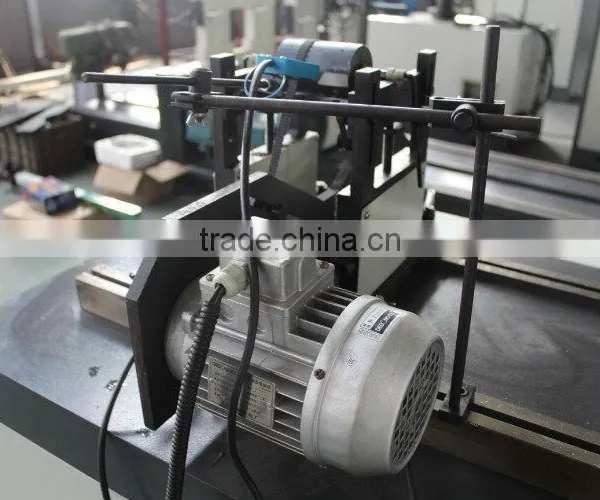

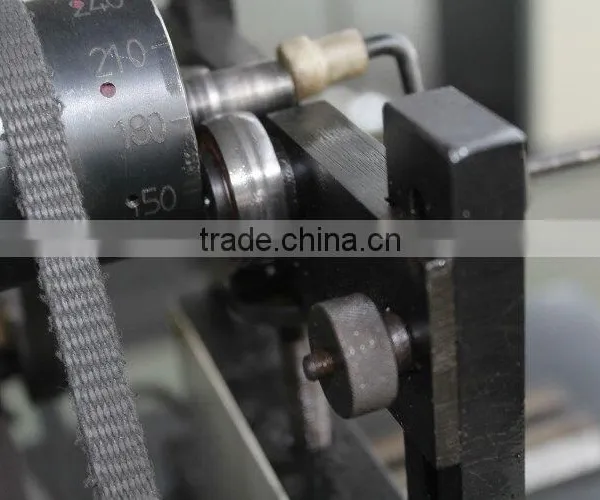

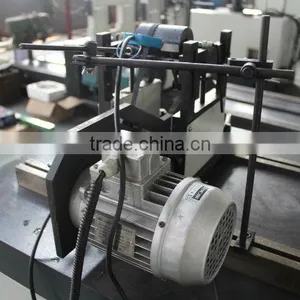

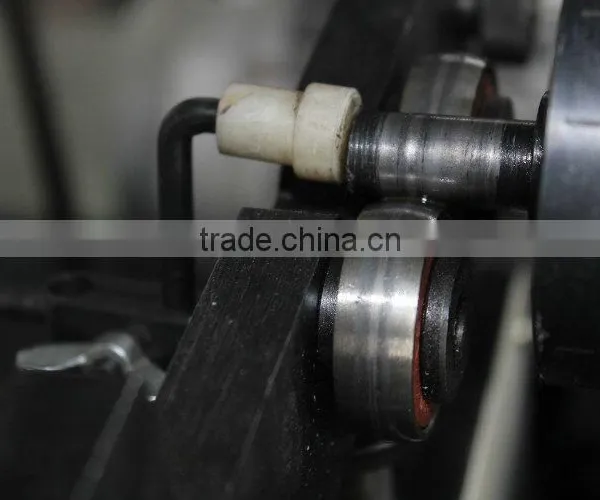

>>>the balacing rotors

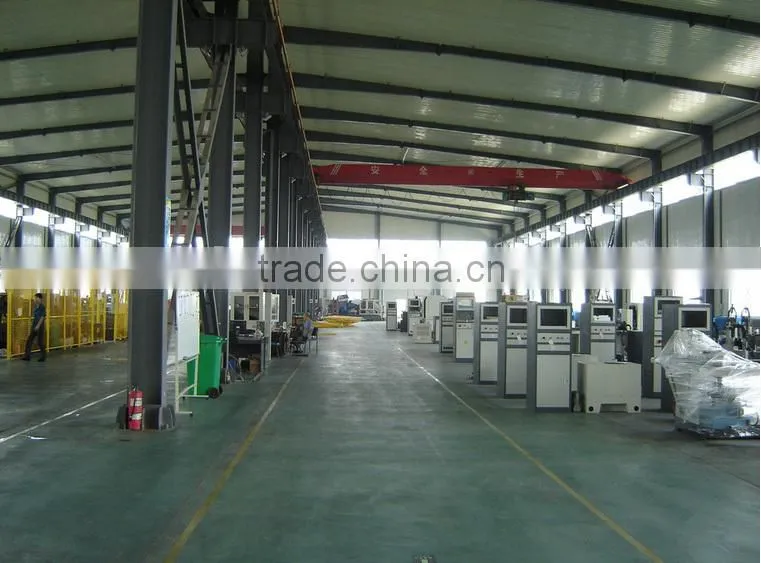

---Our workshop
welcome you to visit to our factory ,and show you how to operate for free
One year warranty for parts , Lifetime technical support
If you become our old customers , will give you lowest price
Q: Are you a manufacture or a trading company?
A: We are a manufacture which produce verious type of balancing machine .
Q: How about your quality and price?
A: Quality first is the priority of our company. We care the quality very much during production and before delivery to customer. Our product has passed CE and ISO 9001. Our quality is high range but price is midumn range, We are manufacture so we save a lot of other cost. We can understand your want the best quality product using the least price. We promise our quality worth every cent you pay.
Q: Can you do OEM for you?
A: Yes. We can do OEM. We can print your brand logo sticker on the product and also your designed drawing on the product.
Q: I can’t find products I want to buy from your website, and can you produce to my request?
A: Yes. Our technical can figure it out and calculate price for your reference. We can produce based on your drawing and parameter.
Q: What’s your warranty?
A: We provide one year warranty and we will give more easy-broken parts before shipment. If any problem happened and we are very sorry for that. But we will give necessary assistant and send better part to you.
Q: What is the payment terms you accept?
A: We can accept T/T, Western union ,Trade assurance and so on many ways of payment. You can contact us for more details.
