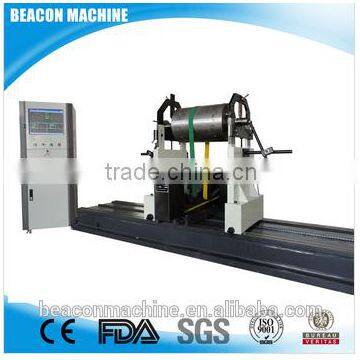

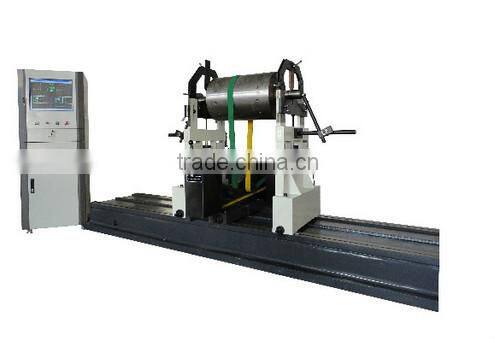

Dynamic balancer YYQ-1600A balancing of rotor dynamic prop balancing equipment
Product Description
Widely used in electric motors, fan/blower, diesel engine, farm machine, textile machiner, printing machine, paper-making machine, water pump, automoible etc
Industrial control computer 19 "LCD color screens
Widows Chinese and English system double choice
With GB-2000 general microcomputer balance measuring system
Automatic program-controlled amplifier module
Any workpiece scaling function, arbitrary Angle clamp compensating and workpiece information storage
Qualified quantity showed that adjustment function measurement cycle
Signal amplifier amplification and manual adjustment, signal self-check, automatic diagnosis
Vector graphics, waveform and out of balance, shows at the same time
Surplus balancing g and unbalanced torque, the g cm, g mm can choose to display
YYQ-1600A Belt Drive Balancing Machine Optional function
1, Balance Angle automatic tracking function
2, Parking automatic positioning function
3, Vector Angle function decomposition
Lathe bed according to user requirements lengthen
Machine Characteristics (1): this series is hard supporting horizontal dynamic balance machine, with roller bearing, the circle take drag, regular for double speed motor drive, "A" type for frequency conversion motor speed and frequency converter, the industrial control computer for data processing, color screen real-time display don’t balance phase Angle and value, real-time speed, lathe bed all use whole casting, the stability is good.Widely used in electric motors, blower, diesel engine, auto parts, etc, can be in the single side, double side and multiple correction plane balance measurement, suitable for axle, dish out and center of gravity of the rotor. Have high efficiency, precision accurate, show intuitional, reliable quality, easy maintenance, the characteristics of software with ordinary workpiece and standard rotor two calibration function, overcoming the other hard supporting balance machine measurement system to users to calibration equipment of the defect, and a variety of measurement method and function to choose, can realize the input parameters, preview, the experiment, the results storage, print, operating all adopt the localization menu structure, the man-machine dialogue, automatic hints.
Characteristics(2): Widely apply for industries like motor, blower, diesel motor, turbocharger,
armature, rotors of paper machinery and textile machinery etc.
Horizontal hard bearing dynamic balancing machine serials
Wheel bearing
Belt drag
Motor and Inverter for speed regulation
Industrial computer to process data
Colored screen display unbalance value, phase angle, and practical rotation speed
Overall cast base, better stability
Balance test as single side, double side, multi side
Apply for shaft, plate, and extended focus rotor
High accuracy, direct, dependable quality, convenient maintenance
Software has two calibration function like usual piece and standard rotor
Parameter input, overview, test, data save, operate and menu
Optional function
1.Angle tracking function
2.Automatically stop when finish balancing workpiece
3.Automatically location function
4.Vector angle analysis function
Wear-resisting ring used rotor balancing machines
Feature:
YYQ series universal hard backing dynamic balancing machine
Features: the series is hard bearing horizontal dynamic balancing machine, using the wheel backing, rings with drag ,the popular style is two-speed electric - driven, “A” is variable-frequency electromotor plus inverter speed, industrial control computer data processing, color screen real-time shows the value of the amount of unbalance ,phase and real-time rotational speed, bases have adopted the overall foundry, stability is good. It is widely applied in engine, wind motor, blower, diesel engine and auto parts and other range, It can balance and measure on single side, double side and many test sides, fit for axial, plate and gravity out-stretching roller. It has characterstics of high efficency, correct precision, direct display, good quality, convenient maintenance and so on, the soft has both common work piece and standard roller special functions, avoid demarcate equipment non-automatically for customers who use other hard support balancing machine measure system, and you can choose many measure method and function, it can realize to input parameter, preview, test, save results, type, use chinese menu to operate, man-machine conversation, auto prompting.
Model | Weight of workpiece (kg) | Max. diameter of workpiece (mm) | Distance between two supporting (mm) | Journal Diameter (mm) | Balanncing speed (r/mm) | Min. achievable residual unbalance(g.mm/kg): | Unbalance reduction ratio(%): | Drive power (kw) |
YYQ-1600A | 30-1600 | φ1800 | 150-2600 | φ20-240 | 180-2500 |

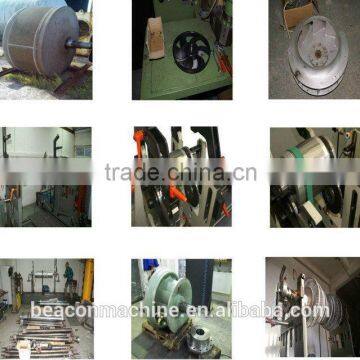

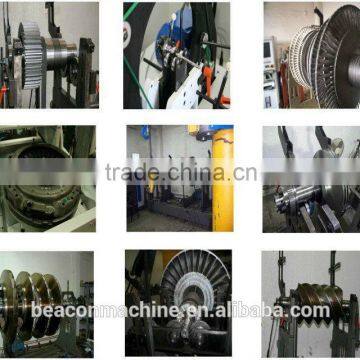

>>> for the workpieces
Our new appercance :
warehouse corner

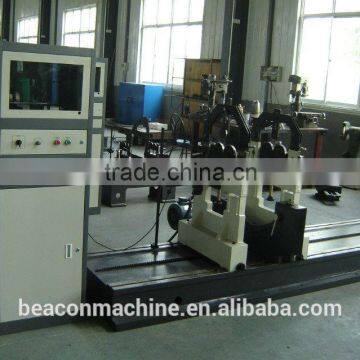

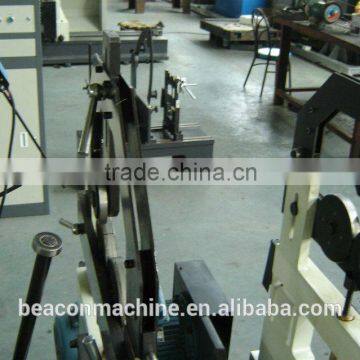

workhouse
>>>Welcome to contact with us
