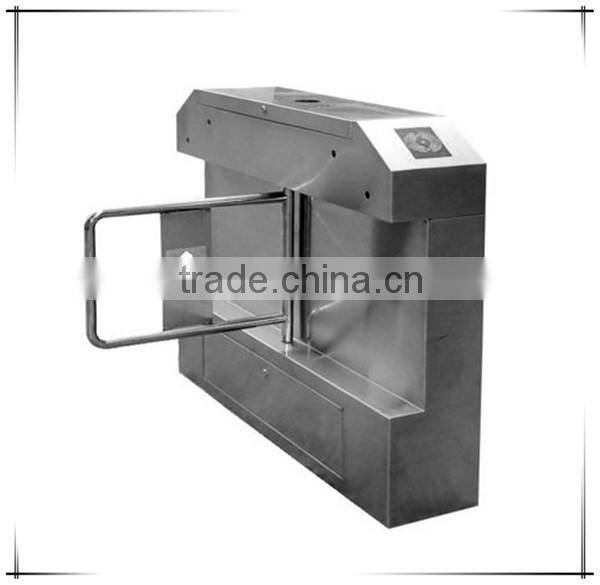

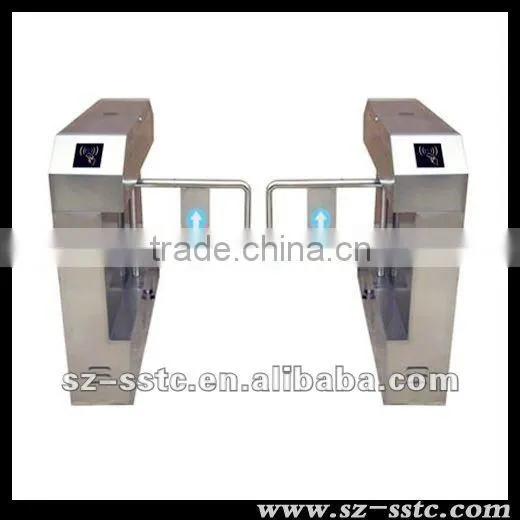

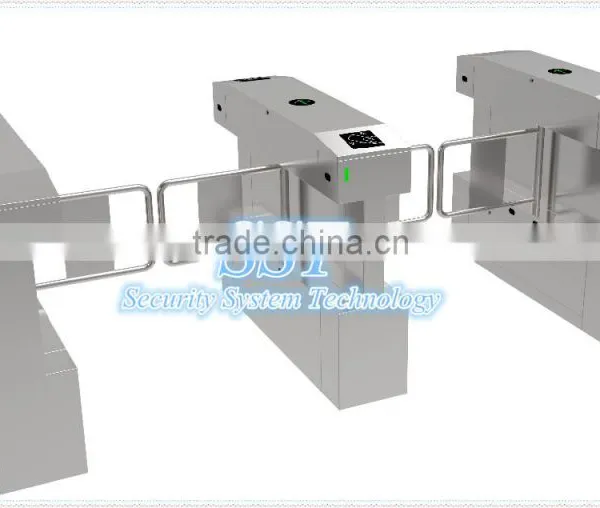

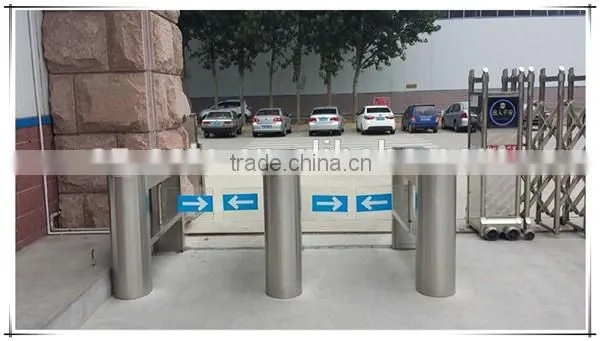

gate remote control swing arm turnstile gate security door
- The swing turnstile gate is a new style barrier gate, can be provide speed, secure and high-efficiency bi-directional barrier gate
- The product is using authorized mode to control and limit entry and exit, and using the complicated anti-following tracking control technology, able to judge quickly and correctly if someone is following, and strictly prevented entry of non-authorized people. To accomplished efficient management of pedestrian, and achieve safety function of barrier gate.
- The control technology of products is in the lead of the same products.
- Unique design, perfect control technology, valued and artistic outlook design, to be best choice for high flow and strictly safety needed places like government agency, office building, hotel and enterprises office building, etc…
- Power: AC220V; 50HZ
- Driver Mode: DC motor 140W / 24V
- Dimensions: 1900mm x 900mm x 1085mm
- Lane Width: 900mm
- Communicate Interface: TCP / IP
- Communicate Distance: 1200m
- Passing Speed: 40people /minute (N/O); 20people / minute (N/C); the data is empirical value, it need to depends on the response time of users’ optional access control system.
- Service Life: 5 millions continuous opening and closing
- Open and Close Time: 1 second
- Equipment Identification Ability: the distance of two people is over 130mm
- Numbers of Control system support infrared sensor: max. 8 pairs infrared sensors
Optional Part
- Can be customized the lane width
- Can choose controller system supported Infrared numbers : 4 ~ 8 pairs
- Able to use other material for housing, such as 316 stainless steel etc…
- Remote Control Board
- Integration of Various Kinds of Access Control Management System
- Size can be customized
Main Benefits
Single-user, un-manned automatic access control
Indoor or outdoor perimeter security
Safe, simple and effective equipment for demanding, prolonged use
Reduced maintenance and security costs
Long-term investment based on exceptional durability
Working Mode
- A-SD1 series Swing Gate has different working mode in passing direction A or B control.
- Passing Freely: open automatically when the infrared sensors detected the pedestrian.
- Locked All the Time: the direction is locked all the time, and the pedestrian can not pass through.
- Authorized to Pass: accomplished remote control though contacted various kinds of access control management system
- Release when the power is interrupt, the passing channel is released locking status after the power is interrupted, the pedestrian can be passing freely, avoid scare.

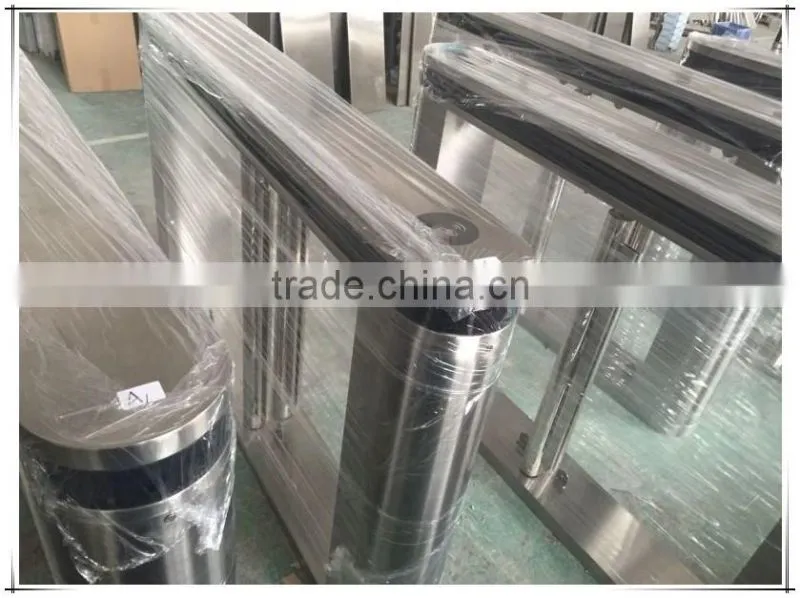

Equipment Composition

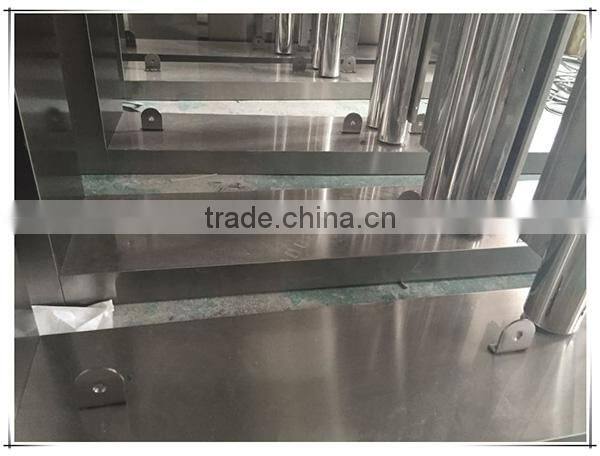

- Housing is using 1.5mm AISI-304 wire drawing of stainless steel,
- Made slop / open hole at the top of cylinder, can be built-in access control system in the inner space
- Channel status indicated that is able to built-in slop of the top of cylinder
- Organic glass for panel of gate
- The top of stainless steel board can be opened as to maintenance port.
- Cylinder was designed circular arc.
- Built-in infrared sensor in the side of housing.
- Electromechanical combination / electronic controller was built-in in the inner housing
Our service
1.Any inquiries will be replied within 24hours.
2.Professional manufacturer. Welcome to visit our website: .
3.OEM/ODM available:
1) Silk print logo on the products
2)Customized design and color are available.
3) Any idea on the products, we can help you to design and produce.
4.High quality, fashion designs,reasonable&competitive price and fast lead time.
5.After-sale service:
1) All products will be strictly Quality Controlled in house before package.

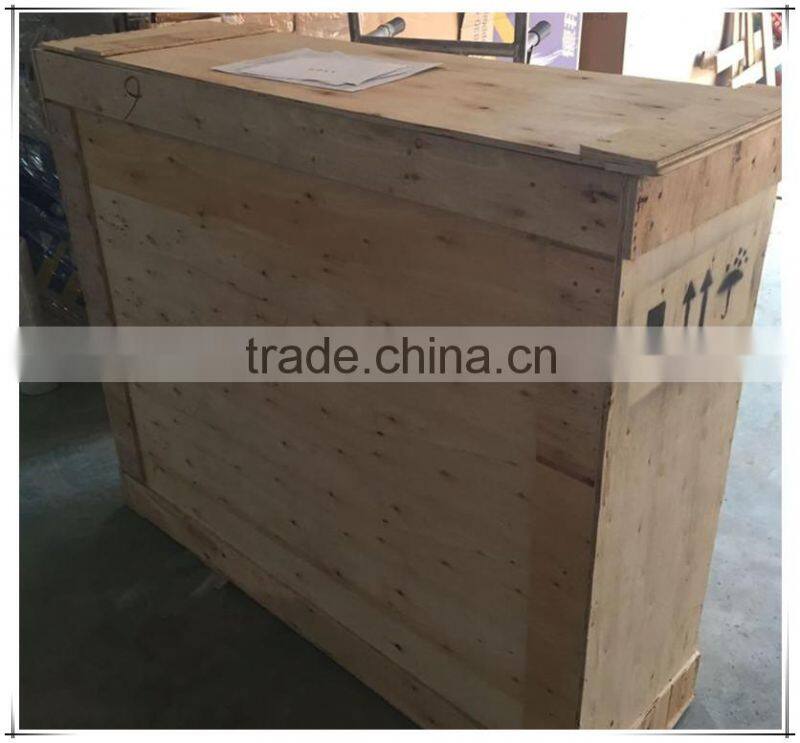

2) All products will be well packed with wooden case before shipping.
3) All our products have 1 year warranty. The product will be free
from maintenance during warranty period.
4) If there is any problem when installing the products,please feel
free to contact me. We are here to support you.
6.Fast delivery
Sample order in stock,5-7days for bulk production
7. Payment
We can accept T/T,Western Union,Paypal&L/C
8.Shipping
As our products are big volume,and heavy duty, we suggest you to ship by sea.
You can also choose your own shipping forwarder
1.Any inquiries will be replied within 24hours.
2.Professional manufacturer. Welcome to visit our website: .
3.OEM/ODM available:
1) Silk print logo on the products
2)Customized design and color are available.
3) Any idea on the products, we can help you to design and produce.
4.High quality, fashion designs,reasonable&competitive price and fast lead time.
5.After-sale service:
1) All products will be strictly Quality Controlled in house before package.
2) All products will be well packed with wooden case before shipping.
3) All our products have 1 year warranty. The product will be free
from maintenance during warranty period.
4) If there is any problem when installing the products,please feel
free to contact me. We are here to support you.
6.Fast delivery
Sample order in stock,5-7days for bulk production
7. Payment
We can accept T/T,Western Union,Paypal&L/C
8.Shipping
As our products are big volume,and heavy duty, we suggest you to ship by sea.
You can also choose your own shipping forwarder
Thanks for your view, if any questions you can feel free to contact us.
Company Introduction
Shenzhen Security System Technology Co., Limited locates in Shenzhen China, which is a high tech enterprise integrating R&D, production and selling home and abroad. .
Our products ranges from people access control to car access control system. We have turnstile gate (tripod turnstile,flap barrier, swing barrier, drop arm barrier, full height turnstile and so on), parking system( parking fee collection system, ultrasonic parking guidance system) and hydraulic road blocker, hydraulic LED bollards and tyre-killer . Company also integrates products with time and attendance system, car parking system, biometric systems like face recognition, finger-print,palm-print etc..
Our products are widely used in places wherever access control is needed, such as military basement, government organs, army, schools, hospital, airports, terminals, tourist attractions, parking lot,office building
So far, company products have been exported to more than 100 countries, like Italy, Germany, UK, Spain,Russia, Canada, Mexico, Brazil, UAE, India, Malaysia, Chile, Thailand, South Africa, Kenya, Zambia,etc
Stable function and excellent performance is the product R&D purposes. Offering most affordable price to customers is the product design concept. Our goal is to establish a win-win situation and long-term cooperation relationship with all our customers and partners.Welcome your inquiry.
