RFID Automatic Swing Turnstile Gate Access Control
US$ 750 - 1,200
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SST
Model Number:
SST-KB220
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2016 Hot Sale Rfid Card Reader Security Turnstile GateUS$ 2,900 - 3,500MOQ: 1 Pair -
China Supplier High Quality Upright Swing Turnstile With Low PriceUS$ 650 - 950MOQ: 1 Piece
-
Rfid Interface Automatic Barrier Security Mechanical Electronic Turnstile Smart Card Door Swing Arm Gate for EntryUS$ 1,800 - 2,500MOQ: 1 Pair
-
RFID ID/IC Fingerprint Cards Control Swing Gate BarrierUS$ 2,900 - 3,500MOQ: 1 Pair
-
High Speed Glass Arm Full Automatic Swing Barrier Gate IntelligentUS$ 750 - 1,200MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
SST
Model Number
SST-KB220
Specifications
RFID automatic swing turnstile gate1,RFID ID/IC cards, fingerprint control
2,Customized optional
3,304 # stainless steel
| RFID automatic swing turnstile gate access control | ||
| | ||
| 1. Descriptions: | ||
Integrating mechanism, electronics and micro-processor advanced technologies.The swing barrier is a improvement of intelligent tripod turnstiles.Equip various card-reading machines with hi-performance security protection SW to realize real-time warning and clever LED counter display guide passers .it balance pedestrian intelligent control and management. | ||
| 2. Technical Parameter: | ||
| 1 | Power | AC220C±10V,50HZ |
| 2 | Operating Temperature | -15°C-60°C |
| 3 | Access Width | ≤700mm |
| 4 | Passing Speed | 50 persons/min(IC Card) |
| 5 | Motor | 140W/24V |
| 6 | MotorSpeed | 1600R/Min |
| 7 | Communication Distance | ≤1200M |
| 8 | Input Connection | +12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms |
| 9 | Communication Connection | RS485 |
| 10 | Material | SUS304,thickness 1.5mm |
| 11 | Running Life | 5--8 Million(Continuous Opening and Closing Operation) |
| 12 | Colour | SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional) |
| 13 | Applications | Subway Station, Hoverport, Tourism Sports,Exhibition, Swimming Hall,Residence Area |
| 3.Functions & Features: | ||
| 1. Self-checking function. 2. Working types: 2.1,bi-direction card reading; 2.2.one direction card reading and another prohibited; 2.3,one direction card reading and another free pass. Working types can be set in the control board. 3. Automatic turnstiles arm drop automatically when power off ;Arm recover its position automatically when power on. 4. Arm open&close time can be set by user in control boards 5. Manager can set pass time in control boards. 6. Flap barrier automatic alarm when illegal pass until passenger get an authorized card. 7. Swing barrier is RS485 interface for long-distance control. 8. Human safe: optical & mechanical anti-impact.Optical sensor detect passenger position.100% avoid passenger hurt during in passing . If arm meets any obstacle, arm stop working immediately . 9.LED display passengers numbers. 10. Direction display guide passenger go or stop. 11. Control software regulate authorized passengers numbers. 12. Stable running with low- noise. | ||
| 4.Solution | ||
| | ||
| 5.Dimension | ||
| | ||
| 6.Details | ||
| ||

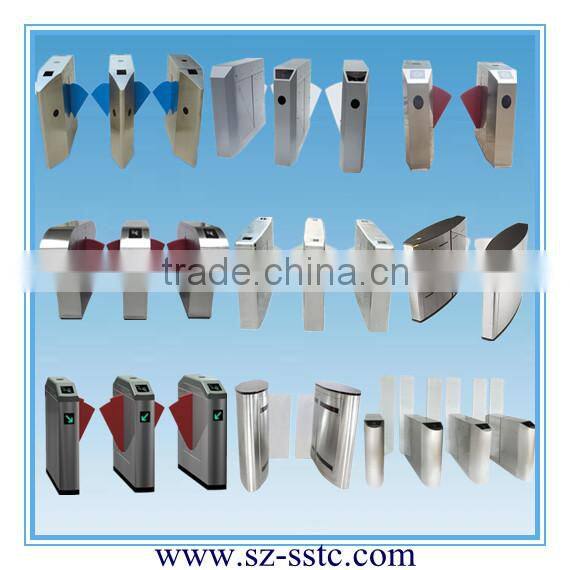

7.Product Show | ||
| | ||
| 8.Application | ||
| ||
| 9.Standard package | ||
| ||

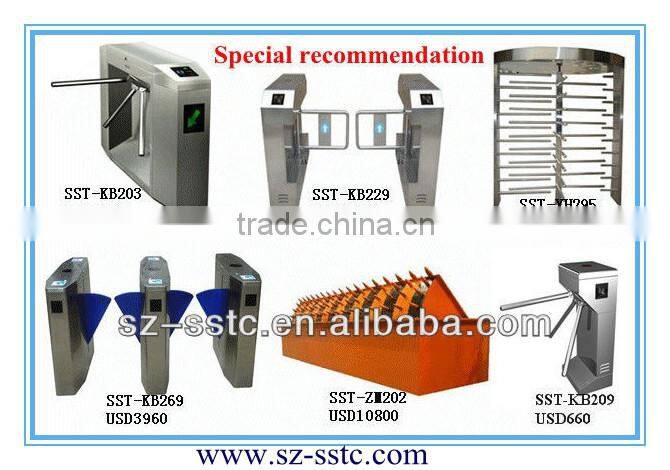

| 10.Products variety | ||
| ||
| 11.Our service | ||
| Customer services oriented. Reply your inquiries within 12 hours. Professional staffs answer any questions . Customized design ,OEM & ODM are available. Distributors or agents in special policies supports | ||
| 12.Our advantage | ||
| 1.One-stop procurement service is available. 2.Quickest delivery and best aftersales service. 3.Veteran technician solves all your problems. 4.Passionate and professional sales makes a wonderful team. 5.Competitive and reasonable price with high quality products and advanced technology. 6.Providing the most professional solution as soon as possible according to your requirements. | ||
