MPT761 4-20mA Explosion Proof Differential Pressure Transmitter

FOB Price

US$ 175 - 265 / Piece

5 Pieces(Min. Order)

Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	manyyear
Model Number	MPT761

Product Description

MPT761 4-20mA explosion proof differential pressure transmitter

Product Description

Features

Model: MPT761

Category: Differential pressure sensor

Range: 0~2,100……7000KPA

temperature: ,-20~+85

signal output: mv/v, 0-5vdc,4-20mA,Hart,Rs485

Application: Air, water and oil differential pressure measurement

Characteristic: industry differential pressure transmitter

Technology

Technology parameter:
capability range	0~2 …… 7MPA
pressure type	Differential pressure
signal output(mA/v)	mv/v, 0-5vdc,4-20mA,Hart,Rs485
Precision(%FS)	0.1, 0.2,0.3
sluggish repeat (nor-linearity)(%FS)	≤0.1 ≤0.2 ≤0.3
excursion at zero point(%FS/4h)	≤0.01 ≤0.02 ≤0.03
temperature excursion	≤0.01 ≤0.02 ≤0.03
long term stability(%FS/year)	≤0.1;≤0.2
execute voltage (V)	24v (9~36v)
temperature compensate (ºC)	0~+60
environment temperature (ºC)	-20~+85
Overload (%)	200
Static pressure	10~12
load resistance (Ω)	R=(U-12.5)/0.02-RD; U=POWER SUPPLY, RD=Wire resistance
response time(ms)	≤1
measuremedium	compatible with 316L,causticity Gas, liquid
House	1Cr18Ni9Ti
connector thread	Ø7.5,M12×1 or order by customer
explosion proof grade	option-able
water proof grade	IP65
Film	316Lstainless steel

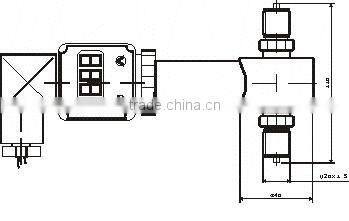

Product Dimension

Product dimension

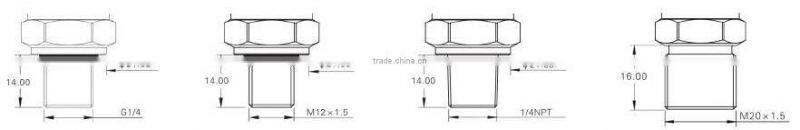

Pressure Connector

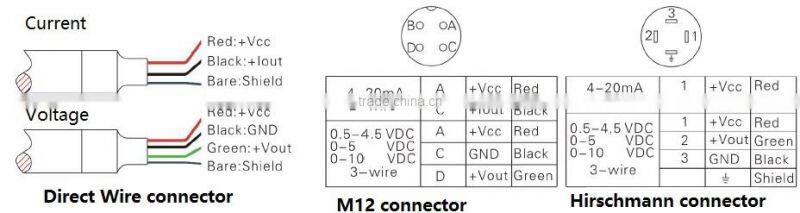

Electric Connector

Packaging & Shipping

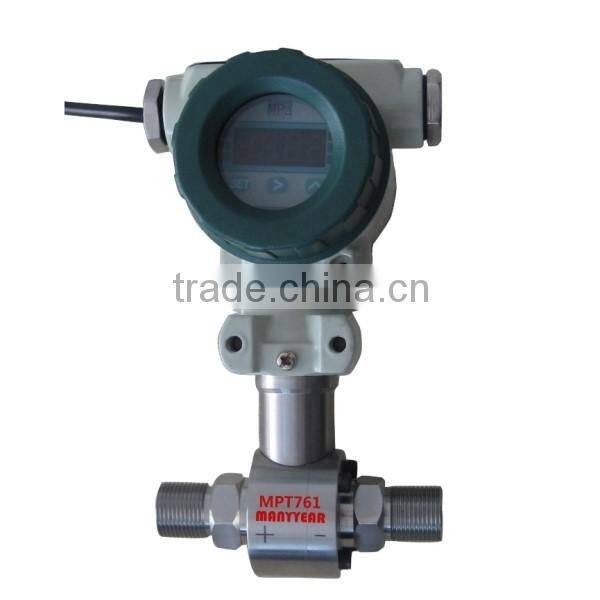

Product photo

Packing Reference

Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
