Home > Electrical & Electronics > Sensor > Pressure Sensor > MPT561 Flange Pressure Transmitter

MPT561 Flange Pressure Transmitter

Name: MPT561 Flange Pressure Transmitter
Brand: MANYYEAR
SKU: 130662383
Availability: InStock

MPT561 Flange Pressure Transmitter thumbnail-1

MPT561 Flange Pressure Transmitter photo-1

US$ 285 - 355 MOQ: 5 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

MANYYEAR

Model Number:

MPT561

Contact Supplier Request Quote Chat Now

Manyyear Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

SHEZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name MANYYEAR

Model Number MPT561

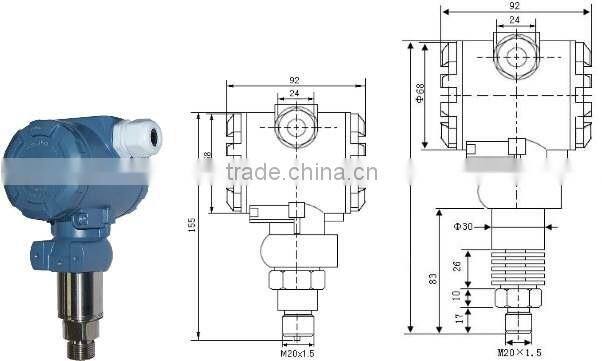

MPT561 flange pressure transmitter

Product Description

Features

Model: MPT561

Category: Industry pressure sensor

Range: 0 -10KPa ~150MPa

temperature: -20-125℃

signal output: mv/v, 0-5vdc,4-20mA

Application: in petroleum, chemical, metallurgy, electric power, environmental protection and

Characteristic: Anti-electromagnetic interference design suitable for harsh environment use

Technology

Products Introduce:
Industrial pressure transmitter with a stainless steel isolation diaphragm with imported high-precision, high stability of the force-sensitive chips, the transmitter circuit using high-quality processing and export industry-standard 4 ~ 20mA or 0 ~ 10mA signal.
The transmitter is widely used in petroleum, chemical, metallurgy, electric power, environmental protection and other areas of the corrosive gas, liquid, steam gauge pressure, absolute pressure of the automatic measurement and control.
Features:
Wide measuring range: 0 -10KPa ~ 150MPa
High precision: better than 0.5% FS
Stability: better than 0.2% FS / Year
Zero, full scale output adjustable
Anti-electromagnetic interference design suitable for harsh environment use
Anti-corrosion: 316L or ceramic diaphragm
Intrinsically Safety
Technical parameters:
Range:	0-10KPa~150MPa
Pressure Hydraulic:	Gauge pressure; Absolute pressure
Output:	0~5V; 0~10V; 4~20mA.
Full Output:	5V; 10V; 20 mA
Zero point output:	0.5%FS
Accuracy:(%FS)	0.5
Nonlinear	≤0.1 ~ ≤0.3
Hysteretic repeatability (% FS)	≤0.1 ~ ≤0.3
zero drift(%FS/4h)	≤0.05~≤0.2
Zero and sensitivity drift(%FS/℃)	≤0.01 ~ ≤0.03
Long-term stability(%FS/year)	≤0.1~≤0.3
Supply (V)	24VDC (9~36)VDC
Temperature Compensation(℃)	-20~+70
Working temperature(℃)	-20~+125
Storage temperature:(℃)	-40~+125
Overload:(%)	150
Life time:	>1×108 Pressure cycle(25℃)
Load resistance:(Ω)	R = (U-12.5) / 0.02-RD where: U is supply voltage, RD for the cable resistance
response time(ms)	≤10
Medium:	compatible with 316SSL
Shell materials:	1Cr18Ni9Ti or 304;316SSL
Process connection:	Clamp diameter 50mm or by order
Explore Proof:	ExibIICT4
