MPT521 Digital Smart Pressure Transmitter

Name: MPT521 Digital Smart Pressure Transmitter
Brand: ManyYear
SKU: 130662153
Availability: InStock

US$ 175 - 265 MOQ: 5 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ManyYear

Model Number:

MPT521

Manyyear Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ManyYear

Model Number MPT521

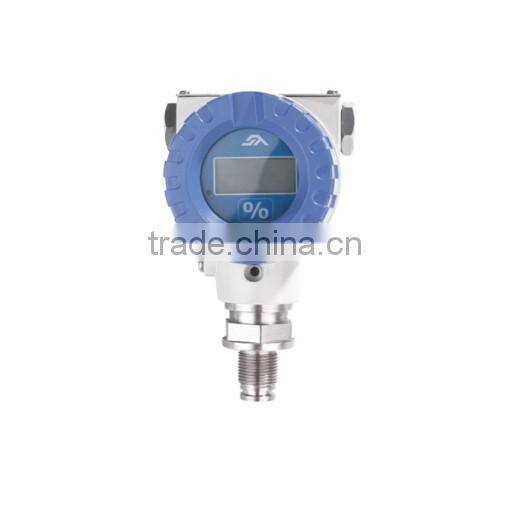

MPT521 digital smart pressure transmitter

Product Description

Features

Model: MPT521

Category: Industry pressure sensor

Range: 0 ~5 , 100 , 500 , 800 , 1000 KPA, 0 ~2 , 10 …… 100 MPA

temperature: -20-85℃

signal output: mv/v, 0-5vdc,4-20mA

Application: measuring and controlling pressure of causticity Gas, liquid, steam in oil, metallurgy, electric power, geologic…industry.

Characteristic: liquid, steam gauge pressure, absolute pressure of the automatic measurement and control

Technology

Apply to measuring and controlling pressure of causticity Gas, liquid, steam in oil, metallurgy, electric power, geologic…industry.
characteristic:
Wide capability: 0~1KPa~200MPa
High precision:< 0.1%FS
3 1/2 bit LED/LCD
Adjust: full load
anti-jamming, inclement environment
antisepsis: 316L, ceramics film
with HART
ExibIICT6
Technology parameter:
capability range	0 ~5 , 100 , 500 , 800 , 1000 KPA, 0 ~2 , 10 …… 100 MPA
pressure hydraulic	Gauge pressure, Absolutely pressure
signal output(mA/v)	Pressure transducer: 0~5V; 0~10V; 4~20Ma.
	Pressure Transducer: 1mV/V; 2mV/V,2.5mV/V ,3.3mV/V
Full load output(mV)	30~60~120
Zero point output(mV)	≤20
Precision(%FS)	0.1, 0.2,0.3
sluggish repeat (nor-linearity)(%FS)	≤0.1 ≤0.2 ≤0.3
excursion at zero point(%FS/4h)	≤0.05 ≤0.1 ≤0.2
temperature excursion(zero & delicacy)(%FS/ºC)	≤0.01 ≤0.02 ≤0.03
long term stability(%FS/year)	≤0.1;≤0.3
execute voltage (V)	24v (9~36v)
temperature compensate (ºC)	-20~+60
work temperature (ºC)	-20~+85
storage temperature	-40~+125
Overload (%)	300
Life	>1×108pressure cycle(25ºC)
load resistance (Ω)	R=(U-12.5)/0.02-RD U=POWER SUPPLY,RD=Wire resistance
response time(ms)	≤1
measuremedium	Compatible with 316L. Causticity and nor-causticity medium.
House	1Cr18Ni9Ti and aluminum alloy
Connect thread	M20×1.5 or order by customer
explosion proof grade	ExibIICT6
Indicator hydraulic	3 bit LED ( LCD )
