MPT421 Submerged Digital Water Level Transmitter

Name: MPT421 Submerged Digital Water Level Transmitter
Brand: MANYYEAR
SKU: 130661949
Availability: InStock

US$ 120 - 200 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

MANYYEAR

Model Number:

MPT421

Manyyear Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name MANYYEAR

Model Number MPT421

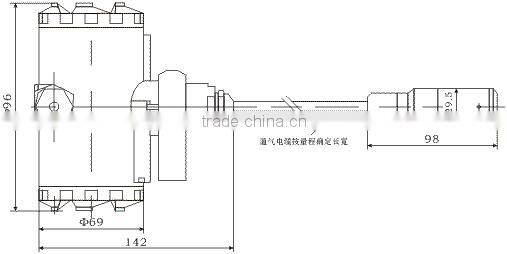

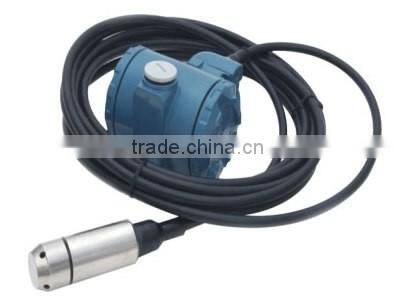

MPT421 submerged digital water level transmitter

Product Description

Features

MPT421 fission Submersible level transmitter

Model: MPT421

Category: level sensor

Range: 0-500m H2O

temperature: ,-20~+85c

signal output: mv/v, 0-5vdc,4-20mA,Hart,Rs485

Application: water level measure, oil level measure, tank level measure, groundwater measure

Characteristic: water level transmitter, liquid level transmitter

Technology

Technology parameter:
capability range	0~1,5……500m
pressure type	Gauge pressure, negative pressure ,Absolutely pressure
signal output(A/D)	0~5V; 0~10V; 4~20Ma, mv/v , RS232, RS485, Hart..
Full load output(mV)	30~60~120
Zero point output(mV)	≤20
Precision	0.1, 0.2, 0.3
sluggish repeat (nor-linearity)(%FS)	≤0.1, ≤0.2, ≤0.3
excursion at zero point (%FS/4h)	≤0.1, ≤0.2, ≤0.3
temperature excursion(zero	≤0.01, ≤0.02, ≤0.03
long term stability(%FS/year)	≤±0.1;≤±0.3
execute voltage (V)	5vdc, 10vdc, 24vdc.
temperature compensate (ºC)	0~+70
environment temperature (ºC)	-20~+85
Overload (%)	300
Life	>1×108pressure cycle(25ºC)
load resistance (Ω)	R=(U-12.5)/0.02-RD U=POWER SUPPLY,RD=Wire resistance
response time(ms)	≤10
measure medium	compatible with 316, liquid
Film	316Lstainless steel
House	1Cr18Ni9Ti
Connect thread	Fission-Submersible
explosion proof grade	ExibIICT6 (OPTION)
water proof grade	IP68
