MPT425 Inject Type Oil Level Transmitter

FOB Price

US$ 220 - 295 / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	MANYYEAR
Model Number	MPT425

Product Description

MPT425 inject type oil level transmitter

Product Description

Features

MPT425 Insets oil level transmitter

Model: MPT425

Category: level sensor

Range: 0-5000mm H2O

temperature: ,-50-250℃

signal output: mv/v, 0-5vdc,4-20mA

Application: oil level measure, Fuel pressure measure, tank level measure

Characteristic: digital oil level sensor, digital fuel level transmitter

Technology

Technology parameter:
capability range	0-0.5m, 1m, 2m, 3m ,5m
pressure type	Gauge pressure, negative pressure ,Absolutely pressure
signal output(mA/v)	Pressure transducer: 0~5V; 0~10V; 4~20Ma.
Full load output(mV)	NA
Zero point output(mV)	≤20
Precision	0.25, 0.5%FS
sluggish repeat (nor-linearity)(%FS)	≤0.2, ≤0.3
excursion at zero point (%FS/4h)	≤0.2, ≤0.3
temperature excursion	≤0.01, ≤0.02, ≤0.03
long term stability(%FS/year)	≤±0.1;≤±0.3
execute voltage (V)	pressure transducer:24VDC (9~36)VDC;
temperature compensate (ºC)	0 ~+ 80
environment temperature (ºC)	,-40~+250
Overload (%)	300
Life	>1×108pressure cycle(25ºC)
load resistance (Ω)	R=(U-12.5)/0.02-RD U=POWER SUPPLY,RD=Wire resistance
response time(ms)	≤1
measuremedium	Water, oil
Film	Titanium alloy
House	316L
Connect thread	THREAD, FLANG
explosion proof grade	ExibIICT4
water proof grade	IP68

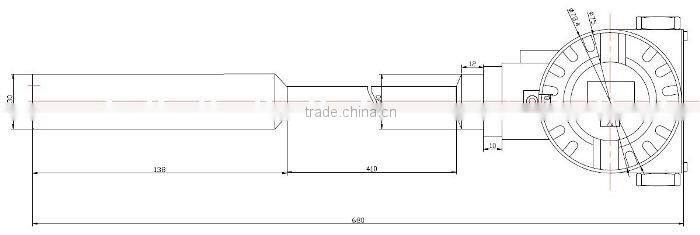

Product Dimension

Product dimension

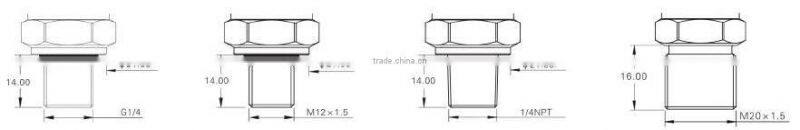

Pressure Connector

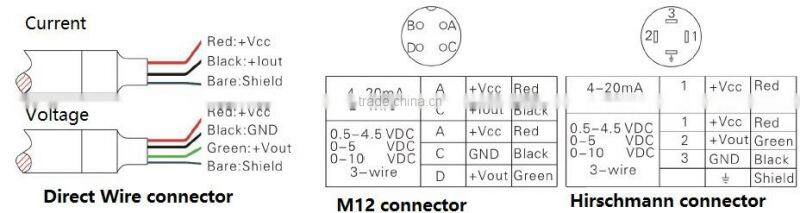

Electric Connector

Packaging & Shipping

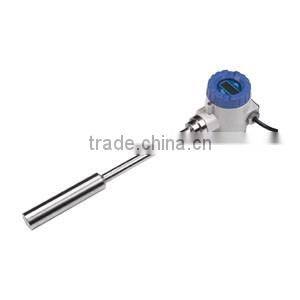

Product photo

Packing Reference

Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
