Belt Drive Balancing Machine, Balance Machine

Belt Drive Balancing Machine, Balance Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
TC
Model Number:
YYQ
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name TC
Model Number YYQ
Power Electronic
Usage Balancing Machine

Specifications

balancing machine
belt drive
computer display
17 inch screen displays unbalance value, phase, rt rotate speed



Warranty period:



Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.



Technical Data:

Model

Max. mass of workpiece

(kg)

Max.diameter of workpiece

  (mm)

Distance between two support bearings(mm)

Max.rotor

Diameter

(mm)

Balancing speed min

  (r/mm)

min. achievable residual

un balance(g.mm/kg):

unbalance reduction ratio(%):

Drive power

(kw)

YYQ-5

0.1-5

φ400

50-600

φ3-40

400-5000

≤0.5

≥90

0.09

YYQ-16

0.3-16

φ500

60-600

φ5-40

400-5000

≤0.5

≥90

0.18

YYQ-50A

1-50

φ900

60-800

φ8-70

300-5000

≤0.5

≥90

0.75

YYQ-100A

2-100

φ900

80-1000

φ10-140

300-5000

≤0.5

≥90

1.5

YYQ-160A

2-160

φ950

100-1400

φ10-180

300-2500

≤0.5

≥90

1.5

YYQ-300A

5-300

φ1200



150-1500

φ20-180



300-2500

≤0.5

≥90

4.0

YYQ-500A

10-500

φ1500



150-1500

φ20-240



180-2500

≤0.5

≥90

4.0

YYQ-1000A

10-1000

φ1500



150-2600

φ20-240

180-2500

≤0.5

≥90

5.5

YYQ-1600A

30-1600

φ1800

150-2600

φ20-240

180-2500

≤0.5

≥90

7.5

YYQ-3000A

100-3000

φ2000



150-2600

φ15-300



180-2500

≤0.5

≥90

11





YYQ-1000A

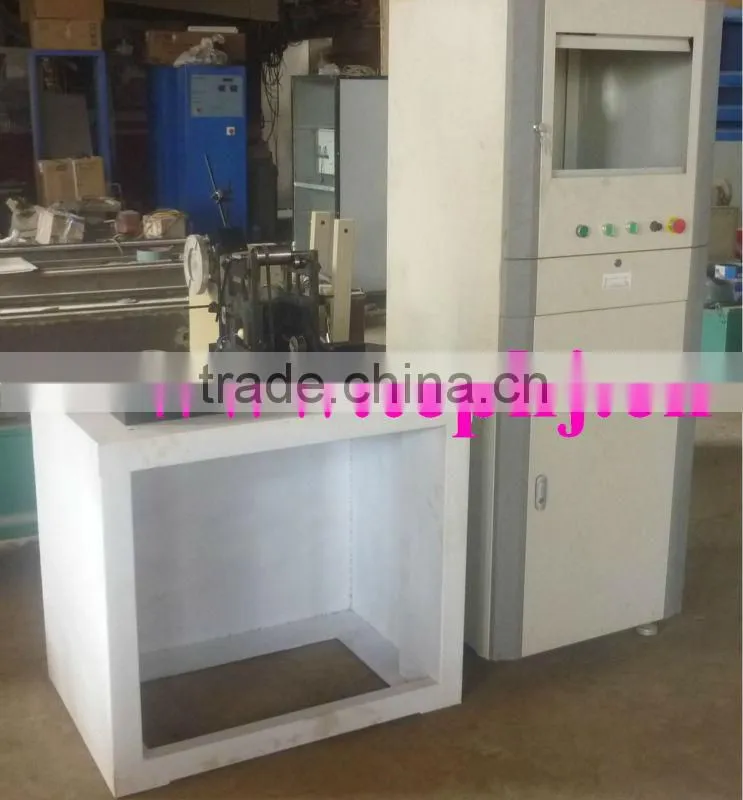

belt drive balancing machine, balance machine



YYQ-500A

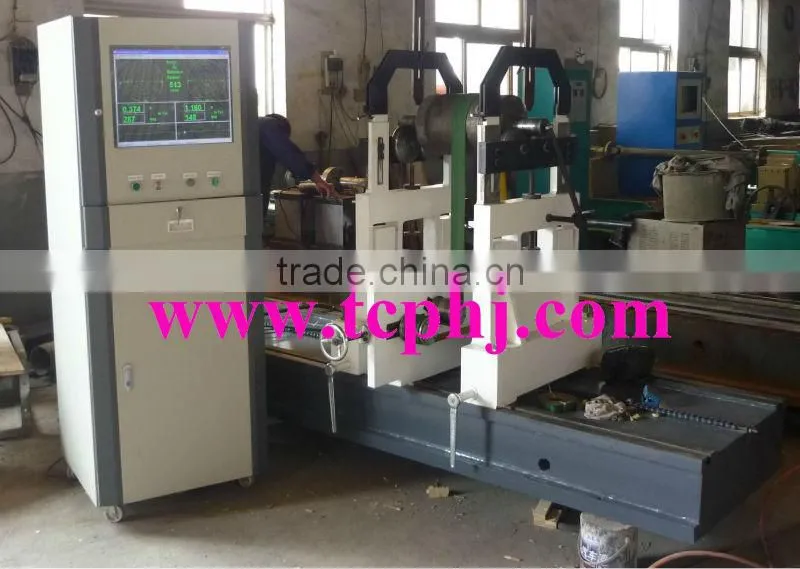

belt drive balancing machine, balance machine





YYQ-300A

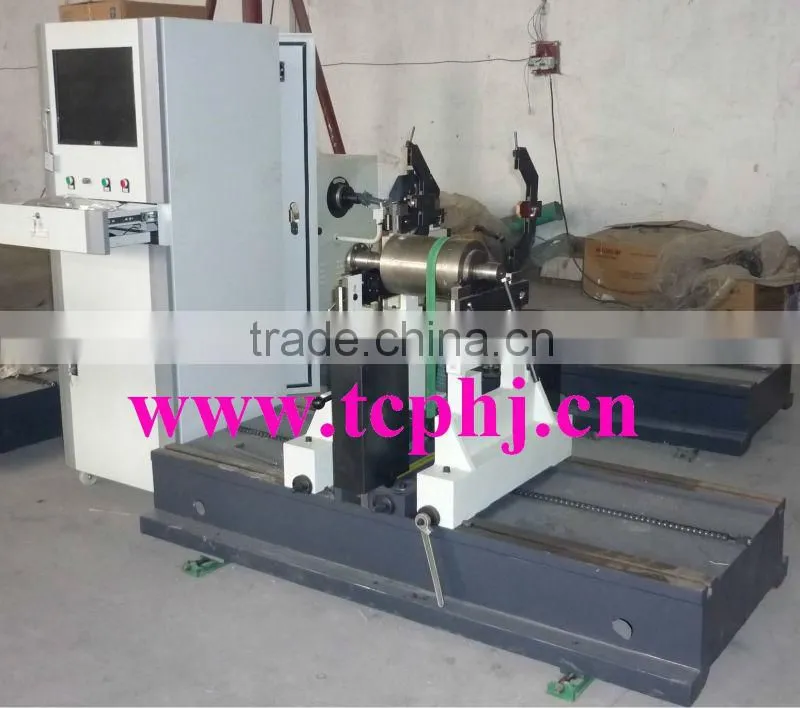

belt drive balancing machine, balance machine





YYQ-16A

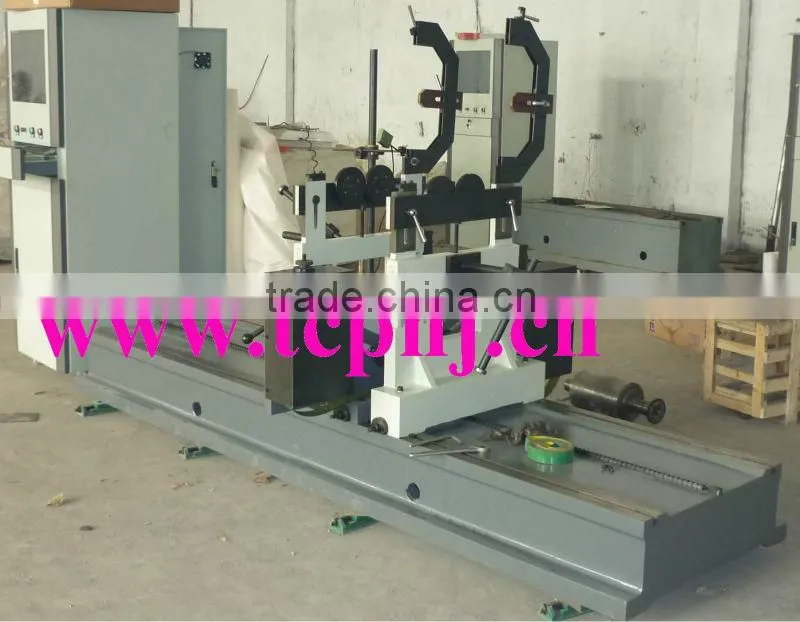

belt drive balancing machine, balance machine
