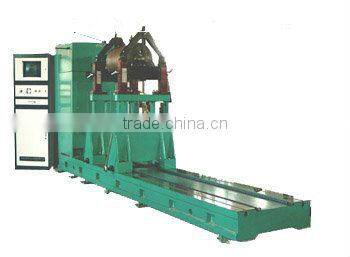

Help CenterUniversal Joint Drive Horizontal Balancing Machine YYW-20000A
Related Products
-
Balancing Machine YYW-20000ANegotiableMOQ: 1 Set -
Blower Balancing Machine YYW-20000ANegotiableMOQ: 1 Set
-
Hard Bearing Dynamic Balancing Machine for Fan YYW-20000ANegotiableMOQ: 1 Set
-
Unviersal Dynamic Balancing Machine for Fan YYW-20000ANegotiableMOQ: 1 Set
-
Balance Machine YYW-500ANegotiableMOQ: 1 Set
Specifications
balancing machinehorizontal balancing machine
rotator balancing machine
CE certified
Windows XP operation system
Features:
Hard backing horizontal dynamic balancing machine;
Using the wheel backing, universal coupling to drive;
Industrial control computer data processing, color screen real-time shows the amount and angle of unbalance, rotation speed;
Bed is overall foundry with good stability
Balance and measure on single side, double side
Warranty period:
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
Technical Data:
Model |
Mass of workpiece (kg) |
Max.diameter of workpiece(mm) |
Distance between two support bearings(mm) |
Range of Journal Diameter(mm) |
Balancing speed (r/mm)
|
Min. achievable residual unbalance (g.mm/kg): |
Unbalance reduction ratio(%): |
Drive power (kw) |
YYW-20000A |
500-20000 |
φ2400/ 3200 |
300-5100 |
φ50-200 200-400 |
200-1200 |
≤1 |
≥90 |
55 |
