Specifications
balancing machineflywheel balancing
fan impeller balancing
CE certified
computer display
Features:

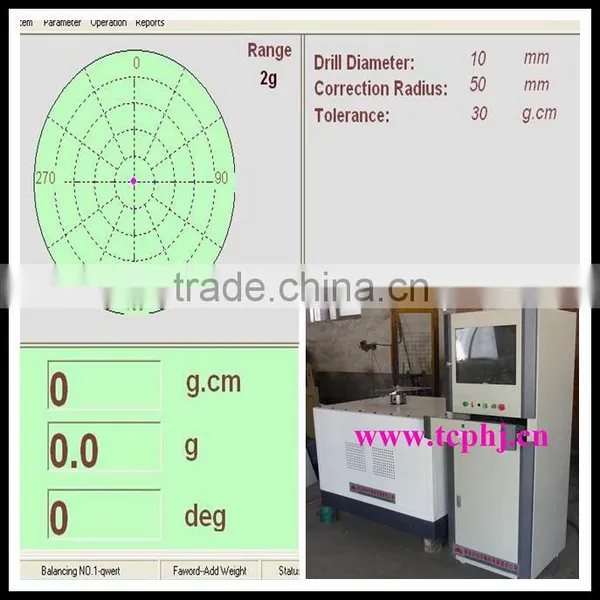

YLD series vertical balancing machine fits for balancing parts with disc shape such as fan blade, pressure plate, flywheel, brake disc, ring blower, impeller, arrester, saw blade, pulley. Adopt industrial computer in measuring system. Screen displays rotate speed, amount and angle of unbalance showing in “g” directly. Easy operation, straight display, adopt electro magnetic sensor, featured in reliable performance and excellent stability.
Warranty period:
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
Technical Data:
Model |
Workpiece weight (Kg ) |
Workpiece diameter (mm) |
Balancing speed (r/min) |
Min.achievable residual unbalance (g.mm/kg) |
Unbalance reduction Ratio (%) |
Motor power (kw) |
Adjusting speed form |
YLD-16A |
0.5-16 |
500 |
250-2500 |
≤ 3 |
≥90 |
0.85 |
Variable frequecny motor |
