portable laser marking machine fiber/10w/20w/30w/50w metal marking machiine
- 200 Set / Sets per Month
- qingdao
- T/T Credit Card
- DANAPR UV Laser Marking Machines F2010
- 1390 large laser engraving machine window cut paper PVC plating film laser cutting machine, cardboard paper engraving machine
- DANAPR UV Laser Marking Machines F2010 UV laser
- 3D Crystal Laser Engraving Machine
- DANAPR UV Laser Marking Machines F2005 UV laser
- DANAPR UV Laser Marking Machines
Product Details
Condition: | New | Laser Type: | Fiber Laser | Engraving Area: | 100*100mm |
Engraving Speed: | <7000mm/s | CNC or Not: | Yes | Cooling Mode: | Air Cooling |
Applicable Material: | Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood | Graphic Format Supported: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | Place of Origin: | Shandong, China |
Brand Name: | PHILICAM | Model Number: | FLDJ-10F | Certification: | CE, ISO, CE |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

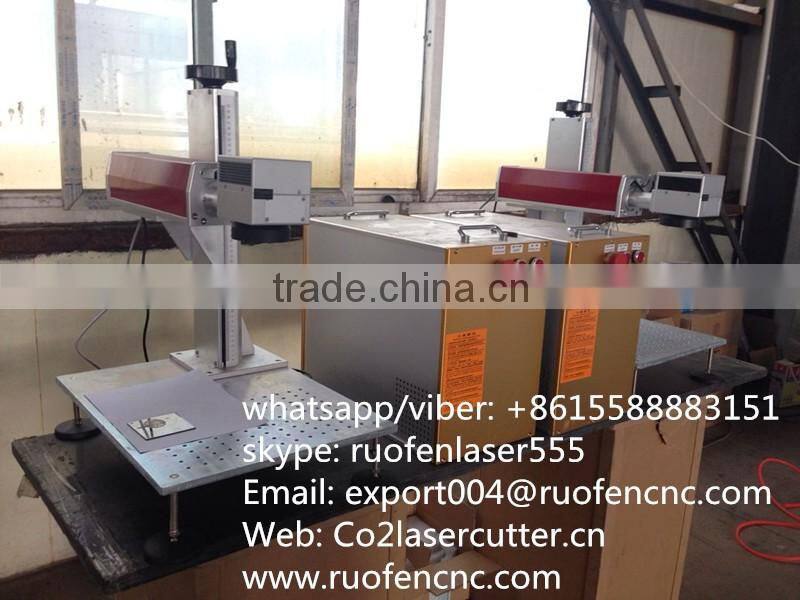

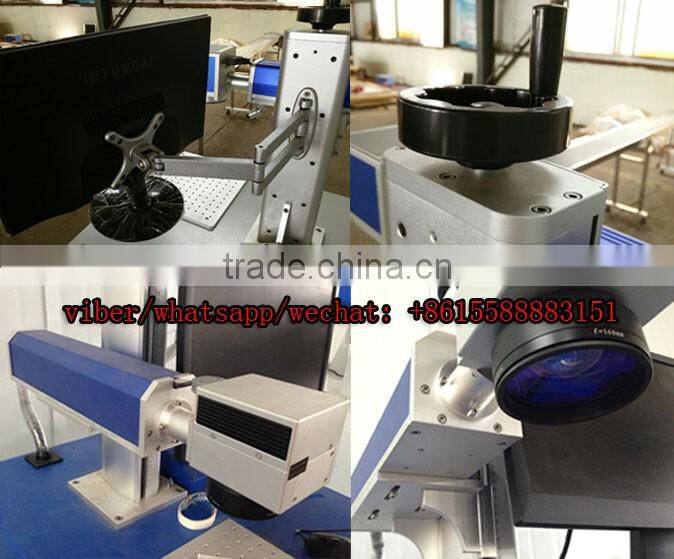

portable laser marking machine fiber/10w/20w/30w/50w metal marking machiine
Feature of portable laser marking machine fiber :
The fiber laser marking machine adopts originally imported fiber laser and imported speedy gavol scanning system. High quality of light beam.Marking has non-touched process, permanent effect, humanized operation, and stable running. 24-hour non-stop running makes it meet the demand of massive on-line and off-line industrialized production.
1.Adopting the imported original IPG fiber laser from Germany. And taking use of original imported isolators to protect fiber laser window, which enhances stability and laser life.
2.Its beam quality is much better than traditional solid laser marking machine. As the base module output, diameter of focal spot is less than 20um.Divergence angle is 1/4 of pumped
semiconductor laser. Particularly applicable to fine, precision marking.
3.High conversion efficiency of electro-optic, and the power consumption of the whole equipment is below 500W which is 1/10 of that of the solid laser marking machine pumped by the lamp to save the energy to a large extend
4.No maintainance for more than 100000hours
5. The proprietary control software may compatible software output of AutoCAD, CorelDraw, Photoshop, etc. It can realized automatic edition and correction of characters, signs, graphs,
images, bar codes, two-dimensional codes,automatically increased serial numbers. It can support various file formats like PLT, PCX, DXP, BMP, JPG, and so on. It may use TIF fonts directly.
Fiber laser marking machine | |
modle | FLDJ-10w /20w/30w/50w |
Power | 10w /20w/30w/50w |
Laser wavelength | 1064nm |
Repeating frequency | 20-80 KHz ≤15000mm/s
|
Beam quality | <1.2 |
Marking range | 30mm/30mm-300mm/300mm |
Engraving line speed | ≤15000mm/s
|
Min. line width | ≤ 0.01mm |
Min. character | 0.1mm |
Max marking depth | 1.5mm |
Repeatability accuracy | ±0.001 |
Power supply | 220V/50Hz/60hz |
Power consumption | ≤ 800W |
Outline dimensions | 1480mmX830mmX720mm |
gross weight | 140 KG |
Cooling system | Air cooling |
Application :
- Many type of metals: Gold and silver,copper,aluminum,stainless steel,chrome etc
- Alloy and metal oxides
- Some non-metallic materials:siliconwafer,ceramics,plastic,rubber,epoxy resin,ABS,Printing ink,Plating,Spraying,Coating film and special surface treatment
Applicable industries:
- Electrical Engineering and Electrical part and component
- Mobile (Cover,battery,keyboard, I Phone Case)
- Jewellery(Ring,pedeant,bracelet),eyeglass,clocks and craft
- Building materials,PVC pipe
- Car motor car spare part
- Insturment and meters and cutting tool
- plastic case
- hardware fitting and accessory
- sanitary appliance
- food and beverage
- Medicine package and medical instrument
- solar Pv industry

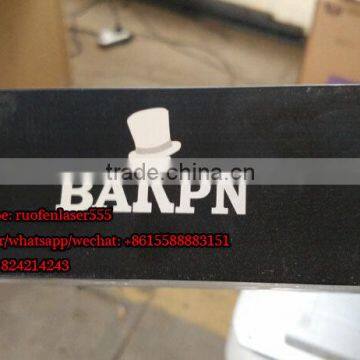

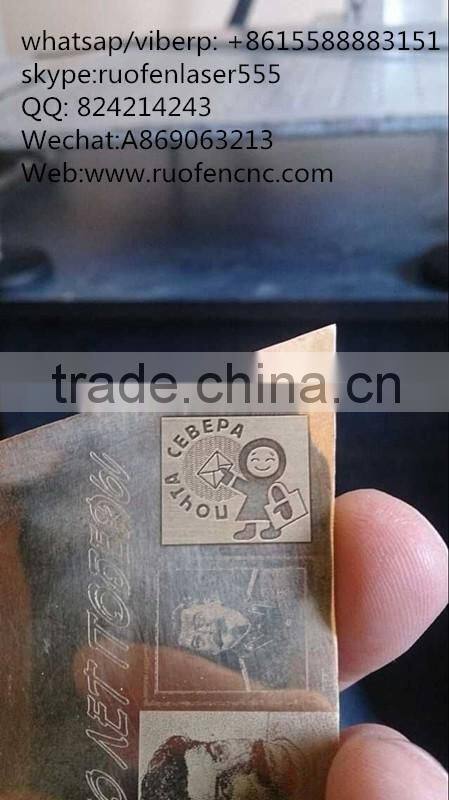

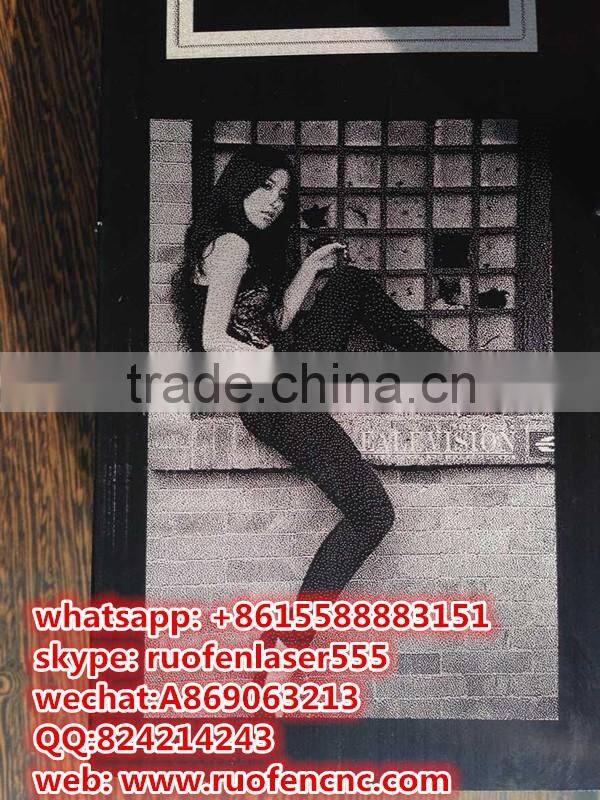

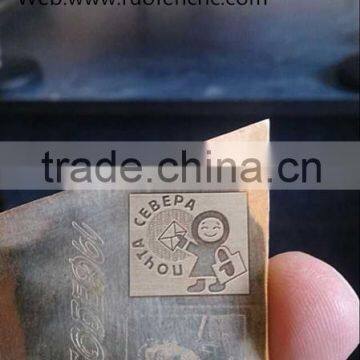

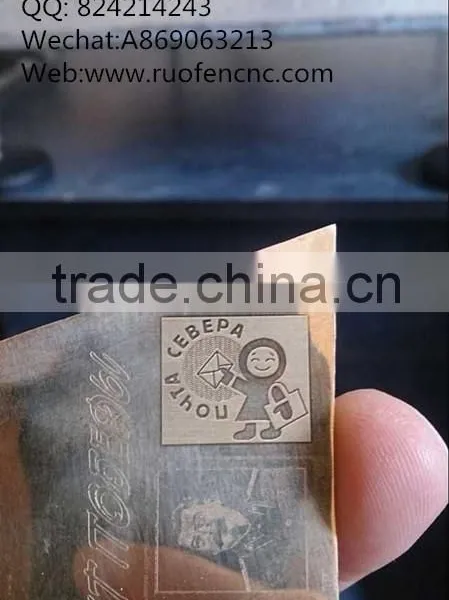

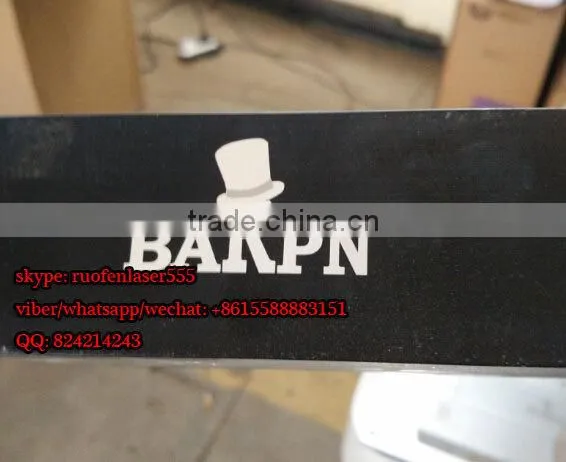

Sample:
About us: PHILICAM Group- Ruofen International Marketing Department
- Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery. It is small design and the complete weight is 22kg.
- High Precision: Re-position precision is 0.002mm
- High Speed: Imported scanning system makes the scanning speed is up to 7m/s
- Easily Operating:Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.
- High Reliability: MTBF>100,000 hours
- Energy Saving: The efficiency of optic-electrical converting is up to 30%
- Low Running Cost: No wearing part. Free maintaining

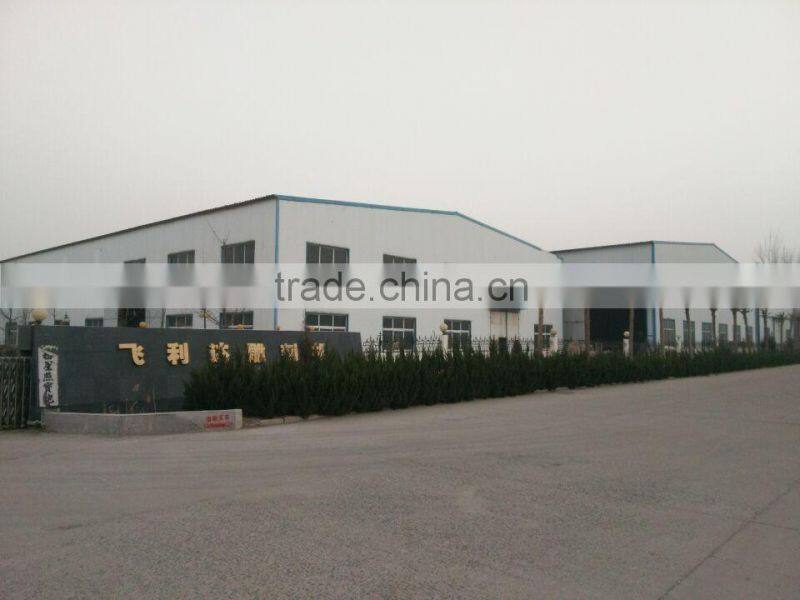

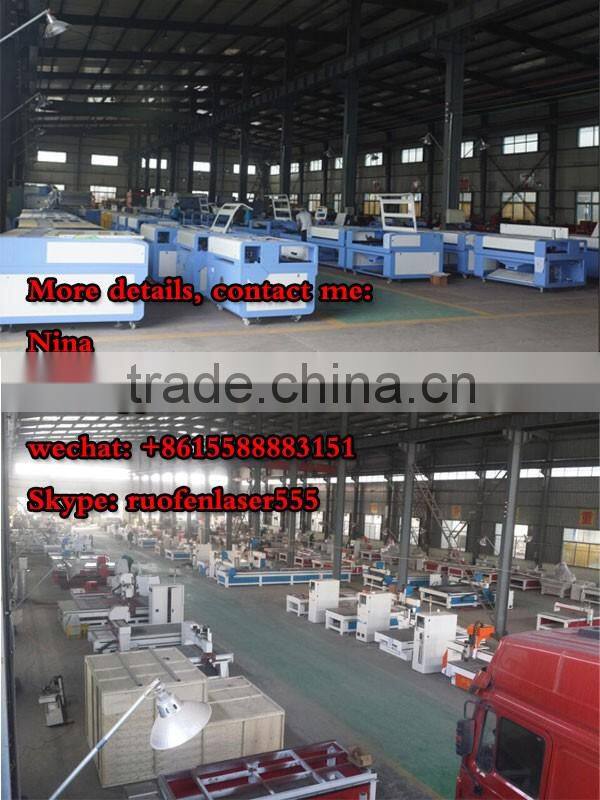

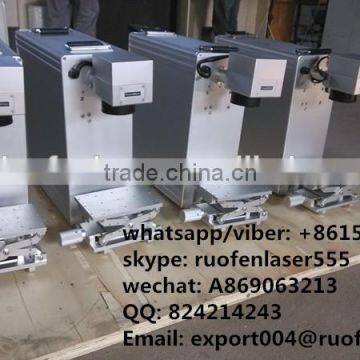

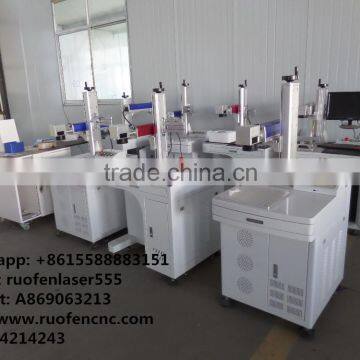

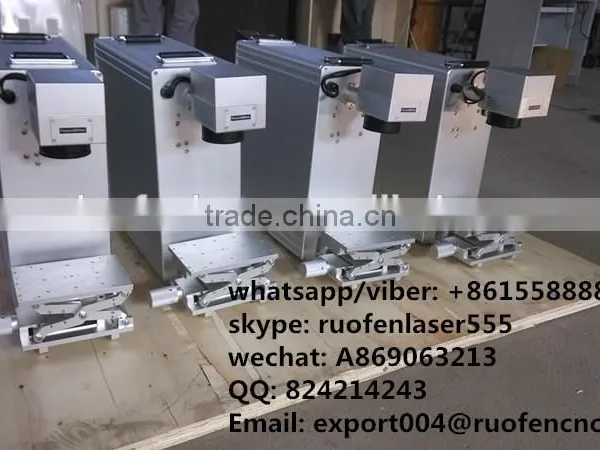

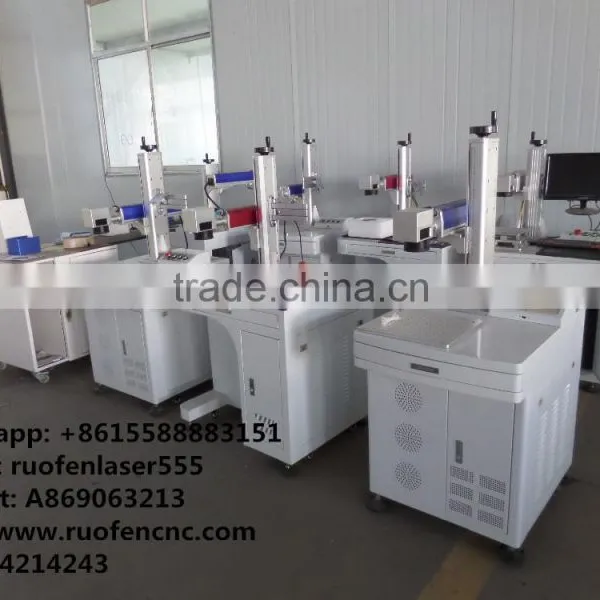

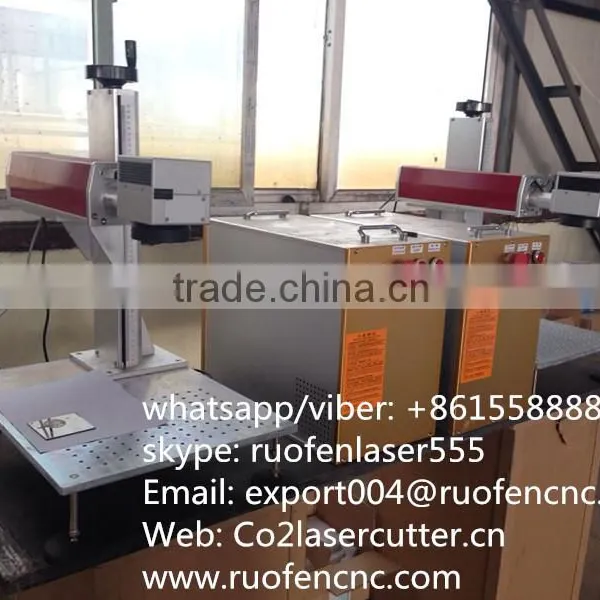

Photo of factory
Contact me!!!!!!!!
Nina
Skype: ruofenlaser555
viber/whatsapp/wechat: +8615588883151
QQ: 824214243
Our warranty:
#warranty: 2 years for the machine
#provide technical services to the door (We have professional engineers to offer machine installation commissioning and maintenance)
#replace all parts for free during the warranty period(no human damage)
# 24th technology online support (skype, yahoo, MSN)
Why choose Philicam product?
1. Philicam product is widely used in almost all the materials you can think of.
2. Philicam company is specialized in CNC Router and laser machine manufacturing and selling . There is no middle man and no agent, so the price is pretty competitive.
3. Philicam machine with high precision and excellent reputation is the most reliable product you can choose.
4. Philicam company has all kinds of machines in store, the delivery time is much shorter than other companies.
5. Philicam company has international technical service office and provides 24 hours online services and technical supports for customers.
We can offer different choices for our customers !!!
