FLDM-1325 furniture making wood carving cnc router machine for sale
Machine features of wood furniture making machine
# 1300*2500*200mm
# 9.0kw HSD air cooling spindle (world famous brand, easy to install, fast speed and fantastic performance, after-sales al over the world)
# Heavy duty body (welded by 8mm steel, with high tempwrature quenching and aging treatment to ensure high stability adn long lifetime)
# X, Y axis gear transmission, Z axis Taiwan TBI ball screw transmission (world famous brand, with grinding level, fast speed, low noise)
# Taiwan Hiwin 30 rail guide (with self-lubricating block, fast speed, low noise, can bear the strength from all directions)
# Vacuum table and vacuum pump (PVC vacuum table, economic, durable, domestic famous brand 5.5kw vacuum pump)
# Taiwan Syntec control system (world famous brand, can be used for high-configuration cnc router, 4-axis, 5- axis cnc router,
easy to control can display the parameters when operating)
# Japan YASKAWA servo motor and driver (world most famous brand, lose no step, large torque)
# Delta inverter
# Filter
Technicial parameters of wood furniture making machine
Description |
Parameter |
X,Y Working Area |
1300x2500x300mm |
Resolution |
0.01mm |
Lathe Structure |
heavy duty |
X,Y Structure |
Rack and pinion, gear drive, Taiwan hiwin square guide rails |
Z Structure |
taiwan TBI ball screw, Taiwan hiwin square guide rails |
Max. Idling Speed |
60m/min |
Spindle |
Italy HSD air-cooling 9 KW |
Spindle Speed |
0-24000r/min, variable speed |
Working Voltage |
AC380V/50Hz |
Motor and driver |
YASKAWA motor and driver |
Command |
G code (HPGL,U00,mmg,plt) |
Operating System |
Taiwan SYNTEC control system |
Cooling Mode |
Air-cooling |
Applications and samples of wood furniture making machine
ATC CNC Router is suitable for hard wood-working, cutting and engraving on rosewood for furniture, indoor decoration, MDF, and so on, with high speed and high precision.
After sale service of wood furniture making machine
Guarantee:
12 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when if any problem during the warranty period.
Before sale:
We would always be here to provide any information you need at the first time, and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs, after everything is ready, we would tell you everything goes well here;
After sale:
1) We would provide English Version working manual.
2) If you have any questions during using and maintaining, our engineers who
could speak very good English would answer you online or by calls.
3) Machine warranty is one year. So if your machine has any unintentional
damages, we would provide parts for free.
FAQ of wood furniture making machine
1. I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype.
2. If the machine has problems, what can you do to help?
Free parts will send to you within warranty time, and there are technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed.

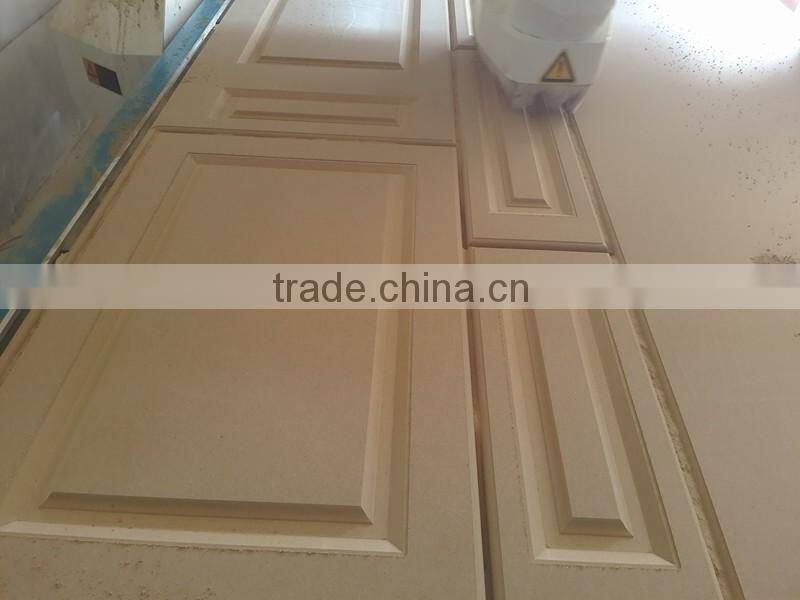

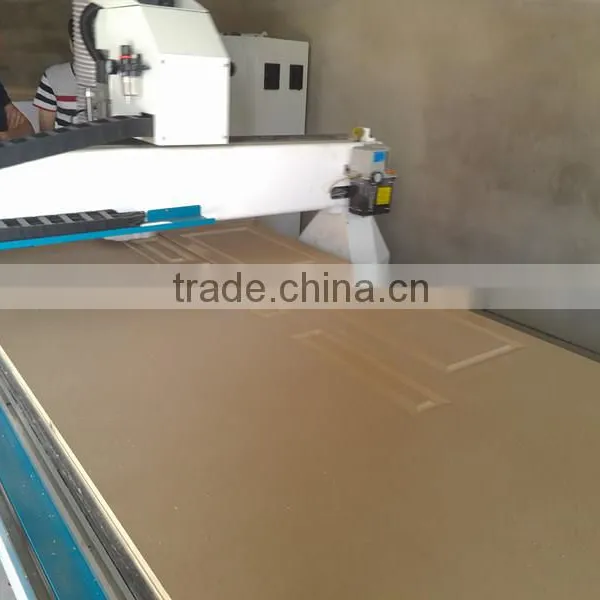

Our cnc router machine processing pictures
Packing parts of wood furniture making machine
