FLDM1325 atc cnc router for wooden door design
Advantage of atc cnc router

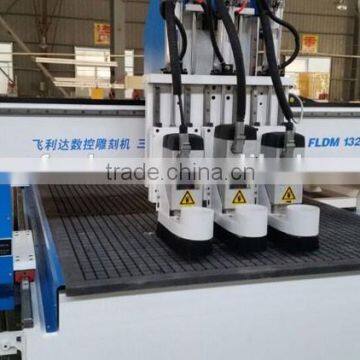

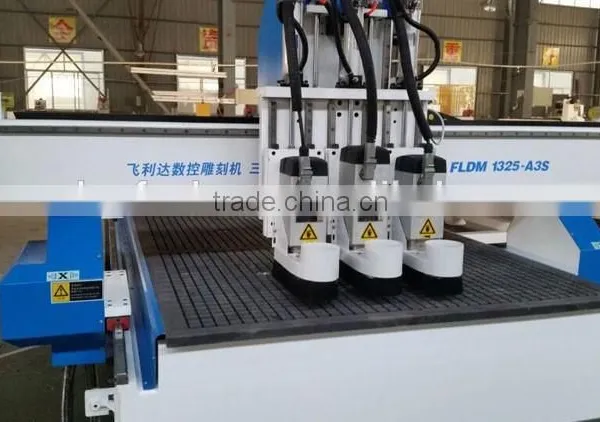

1. Three pieces spindles can work one by one automatically, so this machine can finish three different work on one board without changing tools by hands.
2. It with heavy-duty machine structure,welded by 8mm thickness steel square tube,so that it can ensures minimum distortion, excellent rigidity and powerful strength.

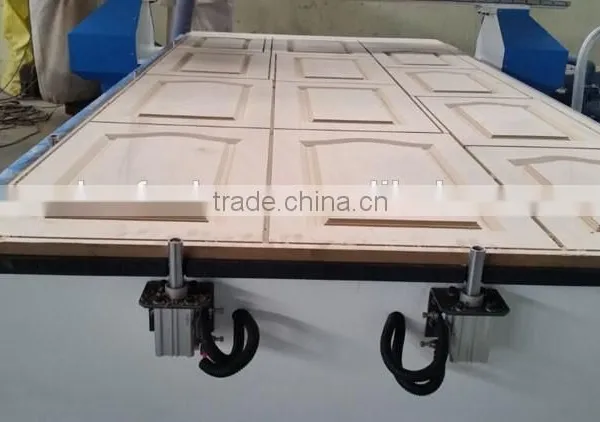

3. Position materials by 5 pcs position cylinder to improve the working efficiency.
4. Dust collection system collect the dust when the economic auto tool changer cnc router working in time.
Applications of atc cnc router
1. Furniture industry :To engrave versitile patterns on Solid wooden door,Composite door,Cabinet door,Sofa legs,bedside board,classical furniture and kinds of board furniture .
2. Decoration Industry :Decorating kinds of patterns for wall fresco,folding screen,cubic wave board,acoustic board .
3. Musical instrument :Shaping the guitar, piano,and other instruments . and the embossing on the surface of the instruments.
Features of atc cnc router
1. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.
2.Three axes adopt Taiwan Hiwin high precision square guide rails; X and Y axes adopt helical rack and pinion transmission, fast working and high efficiency , Z axis adopts Taiwan TBI ball screw,with high precision and longevity .

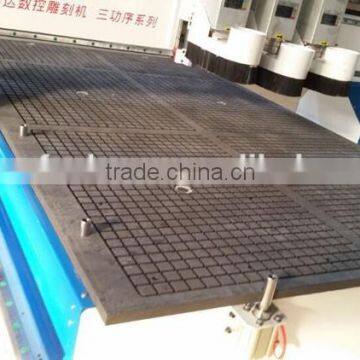

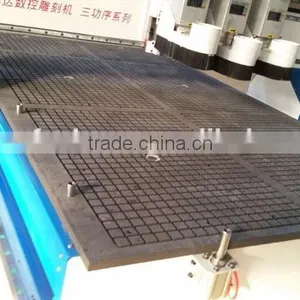

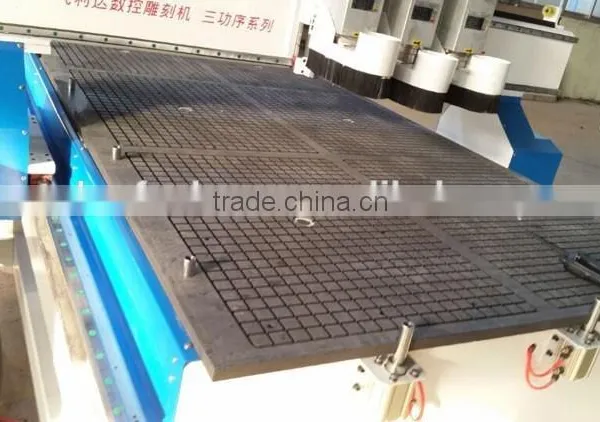

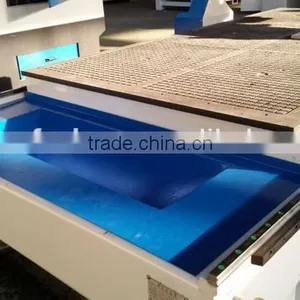

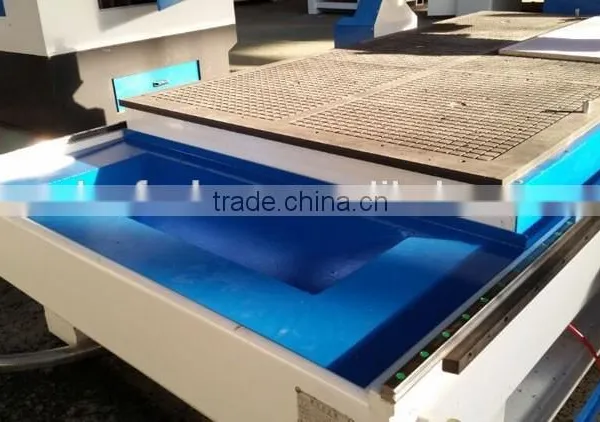

3. Vacuum table with 6 vacuum zones, which can adsorb different size materials.Vacuum&T-slot holding worktable for optional.
4. Adopting Nc Studio control system(Original),it working with computer,make the working more stable and precision.
Technical Parameters of atc cnc router
Model |
FLDM 1325 multi head cnc router |
|
|
X axis |
1300mm |
working area |
Y axis |
2500mm |
|
Z axis |
200mm |
Table structure |
vacuum suction |
|
Orbit |
HIWIN square orbit |
|
Transmission type |
X Y rack ,Z ball screw |
|
Working accuracy |
0.05 |
|
Repositioning accuracy |
0.05 |
|
Max air move speed |
50m/min |
|
Max working speed |
25m/min |
|
Spindle |
4.5kw, 3.5kw, 4.5kw air cooling spindle |
|
Spindle speed |
0-18000r/min |
|
Inverter |
sunfar inverter |
|
Drive system |
hybrid driver |
|
Motor |
hybrid servo motor |
|
software |
Artcam/type3/ucancam v9 |
|
Command code |
G code |
|
Control system |
Original Ncstudio |
|
Working voltage |
AC380V/3PH/50HZ,AC220V/50HZ |
|

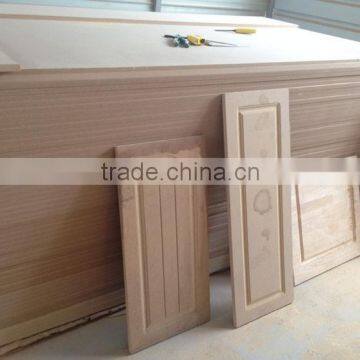

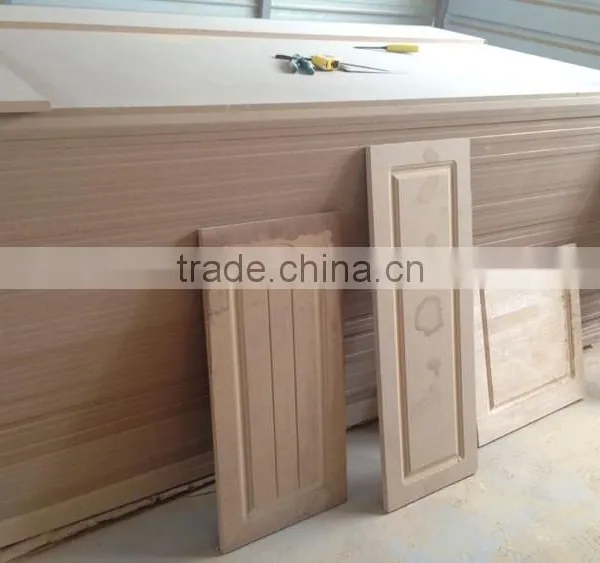

Samples of atc cnc router
Good payment term : What is Trade Assurance?
Product quality not up to the standards agreed with your supplier?
Products not shipped on time?
Paid for your order but didn’t receive the products?
With Trade Assurance, your trading problems are solved. If your products are not shipped on time or the product quality does not meet the standards set in your contract, will refund the covered amount of your payment. Trade Assurance is a free service provided by .
After sale service of atc cnc router
1. Guarantee for 1 year exluding comsumable parts. Extra fee is paid
if out of date. Any damage to the machine caused by improper use will be charged.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
