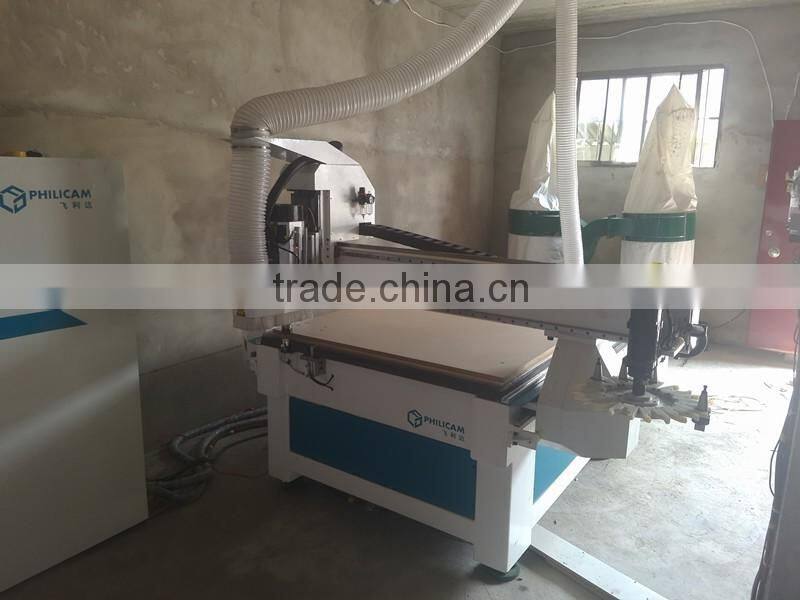

Philicam F3 Doors cabinets making wooden cnc router machine

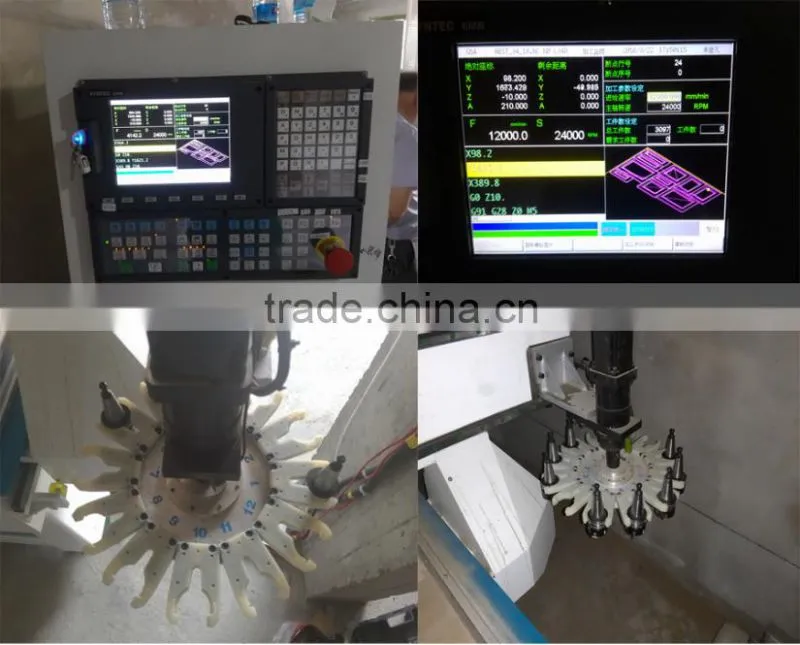

1. Circle style automated tool changer with 8 pieces of tools in total.
2. 9KW (optional) Italy made air cooling spindle, very stable and durable.
3. High torque Japan YASKAWA servo motor and driver, greater accuracy and stability.
4. Vacuum table with 6 vacuum zones, which can adsorb different size materials and has strong suction of 23
cube meters /hour.
5. Oil-injection system makes the maintenance more convenient.
6. Advanced syntec control system(optional)

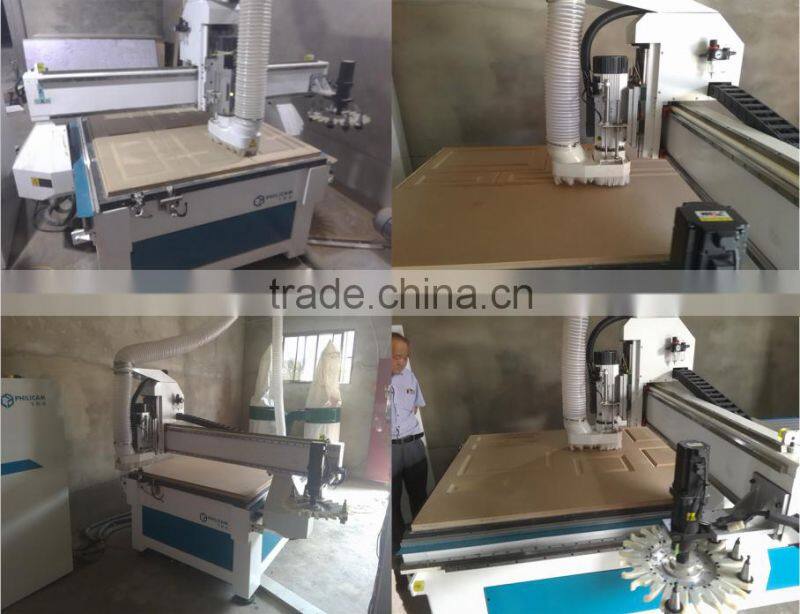

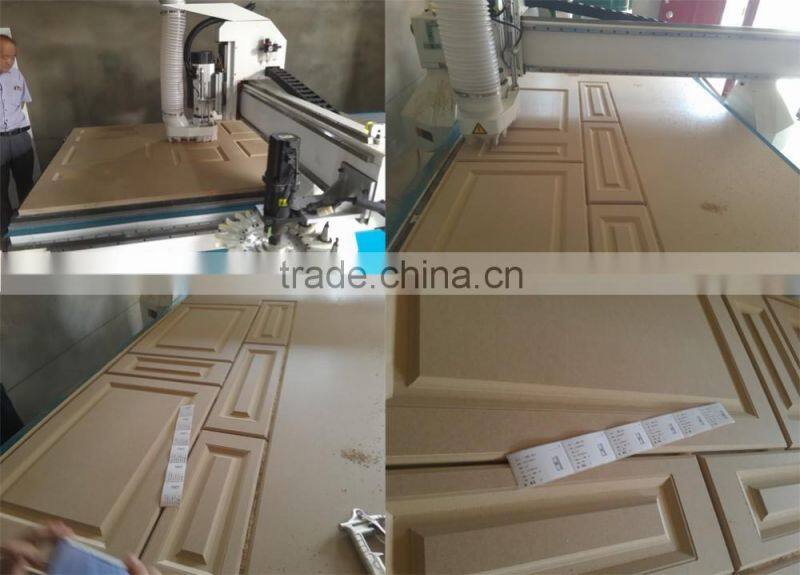

Applications of wooden door making machine
Round ATC CNC Router is suitable for hard wood-working, cutting and engraving on rosewood for furniture, indoor decoration, MDF, and so on, with high speed and high precision.

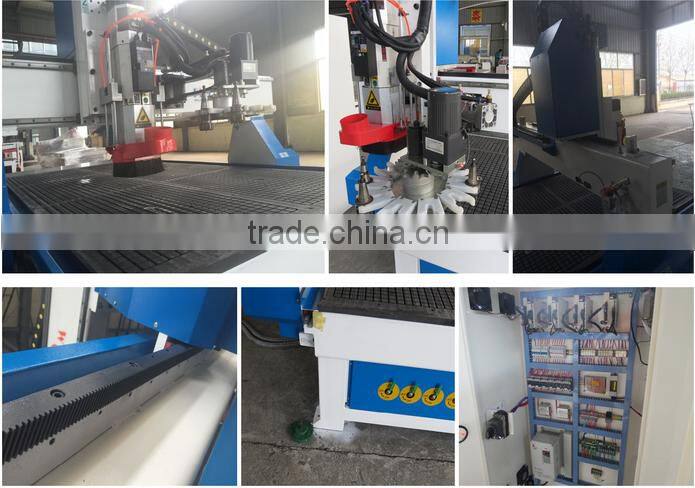

Machine Features of wooden door making machine
1. ATC spindle adopts Italy HSD 9.0kw air-cooling spindle with very good performance, fit for
long time producing in the processing line and easy maintain, fit for long time producing in the
processing line and easy maintain.

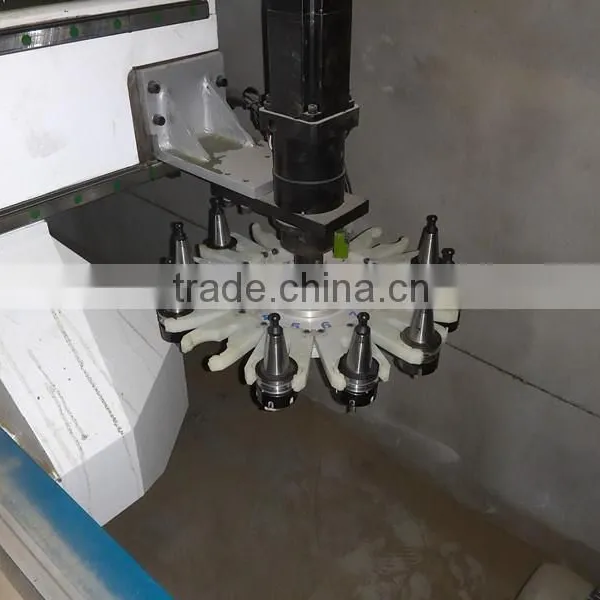

2. Taiwan original 8 tools circular ATC tool store.Tool changing time just 8 seconds. standard
original Italy ISO30 tool holder.

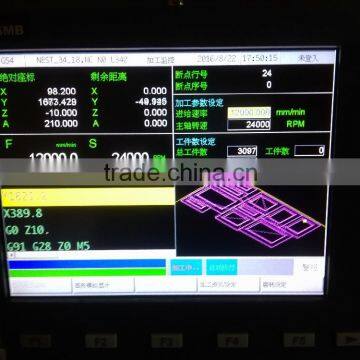

3.Taiwan Syntec controll system,good compatibility, compatible type3 /artcam /Castmate /
artcut/CAD /CAM and other design software. Can control the completion of multi-dimensional 3D processing, and can do fast, smooth, 3d processing, carving and cutting.
4. Patent design cavate vac-sorb table. There is support point under the vacuum table, made
according to Italy BIESSE, avoid after long time adsorb, the middle central part sink, or the
lateral part upwrap. The material of the vacuum table is chemsurf chemical-resistant laminate, high tenacity and non-deformed.
Model |
FLDM1325CD |
Working area |
1300X2500X300mm |
Working table |
vacuum table with vacuum pump |
Working accuracy |
0.05mm |
Repositioning accuracy |
0.05mm |
Transmission |
X and Y by rack, and Z by ballscrew |
Max. travelling speed |
60m/min |
Max. Working speed |
20m/min |
Spindle power |
9.0kw |
Spindle speed |
0-24000RPM |
Driving system |
Dalta 750w servo motor and driver |
Inverter |
Fuling 11kw |
Control system |
Syntec 6MA |

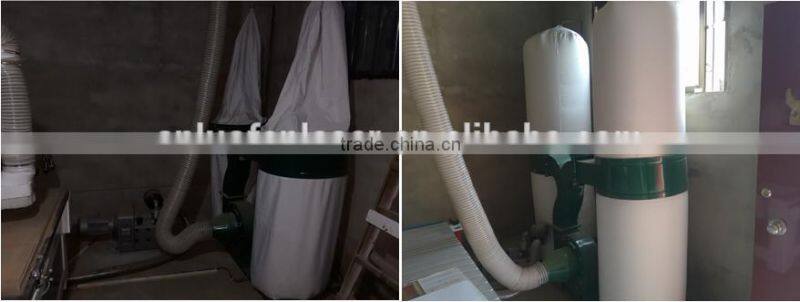

Dust collector |
Dural dust collector |
Power supply |
AC220V/50-60Hz or 380V/50-60HZ |
Command |
G code/mmg/plt/ |
Dimension |
3100*2100*2250mm |
Total weight |
Approx. 1900kg |
After-sales Service of wooden door making machine
# 18 months warranty for whole machine. English technical to door service.
# English manual and Video CD for machine using and maintenance. We offer free training in our factory, welcome to visit and learn more about our machines.
# Free accessories: Software, manual, book, cd videos, PCI control
Before sale:
We would always be here to provide any information you need at the first time, and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs, after everything is ready, we would tell you everything goes well here;
After sale:
We would provide English Version working manual.
If you have any questions during using and maintaining, our engineers who could speak very good english would answer you online or by calls.
Machine warranty is one year. So if your machine has any unintentional damages, we would provide parts for free.
If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.
Could be remote control if needed.
Payment term of wooden door making machine
Method 1. T/T
30% T/T as deposite before production,70% T/T after production and before shipment.
Method 2. Escrow of Alibaba
Third Party payment.(Need handling charges)
Method3. Western Union.
Normally, 99% of our customers choose the method 1 payment terms.
anything need I help, please feel free to contact me
Whatsapp and phone number :+86-18615250502
skype and mail :export001(@)
