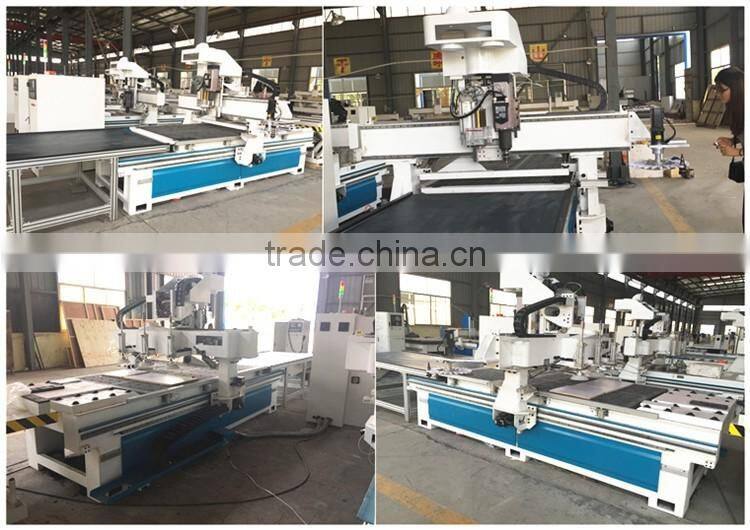

Philicam Cheap price automatic 3d wood nesting carving cnc routing milling machine for wooden
Specifications
This Panel Furniture Processing CNC Working Center is designed with the high production shop in mind, based and compatible with Cabinet Vision
and other standard cabinet design programs and all popular CAD/CAM programs.
The customer is able to streamline the material handling, CNC routing, and offloading operations, seamlessly and efficiently

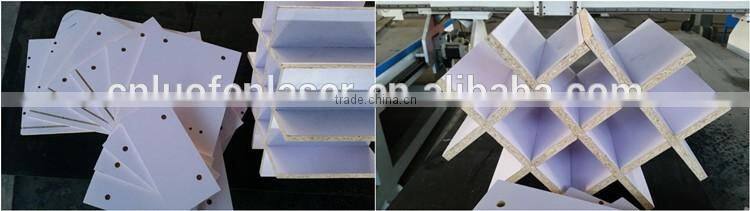

Samples
Main Features
♦ Working area: 1300*2500*300mm
♦ Heavy duty structure with 8mm thickness steel
♦ Original Taiwan Syntec the best controller
♦ Tool changer type: Disk tool changer
♦ Italy 9.0kw air cooling spindle with auto tool change
♦ Italy Fam drilling head with 5x4
♦ Auto feeding system by cylinder and up down table

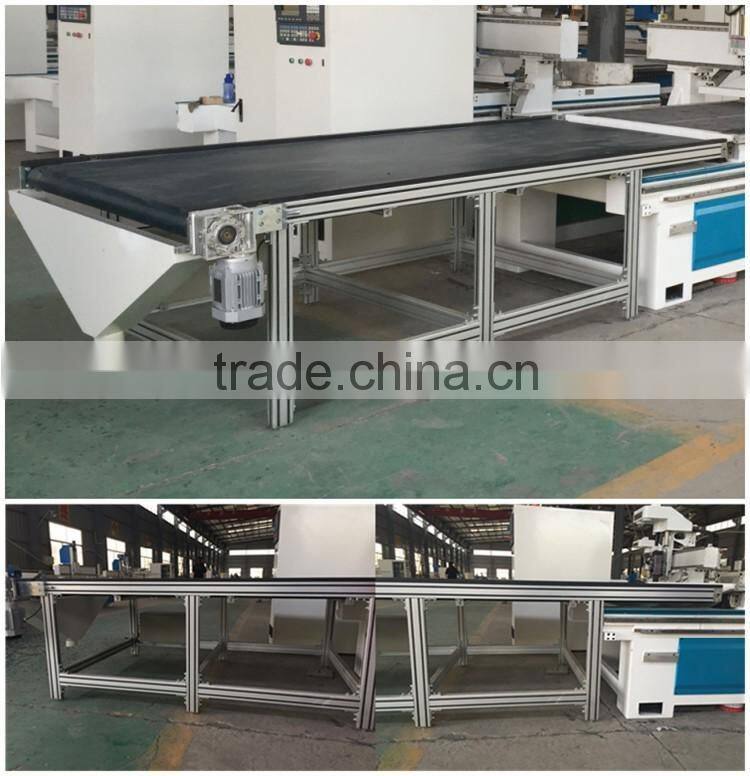

♦ Belt auto collecting device for finish product
♦ Japan servo motors and drivers with reducers
♦ Delta inverter from Taiwan
♦ Schneider Electronics from France
♦ Omron limited switch from Japan
♦ T-slot & vacuum combination table
♦ Taiwan TBI ball screw
♦ Professional tool box
♦ Auto oil injection system
♦ Tool sensor
♦ Powder coating technology to avoid damage
Technicial parameters
Series |
FLDM 1325 |
Travelling size |
2500*1300*300mm |
Working size |
2440*1220*300mm |
Table size |
2840*1650mm |
Loading and Unloading Speed |
15 m/min |
Transmission |
X/Y rack and pinion drive, Z ball screw drive |
Table structure |
Vacuum |
Spindle power |
9.0 KW |
Spindle speed |
24000r/min |
Travelling speed |
80m/min |
Working speed |
25m/min |
Tool slots |
16 |
Driving system |
Taiwan Delta |
Voltage |
AC380/3PH/50HZ |
Controller |
Syntec/OSAI/NC-Studio |
Machine parts

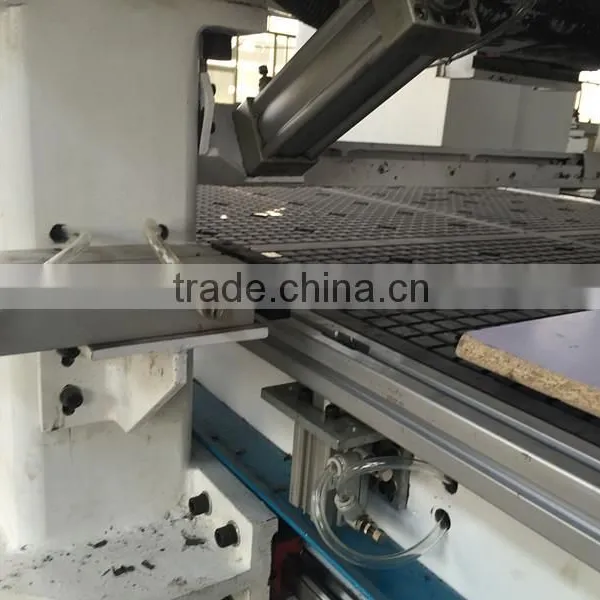

The cylinders on cabinet door making machine table for holding wood materials automatically. If there is no wood on the drilling and cutting table, the cylinders will go along with the gantry to hold the wood piece on up down table. Thus realize auto feeding system.

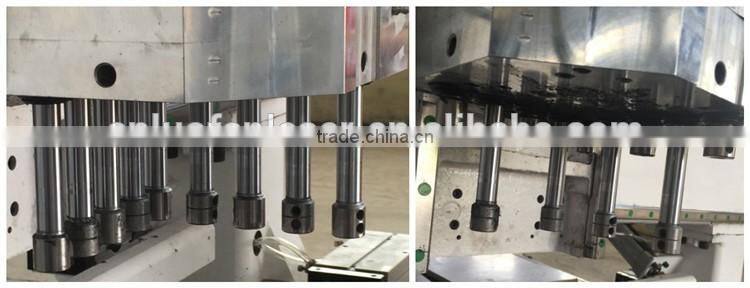

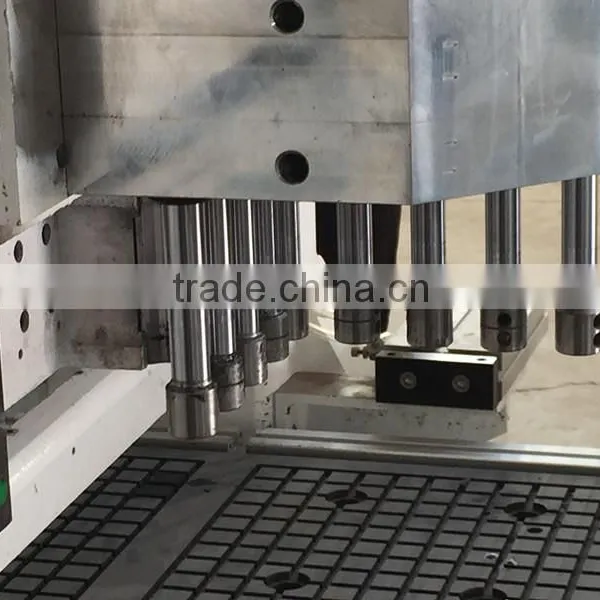

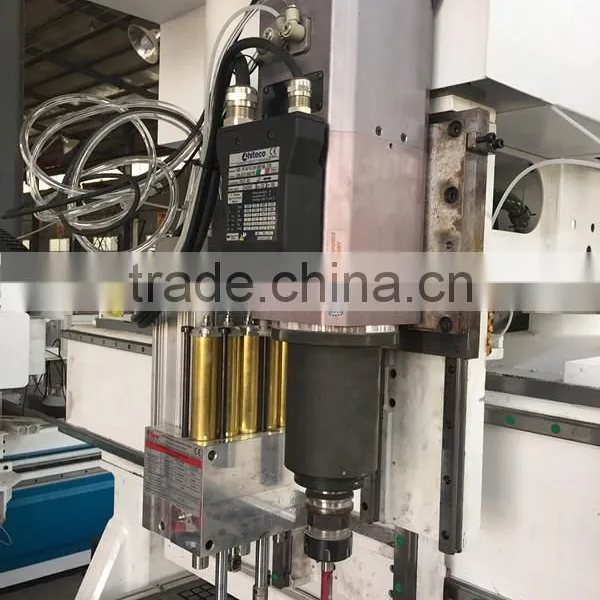

Italy FAM 9 pieces drilling tools for holes. As we know the some parts of the cabinet furniture needs to drill holes for joint. So this cabinet door making machine is not only with cutting head, it alsa has the drilling head. So it could accomplish the whole process of cabinet furniture making. It could allow people to produce wooden cabinet furniture in a large amount with high effeciency and much convenience

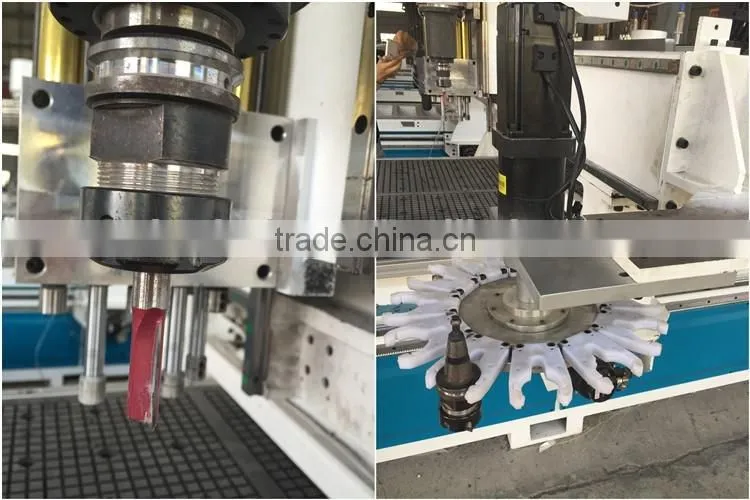

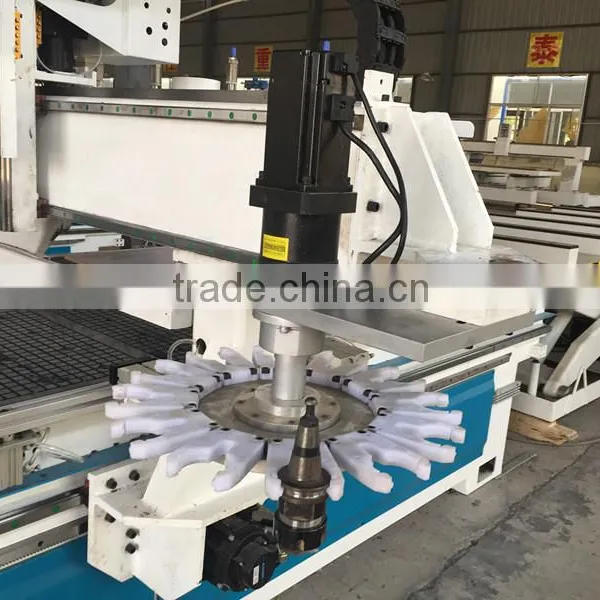

Name: Disc tools changer 6/8/10 pieces
Brand: Hiteco
Original:Italy

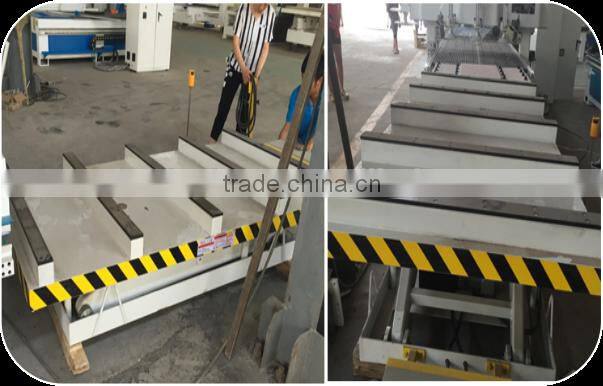

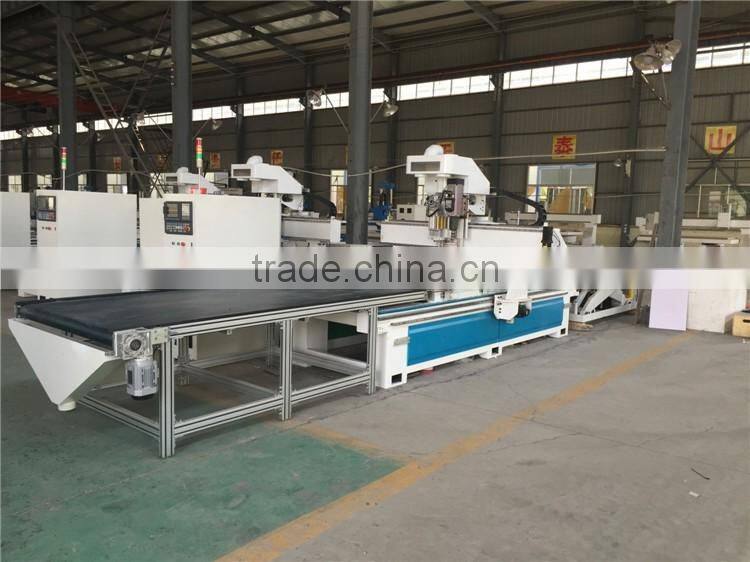

automatic loading and unloading platform

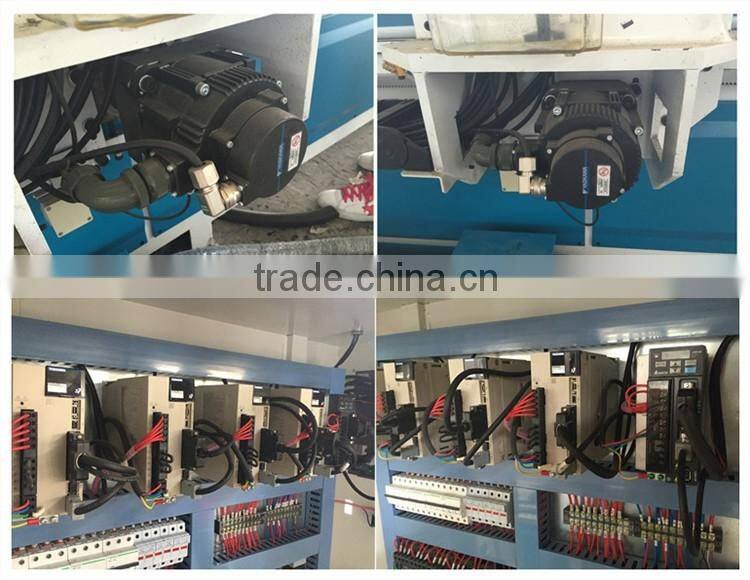

The driver system is using high quality Japanese YASKAWA Servo motor System. Servo motor and driver is more smoothy and accurate as we know. It could keep high precision when cabinet door making machine cutting and moving

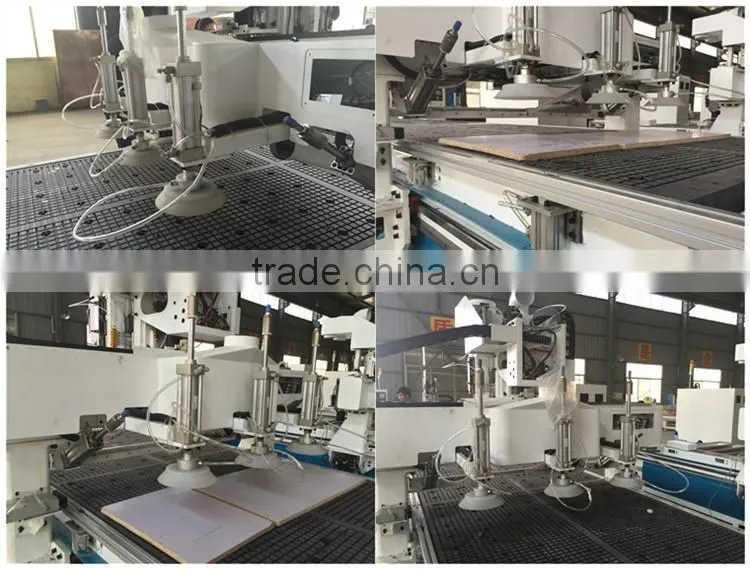

The material sheet is safely and accurately guided onto the CNC platform by the gantry using retractable guide rails and stops on the table.
Once the sheet is placed, the operator turns on the vacuum hold down and starts the cut cycle for the CNC to execute.
After the sheet is fully processed, it is then pushed off to a conveyor table at the front end while another sheet is simultaneously loaded from the rear of the machine again

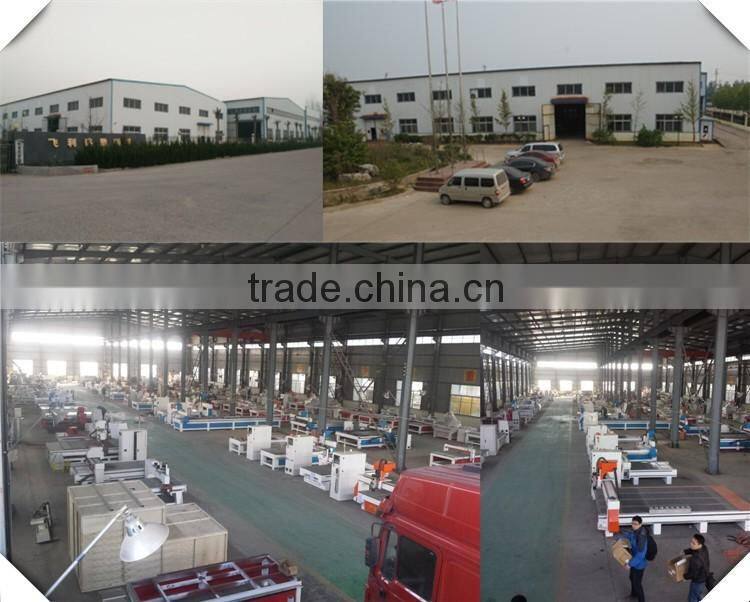

Our company advantage--why choose us?
1.We specialized in the production and sales of wood cutting machine
2. We are gold suppliers of Alibaba
3. We have a professional sales and service team
4.Our products, quality guarantee,CE certificate, they are exported to many countries around the world,
Such as USA. Canada. Egypt. Australia. Algeria. Cambodia. India, Poland, Greece and so on
Packing parts
anything need I help, please contact me
whatsapp :86-18615250502
skype and mail :export001(@)
wechat and QQ :919569070
