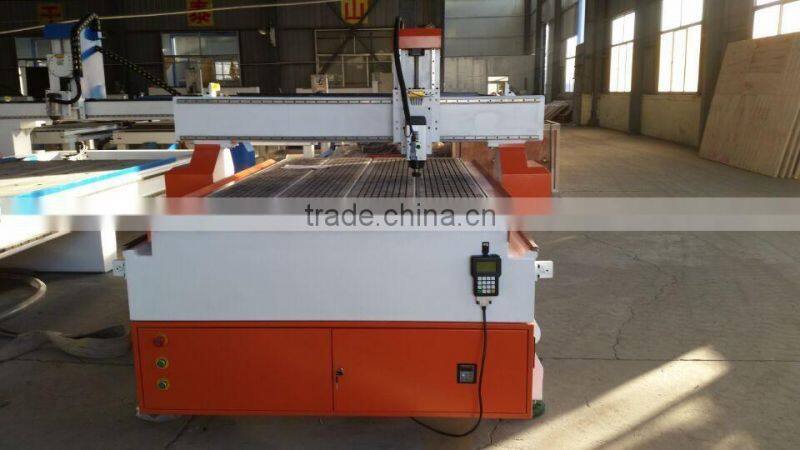

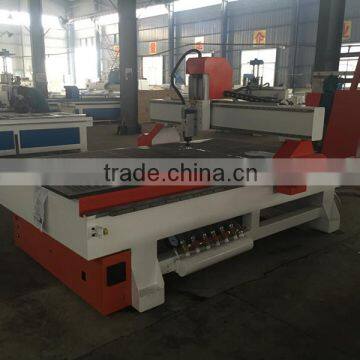

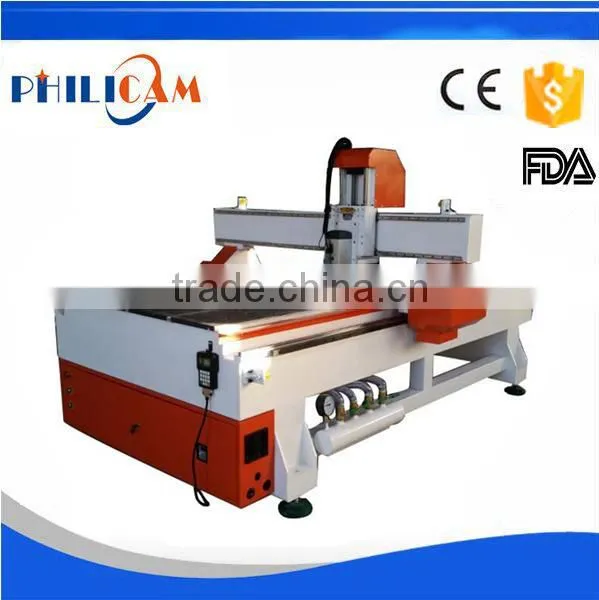

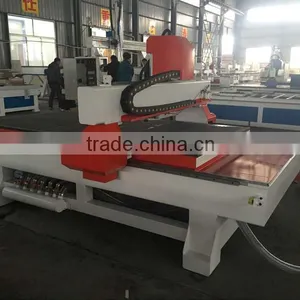

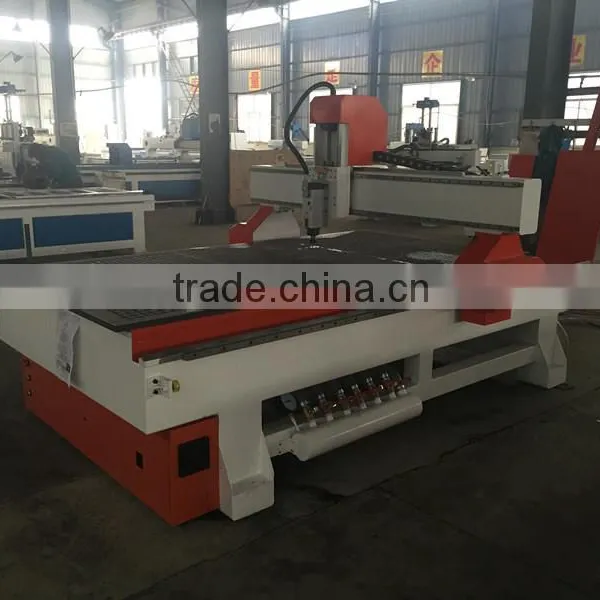

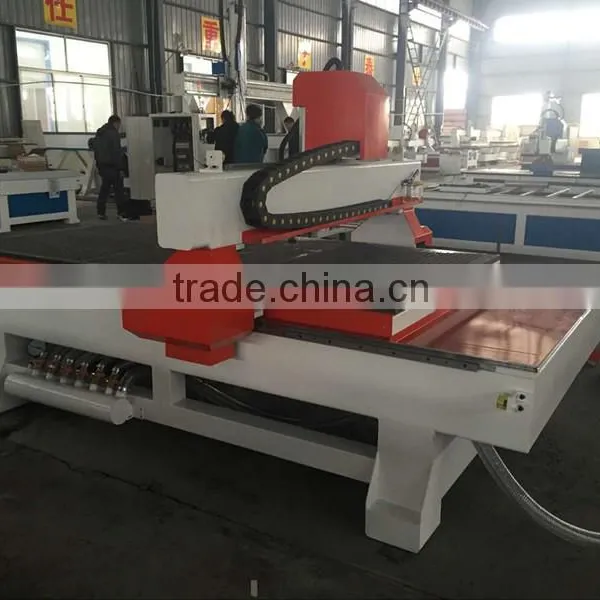

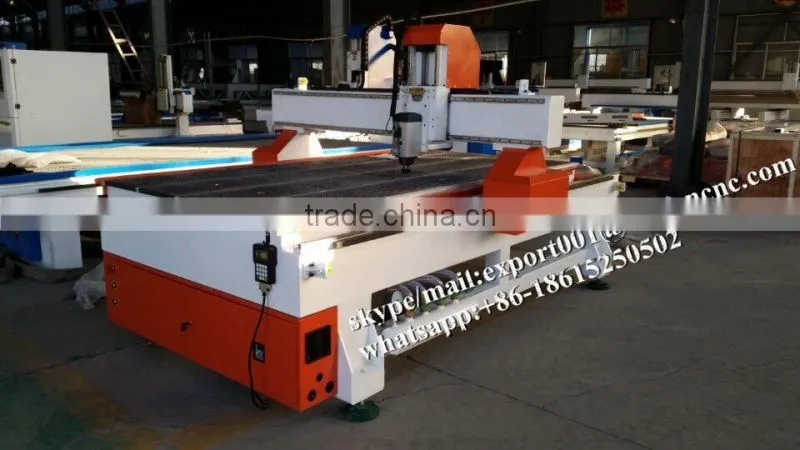

Philicam 1325 Wood Cnc Router for mdf door engraving machine
Machine features
1) T-slot table and vacuum table can fix materials of different sizes effectively
2)Taiwan TBI balls screws, HIWIN square guide rails, high precision, large load
bearing and stable running.
3) Gantry-travelling, sturdy, reliable and stable, non-deforming, high locating accuracy.
4) Y axis use servo/stepper motor drive, select matching to ensure smooth movement.
5) DSP control system, with U disk available and not need computer ( can be completely
off-line operation. ), provides high independence and great convenience for operation.
Also have MARCH3 NC-Studio for your choice which is control by computer.
6) Unique ability to save several point of origin on several workpieces.
7) No engraving saw-tooth, smooth undersurface, legible contour, by high-power spindle.
8) Auto seeking original point system, a good way to improve the working effeciency.
9) Large compatibility of drawing software, such as Type3, artcam and some otherCAD
or CAM.
Technical Parameters
Working Area(XYZ) |
1300x2500x200mm |
|
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
X,Y,Z Repositioning Accuracy |
±0.03mm |
Table Surface |
T-slot table and Vacuum table |
Frame |
steel |
X,Y,Z Structure |
XY rack transimission, Z axis TBI screw transmission |
Max. Rapid Travel Rate |
35000mm/min |
Max. Working Speed |
25000mm/min |
Spindle Power |
3.0kw air cooling spindle power |
Spindle Speed |
0-24000RPM |
Working Voltage |
AC220V/50/60Hz |
Command Language |
G Code |
Computer Interface |
USB |
Flash Memory |
128M(U Disk) |
Collet |
ER20 |
X,Y Resolution |
<0.01mm |
Software Compatibility |
Type3/UcancameV9 Software(Option: Artcam Software) |
Control system |
DSP |

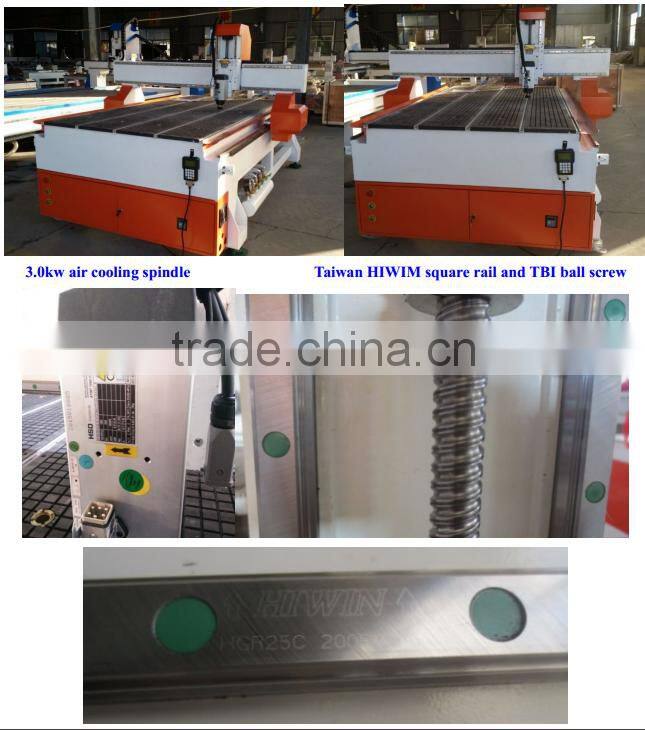

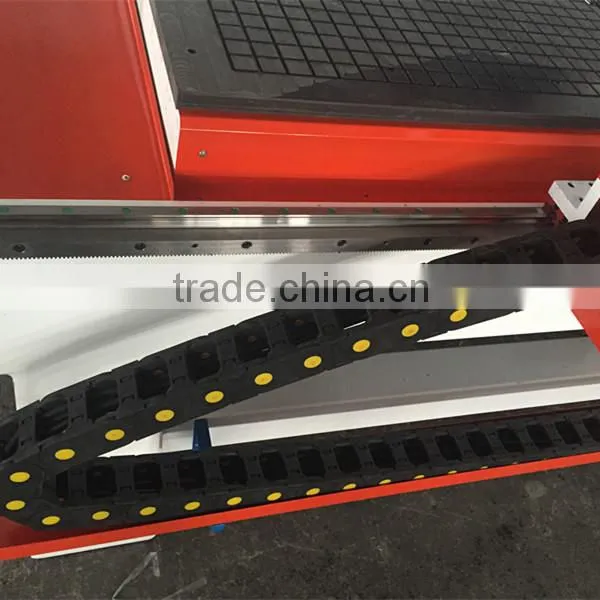

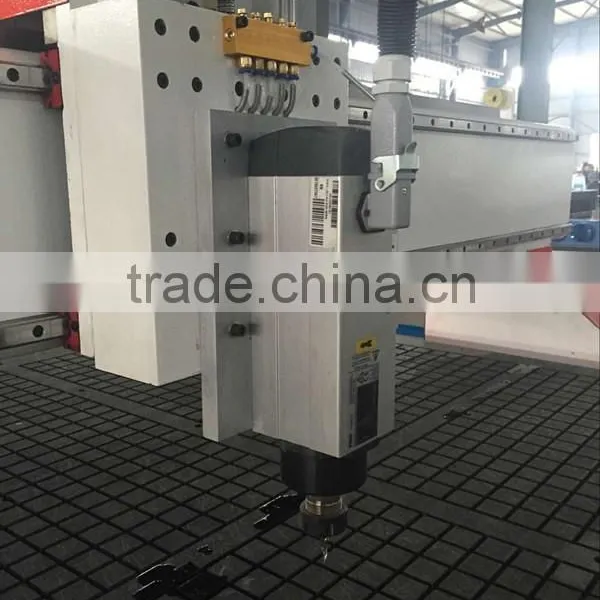

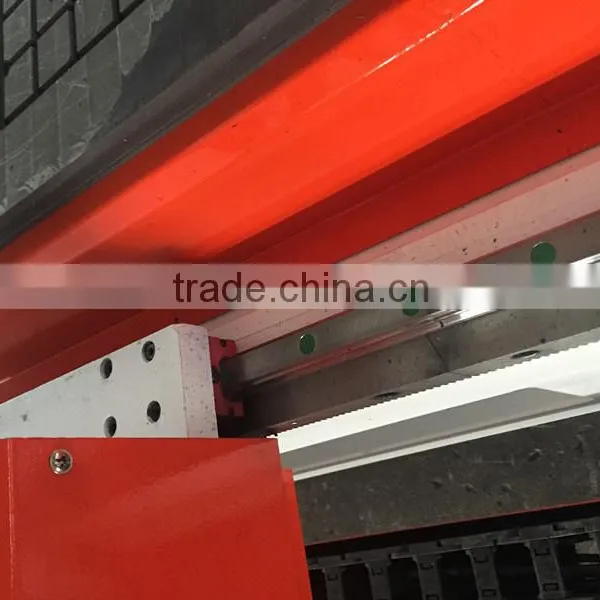

Machine Parts
Applications
Woodworking: wood panel, three-dimensional wave board processing screen, handicraft fan window processing. Cutting, engraving, routing, drilling on cabinet doors, solid wood door, complex wood door, Paint-free door.
Other Industry: make building models, wood mold, air wooden mold, propeller, automotive foam mold. Shaping three-dimensional surfaces such as violin, musical instruments and so on

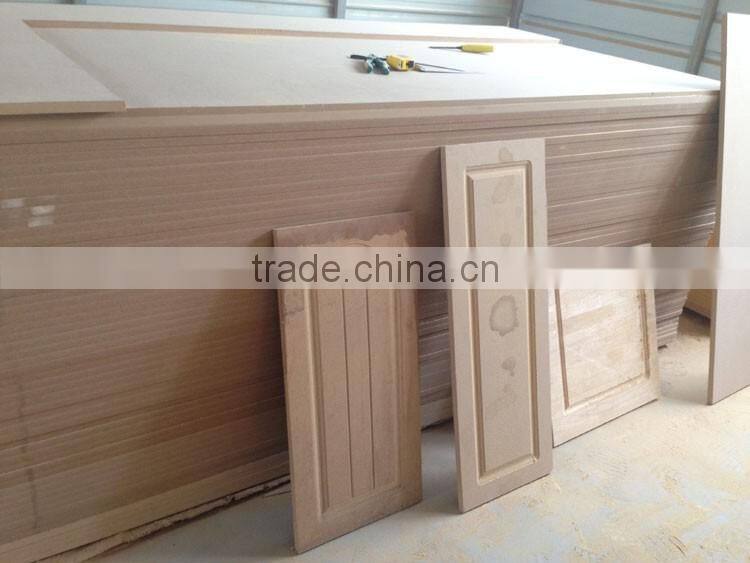

Samples
Packing parts
1. Lead time: Within 7-12 working days after receiving payment.
•For standard machines, it would be 7-12 working days;
•For non-standard machines and customized machines according to our clients'
specific requirements, it would be 12 to 21 working days.

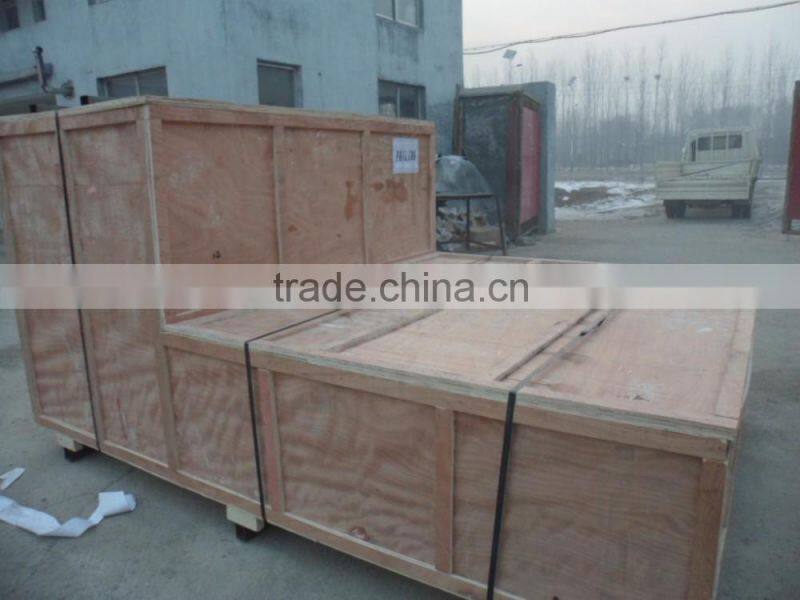

2. Packing: Standard Ply-wooden case for exporting, non fumigation.

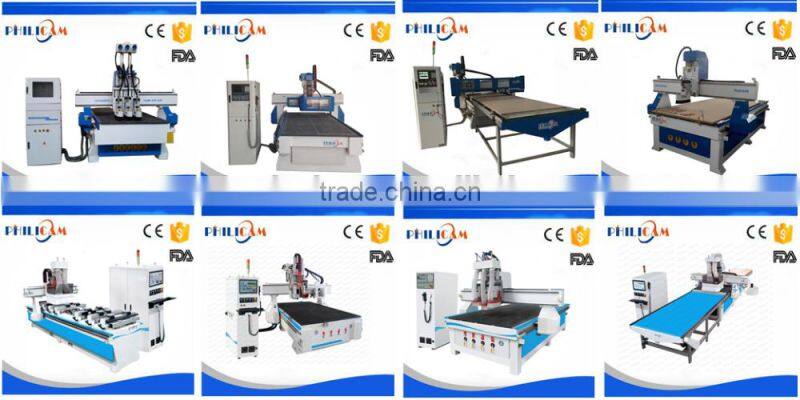

Other Hot Sale CNC Router Machine
After service & warranty
#. Guarantee for 1 year for the whole machine excluding consumable parts. Extra
fee is paid if out of date. Any damage to the machine caused by importer use will
be charged.
#. 18-hour technical support Internet or by E-mail, Skype, Telephone, free instructions
and problem solving, we also can make remote control for you.
#. Free installation and fully test before sending and free training for operators.
#. We provide English operation manual and video to help you to learn the machine
Q1 : I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using cnc router,then
let us give you perfect solutions and suggestions.
Q2: When i got this machine, but i did not know how to use it.What should i do?
We will send video and english manual with the machine.If you still have some
doubts, we can talk by telephone or skype.
Q3: If some problems happend to this machine during warranty period,what should
i do?
We will supply free parts in machine warranty period if machine have some
problem.While we also supply free after-service forever,so any doubts,just us
know,we will give you solutions in 30 minuts.
Q4: What is the MOQ?
MOQ for our products is 1 set machine,we could send it to your country if you tell detail information about your country port.
please do not hesitate to contact me
whatsapp and phone number :+86-18615250502
skype and mail :export001(@)
