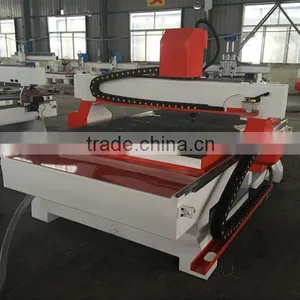

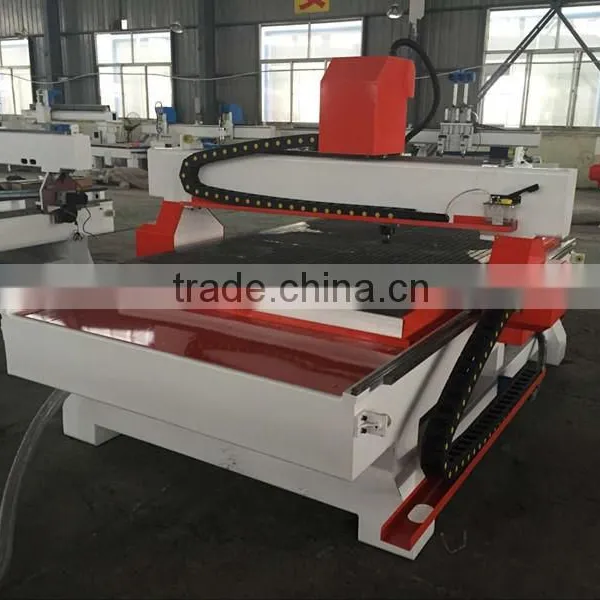

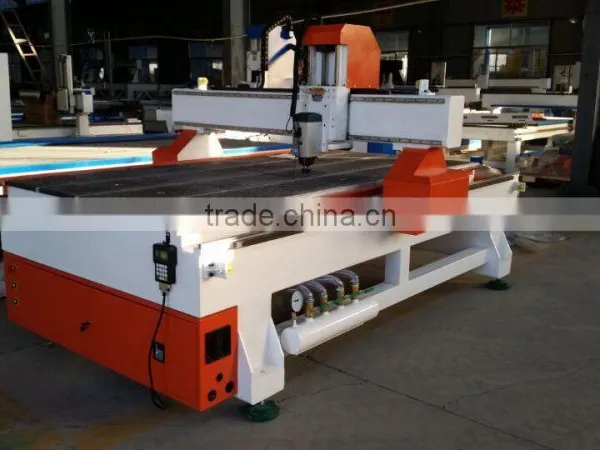

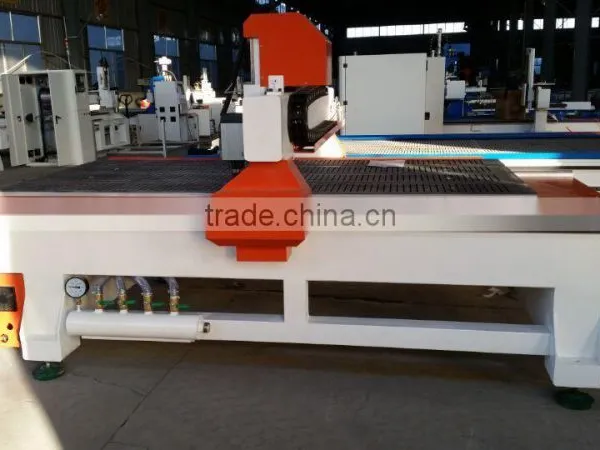

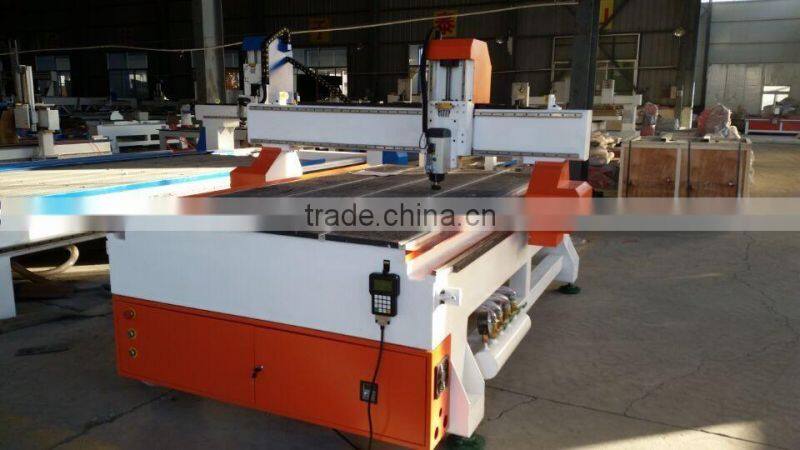

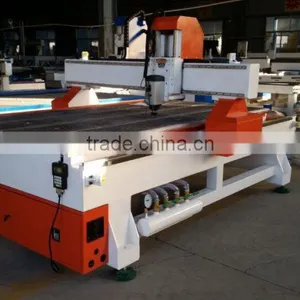

Philicam cnc wood carving machine cnc 1325 wood cutting machine
Description |
Parameter |
X,Y,Z working area |
1300x2500x200mm |
Table size (mm) |
1450×2940mm |
Resolution |
±0.03/300mm |
Repeatability |
±0.03mm |
Table Structure |
T-slot and vacuum table |
X,Y structure |
Rack pinion, Hiwin linear rails |
Z structure |
Taiwan TBI Ball screw, Hiwin square rails |
Rated power |
3Kw (without spindle) |
Max. rapid |
33000mm/min |
Max. Working speed |
25000mm/min |
Spindle power |
3.0 KW |
Spindle speed |
0-24000RPM |
Working mode |
hybrid servo |
Working voltage |
AC380V/50/60Hz,3Ph(Option 220V,3Ph) |
Command code |
G code |
Operating system |
NK105 DSP |
Interface |
USB |
Memory |
128M |
Tool holder |
ER25 |
X,Y working accuracy |
<0.03mm |
Software |
Artcam ,Type3 UcancameV9, |
Working temperature |
Temperature:0 degree-45 degree Humidity:30%-75% (No Condensation) |
Machine features

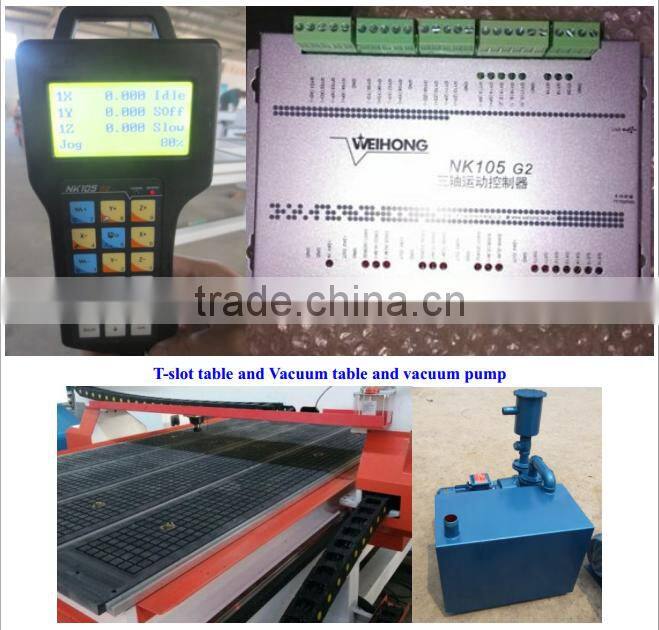

1) T-slot and vacuum table can fix materials of different sizes effectively
2)Taiwan TBI balls screws, HIWIN square guide rails, high precision, large load bearing and stable running.
3) Gantry-travelling, sturdy, reliable and stable, non-deforming, high locating accuracy.
4) Y axis use servo/stepper motor drive, select matching to ensure smooth movement.
5) DSP control system, with U disk available and not need computer ( can be completely off-line operation. ), provides high independence and
great convenience for operation. Also have MARCH3 NC-Studio for your choice which is control by computer.
6) Unique ability to save several point of origin on several workpieces.
7) No engraving saw-tooth, smooth undersurface, legible contour, by high-power spindle.
8) Auto seeking original point system, a good way to improve the working effeciency.
9) Large compatibility of drawing software, such as Type3, artcam and some other CAD or CAM.
Applications
in furniture industry, furniture decoration industry, woodworking decoration industry, musical instrument industry, wooden crafts industry, etc.
And this machine is suitable for large area plate engraving, solid wood furniture engraving, solid wood art murals carving, MDF carving and cutting, etc.
Woodworking Industry: stereo wave board processing, wooden door, various furniture product auxiliary processing.
Advertising Industry: Advertising label, PVC plate, PCB board (drilling and engraving), Double color boards, logo production, acrylic cutting,
plastic suction for making advertising dedication, word cutting, sign making, crystal word, LED display screen, kinds of doorplate, nameplate and so on.

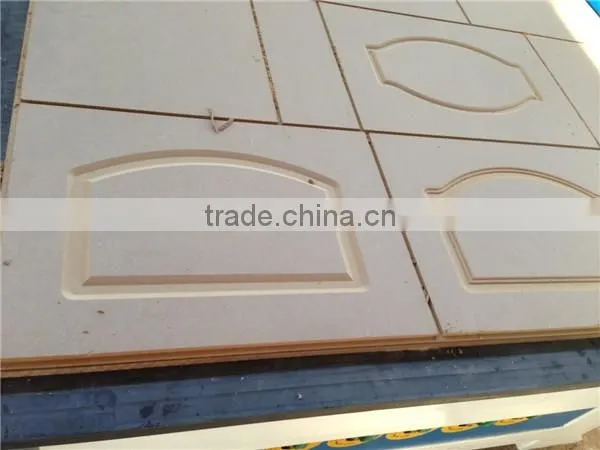

sample :
hot machine :
Packing parts
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading. woodworking cnc router machine

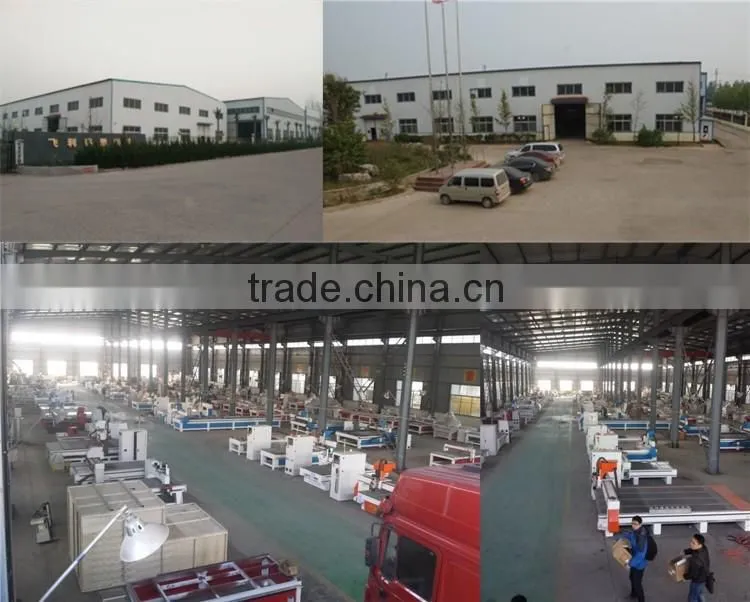

Philicam cnc company Introduction
Philicam cnc company located in Jinan city, Shandong province. We are a professional and good reputation manufacturer of
CNC router,laser engraving machine, laser cutting machine, laser marking machine in China to the new and existing
customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world
and the machines has passed the EU CE certificate.The aim is to continuously upgrade the technique, to help
our customers produce the best quality and high precision products.
anything need I help, please feel free to contact me
whatsapp and phone number :+86-18615250502
skype and mail :export001(@)
