FLDM1325 heavy duty cnc wood router cheap for cabinet door
- 200 Set / Sets per Month
- qingdao
- T/T Credit Card
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | PHILICAM | Model Number: | FLDM1325 | Voltage: | AC380V/50HZ |
Power(W): | 4.5kw air cooling spindle in middle; 2 x 3.5kw air cooling spindle | Dimension(L*W*H): | 1300*2500*200mm | Weight: | 2000KG |
Certification: | CE | Warranty: | 1 YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
FLDM1325 heavy duty cnc wood router cheap for cabinet door
why choose us-- advantage
this is pneumatic heads wood cnc router,use top quality components for the machines, like Italy HSD spindle, Taiwan Delta Inverter,
Delta Servo motor (Japan Panasonic, Yaskawa are optional), German Becker Vacuum pump,
Taiwan Hiwin linear and so on, to keep the machine in the best condition even after many years working.
Machine features
1.Philicam 1325 three processes is an intelligent economic ATC
equipment. It can auto-complete multi-process machining through three
separate spindle automatic switching.
2. Tool change type: spindle instant switch.
3. Drive system adopts imported servo motor, control system adopts imported Original Ncstudio system
4. Main parts are high stability imported parts.
5. A variety of sizes models are available to choose

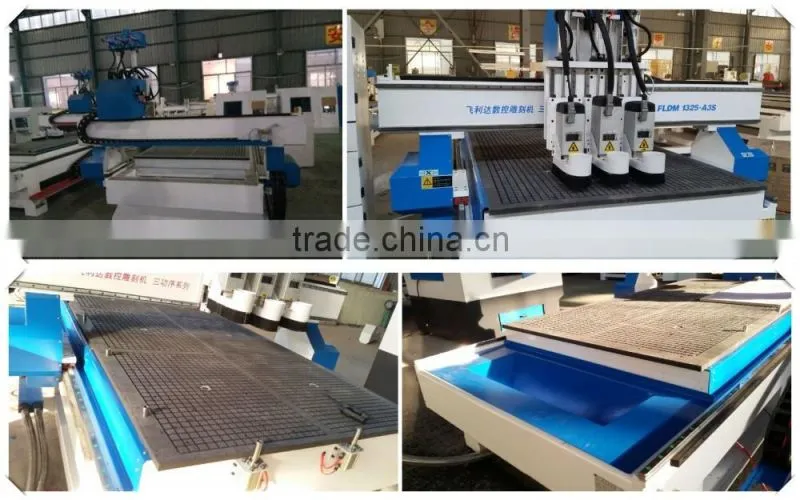

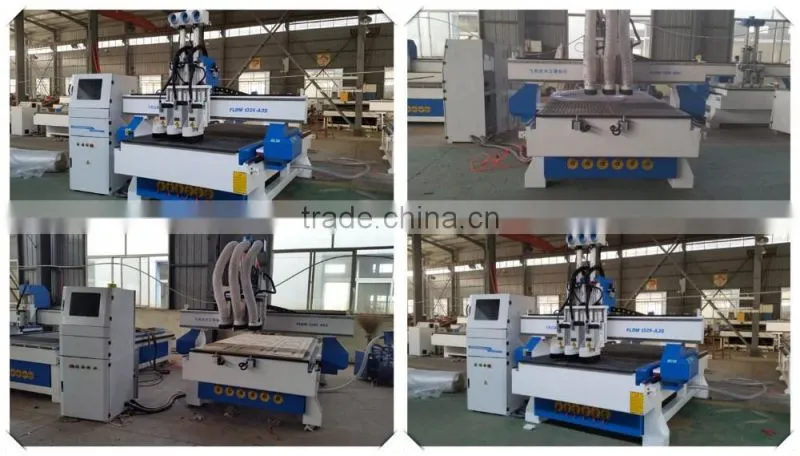

Machine Samples
three spindles cnc router can do cabinet door, wood furniture, windown, TV cabinet ect
Technicial parameters
1 | X/Y/Z Axis working size | 1300*2500*200mm |
2 | Feeding height | 200mm |
3 | X/Y/Z Axis reposition accuracy | +/-0.02mm |
4 | Max running speed | 50m/min |
5 | Max working speed | 30/min |
6 | X/Y Axis transmission | Gear and rack |
7 | Z Axis transmission | Ball screw |
8 | Guide rail | Taiwan HIWIN square guide rail |
9 | Working table | Vacuum absorption table |
10 | Spindle power | 4.5KW air cooled spindle in middle, 3.5kw *2 in two side |
11 | Max spindle speed | 18000rpm |
12 | Collet | ER32(3-20mm) |
13 | Control system | Original Ncstudio system |
14 | Driver system | hybrid servo motor |
15 | Working voltage | 380v/50HZ |
16 | Gross weight | 1300KGS |
17 | Command | G code |
Working video link of Three spindle ATC cnc router
Payment Terms
1. 30% T/T in advance, balance paid before delivery (FOB).
2. Support Alibaba payments, Paypal payment, west union, and TT(Bank transfer)
We accept various payment. If you have other payment, please tell us, we're glad to do it for
you, for your convenience.
Transport
1.From Jinan, Shandong to Qingdao Port.
2. From Qingdao Port to your destination port by sea.
3. If you want other transport, please tell us, we're glad to do it for you, for your convenience
Quality control
1. After order, engineers discuss manufacturing procedure.
2. Every component and part elaborately selected and assembled, making sure minimum
breakdown rate.
3. 48 hours continuous test of the machine before leaving the factory
Packing Parts
