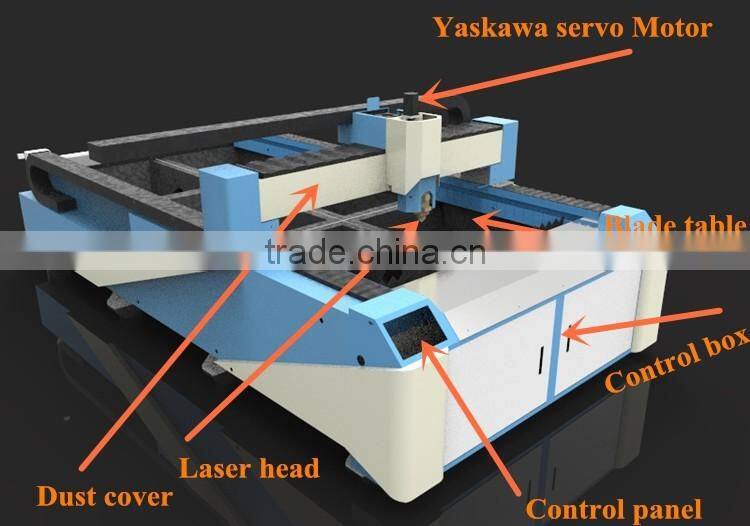

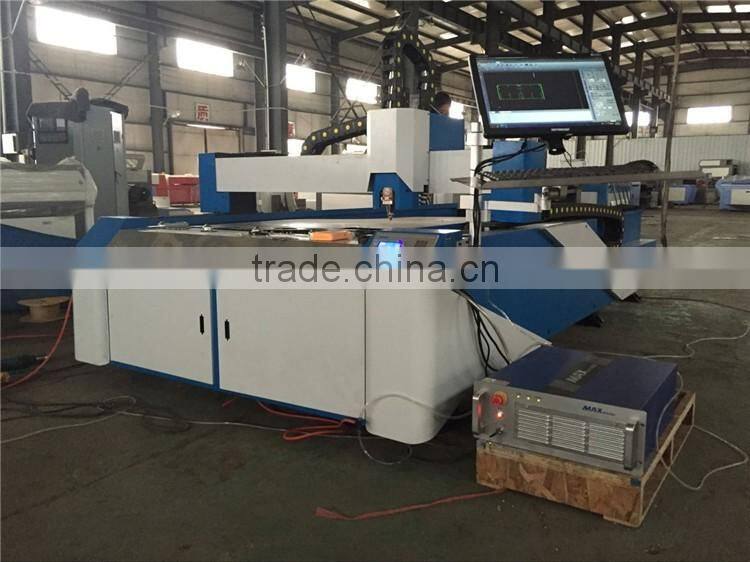

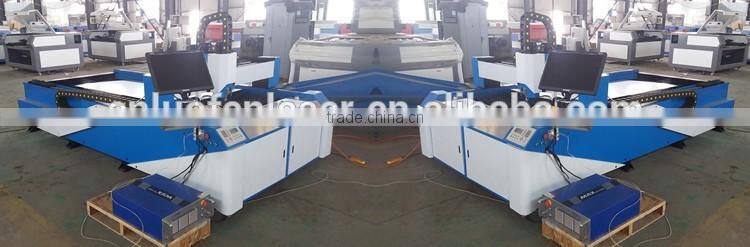

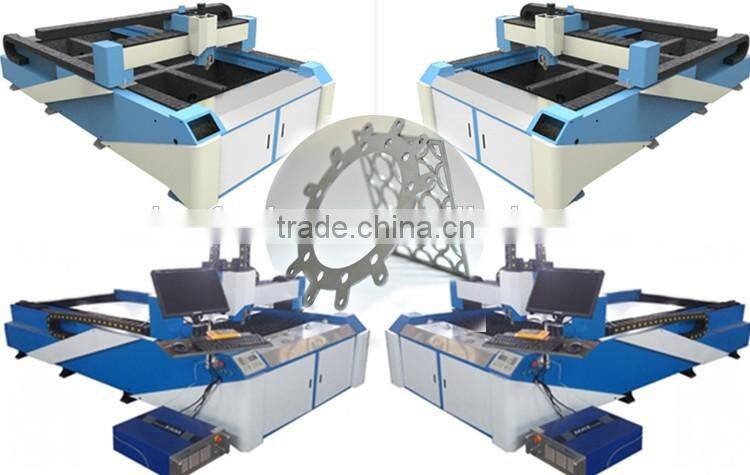

PHILICAM Cnc Fiber Thin Metal Laser Cutting Machine

# Working area: 1300*2500mm

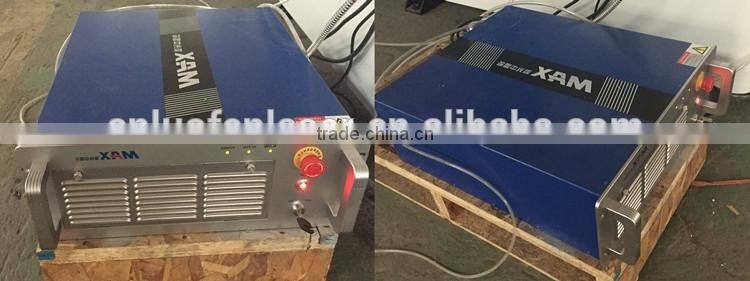

# Laser power Fiber 200w MAX laser

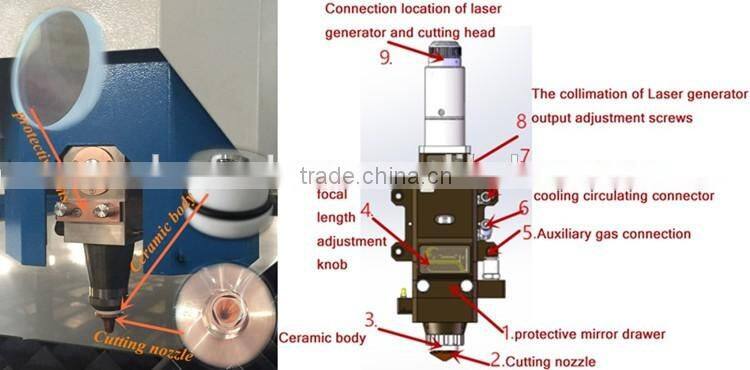

# Wanshunxing laser cutting head

# Cooling system: water chiller

# air compressor

# Red point, auto focus, follow-up system

# X axis Y axis HIWIN linear square rail from Taiwan

# TBI Ball screw from Taiwan

# YASKAWA Servo motor and drivers from Japan

# Imported Lenses and mirror

# controller: cypcut

# software: cypcut

# supports format: DXF,DXP, NC, G, etc

# 380V/ 50HZ

Series Model:

1. 1325 laser cutting machine for metal (cutting area:2500X1300mm)

2. 1530 laser cutting machine for metal (cutting area:3000X1500mm)

Attention:

1. Device during use should be checked regularly, especially the protective lens (3--6 days)

2. During cutting sparks splashes will stay to the cutting noozles should be kept clean so as not to affect the following system accuracy)

3. Pay attention to piercing way when cutting different sheet metal, inappropriate perforation mode will damage the laser head and lens.

4. Machine should be strictly grounded. Grounding resistance <4Ω.

5. Water-cooled machine should change the coolant liquid every 15-20 days

6. When cutting with compressed air ,the water and utility inside air compressor must be filtered clean to avoid contamination of lens.

7. Prohibit to cut without ventilation conditions

8. To clean up dust and debris in the control cabinet, to make sure the screws are not loose every 30 days .

9. Brush lubricants of rack rails in every 30 days.
